REMOTE CONTROL TYPES AND APPLICATIONS

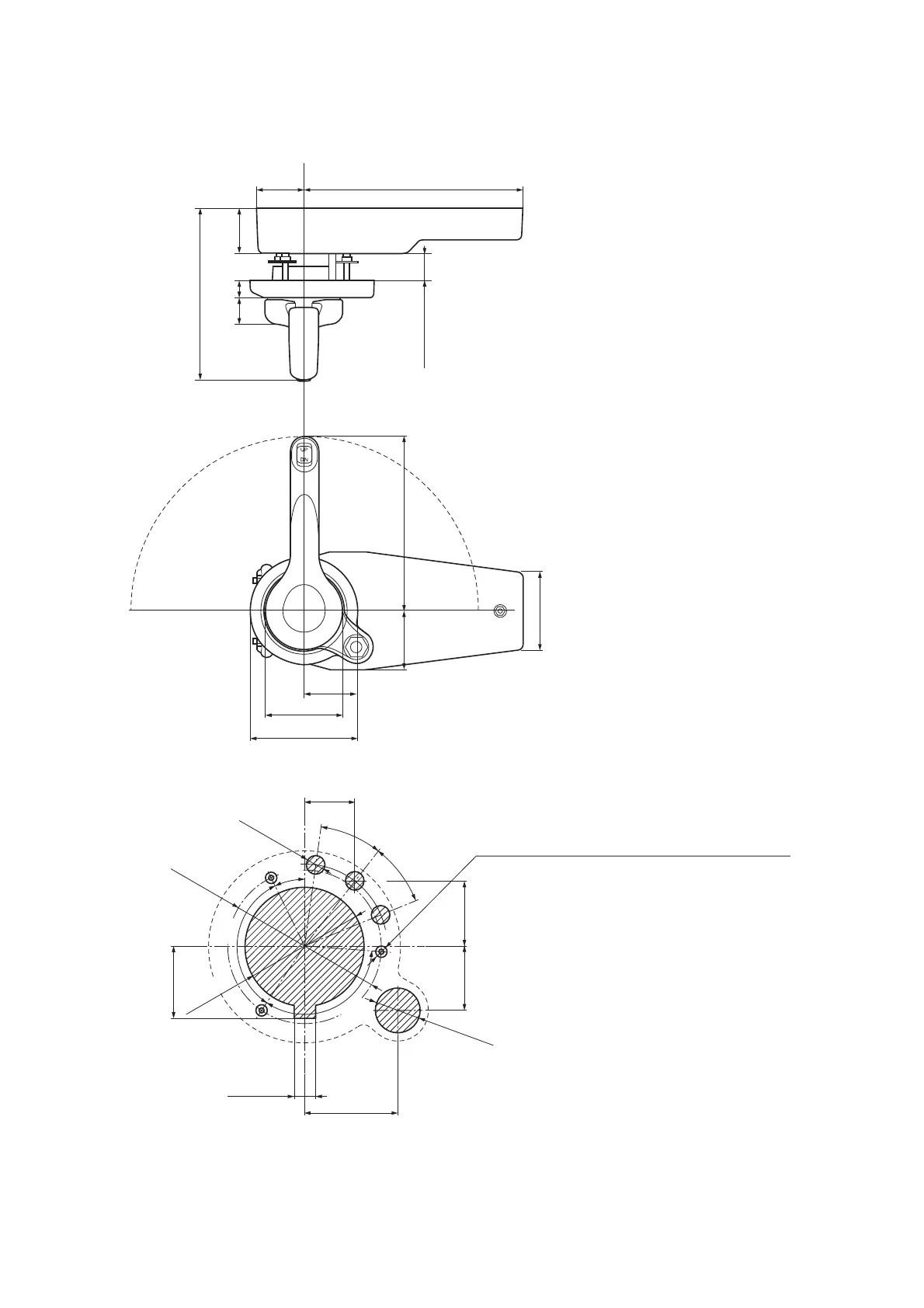

6X3 CONCEALED REMOTE CONTROL DIMENSIONS
If a panel board thickness is below 20 mm (0.79 in.),
make three 7 mm (9/32 in.) holes and use the supplied
bolts and nuts.
If the board is thicker than 20 mm (0.79 in.), make three
4 mm (5/32 in.) holes and use supplied screws.
88 (3.46)
29.6
(1.17)
20.4
(0.8)
Max. 30 (1.18)
52.3
(2.06)
198.3 (7.81)
54.2
(2.13)
251 (9.88)
201 (7.91)
67.6
(2.66)
123 (4.84)
89 (3.5)
60.1
(2.37)
13 (0.51)
28.6 (1.12)
99 (3.89)
12 (0.47)
77 (3.03)
60.1 (2.36)
46.5 (1.83)
32.8 (1.29)
30
26
120
120
30
41.8 (1.64) 42 (1.65)
Cut out the shaded area.
