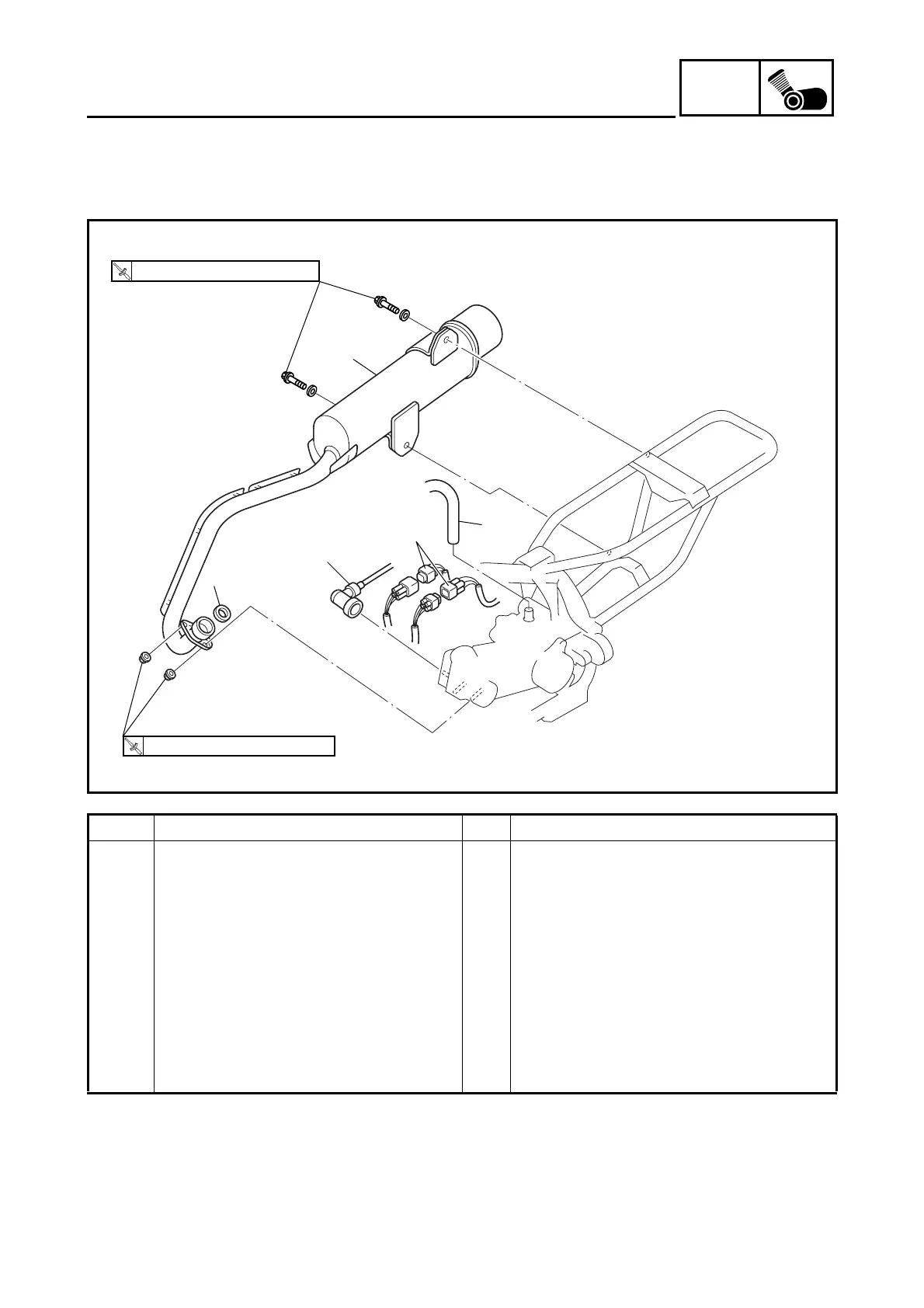

EXHAUST PIPE/MUFFLER, BREATHER HOSE AND LEADS
1
3
4
5
2
T
R
.
.
10 Nm (1.0 m
•
kg, 7.2 ft
•
Ib)
T
R
.
.
25 Nm (2.5 m
•
kg, 18 ft
•
Ib)
Order Job/Part Q’ty Remarks
Removing the exhaust pipe/muffler,
breather hose and leads
Remove the parts in the order listed.
Rear fender Refer to “SEAT, FENDERS AND FUEL
TANK” in chapter 3.
1 Exhaust pipe/muffler 1
2 Exhaust pipe gasket 1
3 Spark plug lead 1
4 C.D.I. magneto coupler 2
5 Crankcase breather hose 1
For installation, reverse the removal pro-
cedure.
