Basic components
17
rious engine damage will occur.
EMU26581

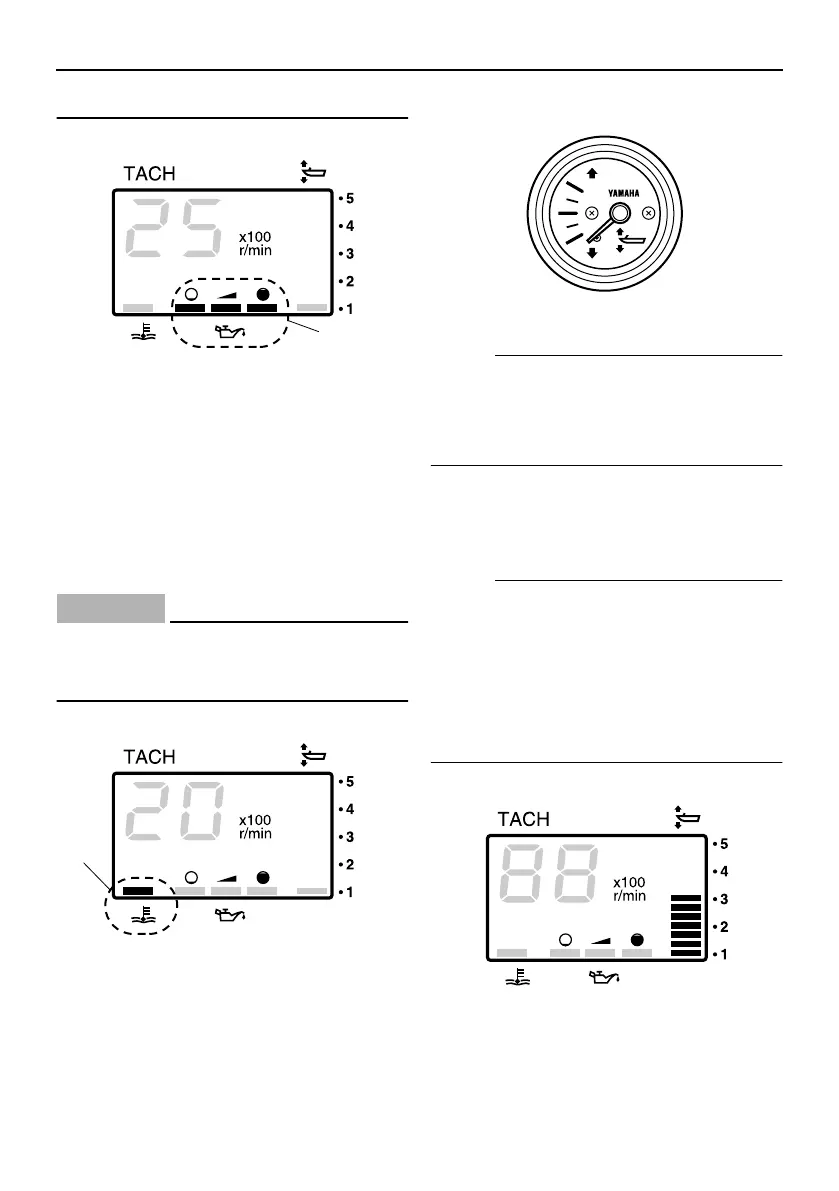

Overheat warning indicator (digital
type)
If the engine temperature rises too high, the
warning indicator will start to blink. For fur-
ther information on reading the indicator, see
page 18.
CAUTION:
ECM00050
Do not continue to run the engine if the
overheat warning indicator is on. Serious
engine damage will occur.
EMU26610
Trim meter
This gauge shows the trim angle of your out-
board motor.
NOTE:
Memorize the trim angles that work best for
your boat under different conditions. Adjust
the trim angle to the desired setting with the
power trim and tilt switch.
EMU26620
Trim meter (digital type)
This meter shows the trim angle of your out-
board motor.
NOTE:
●
Memorize the trim angles that work best
for your boat under different conditions.
Adjust the trim angle to the desired using
the power trim and tilt switch.
●
If the trim angle of your motor exceeds the
trim operating range, the top segment on
the trim meter display will blink.
EMU26650
Hour meter (digital type)
This meter shows the number of hours the
1. Oil level indicator
1. Overheat warning indicator
1
ZMU01867
1
ZMU01868
ZMU04581
ZMU01869
