2-10
GB
EMU00135

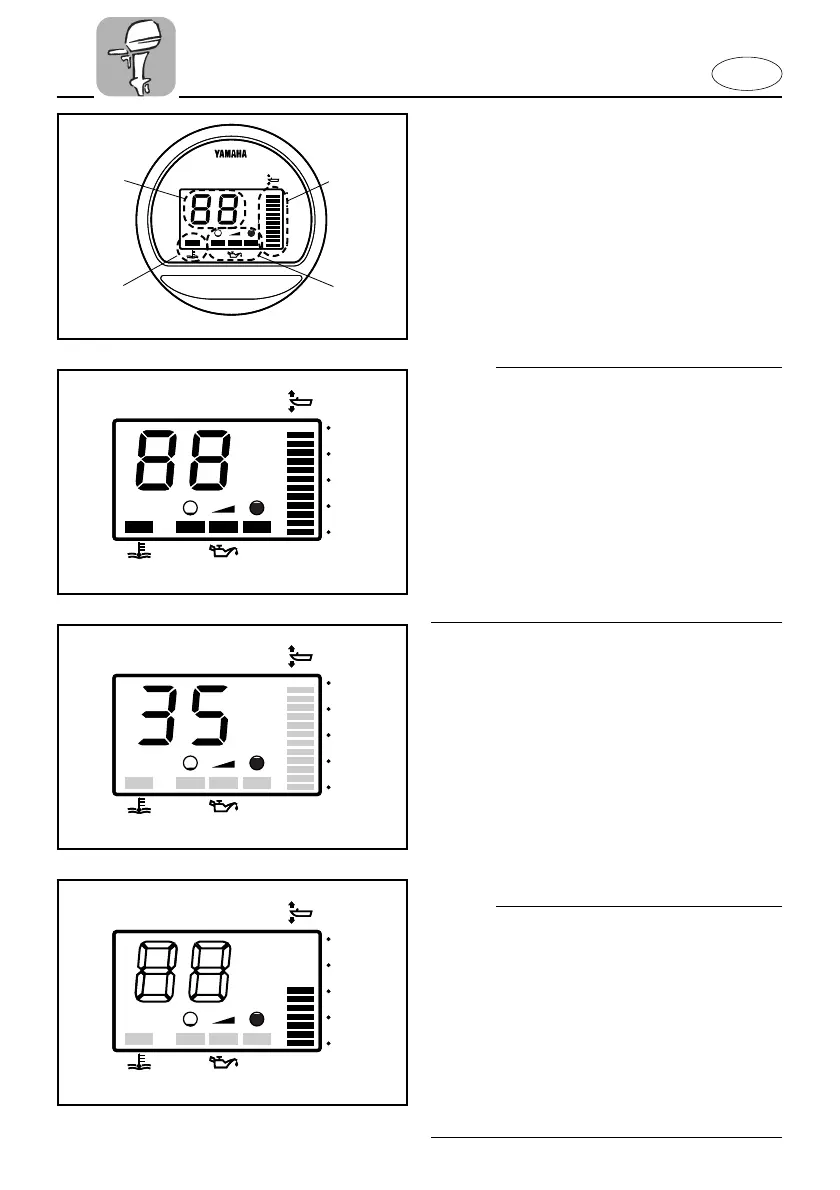

DIGITAL TACHOMETER
This meter contains the tachometer, trim
meter, oil level indicator and overheat
warning indicator.
1 Tachometer
2 Trim meter
3 Oil level indicator
4 Overheat warning indicator
NOTE:
After the main switch is first turned on all
segments of the display come on as a
check. The tachometer and trim meter will
indicate the maximum reading and the
oil-level indicator and overheat warning
indicator will light. After a few seconds,
the meters will change to normal opera-
tion. Watch the meter when turning on
the main switch to make sure all seg-
ments come on.
EMU01109
Trim Meter
This meter shows the trim angle of your
outboard motor.
NOTE:
8 Memorize the trim angles that work
best for your boat under different condi-
tions. Adjust the trim angle to the
desired setting by operating the power
trim and tilt switch.
8 If the trim angle of your motor exceeds
the trim operating range, the top seg-
ment on the trim meter display will start
to blink.
1
2
3
4
5
x100
r/min
TACH
1
2
3
4
5
x100
r/min
TACH
q
r
w
e
802011
1
2
3
4
5
x100
r/min
TACH
1
2
3
4
5
x100
r/min
TACH
802012
1
2
3
4
5
x100
r/min
TACH
1
2
3
4
5
x100
r/min
TACH
802042
1
2
3
4
5
x100
r/min
TACH
1
2
3
4
5
x100
r/min
TACH
802015
EMU00136
Tachometer
This meter shows the engine speed.
