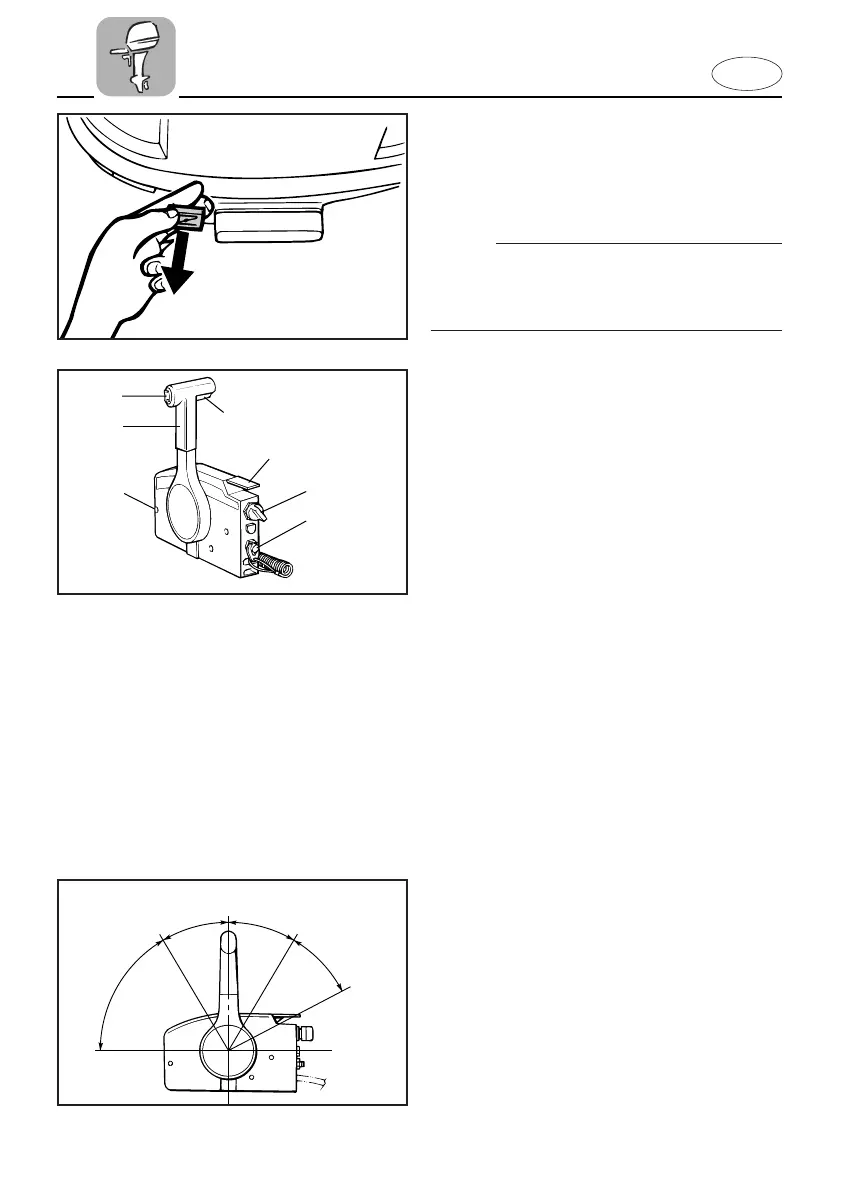

Yamaha 85A - Choke Knob; Remote Control

2-5
GB
EMC42010
CHOKE KNOB
Pulling out this knob (setting it to ON)
supplies a rich mixture required to start
the engine.
NOTE:
The choke knob for Remote control model
has the same function as the choke switch
on the remote control box.
305034
701011*
w
q
e
r
t
y
u
EMU00092*
REMOTE CONTROL
Both the shifter and the throttle are actu-
ated by the remote control lever. Addi-
tionally, the remote control also has the
electrical switches.
1 Remote control lever
2 Neutral interlock trigger
3 Neutral throttle lever
4 Main switch / Choke switch
5 Engine stop lanyard switch
6 Power trim and tilt switch (if equipped)
7 Throttle friction adjusting screw
EMU00098
Remote Control Lever
Moving the lever forward from the Neu-
tral position engages Forward gear.
Pulling the lever back from Neutral
engages Reverse. The engine will contin-
ue to run at idle until the lever is moved
about 35° (a detent can be felt). Moving
the lever farther opens the throttle, and
the engine will begin to accelerate.
1 Neutral
2 Forward
3 Reverse
4 Shift
5 Fully closed
6 Throttle
7 Fully open
R
N
F
q
w
e
r
t
y
u
u
t
r
y
701031
