2-13
GB
EMD63110

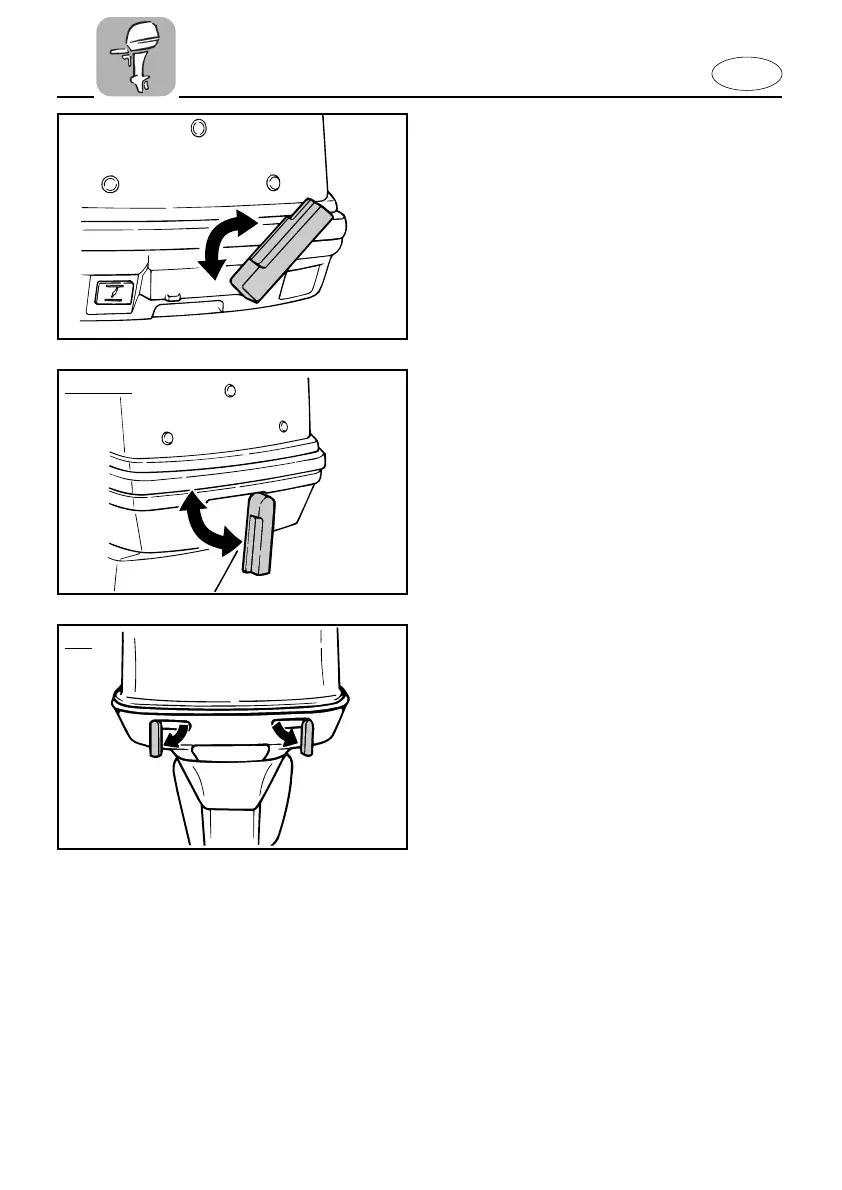

TOP COWLING LOCK LEVERS
To remove the engine top cowling, pull
up the front lock lever and push the rear
lock lever(s) down. Then lift off the cowl-
ing. When replacing the cowling, check to
be sure it fits properly in the rubber seal.
Then lock the cowling again by returning
the levers to the locked position.
301041
55/75/85
115
