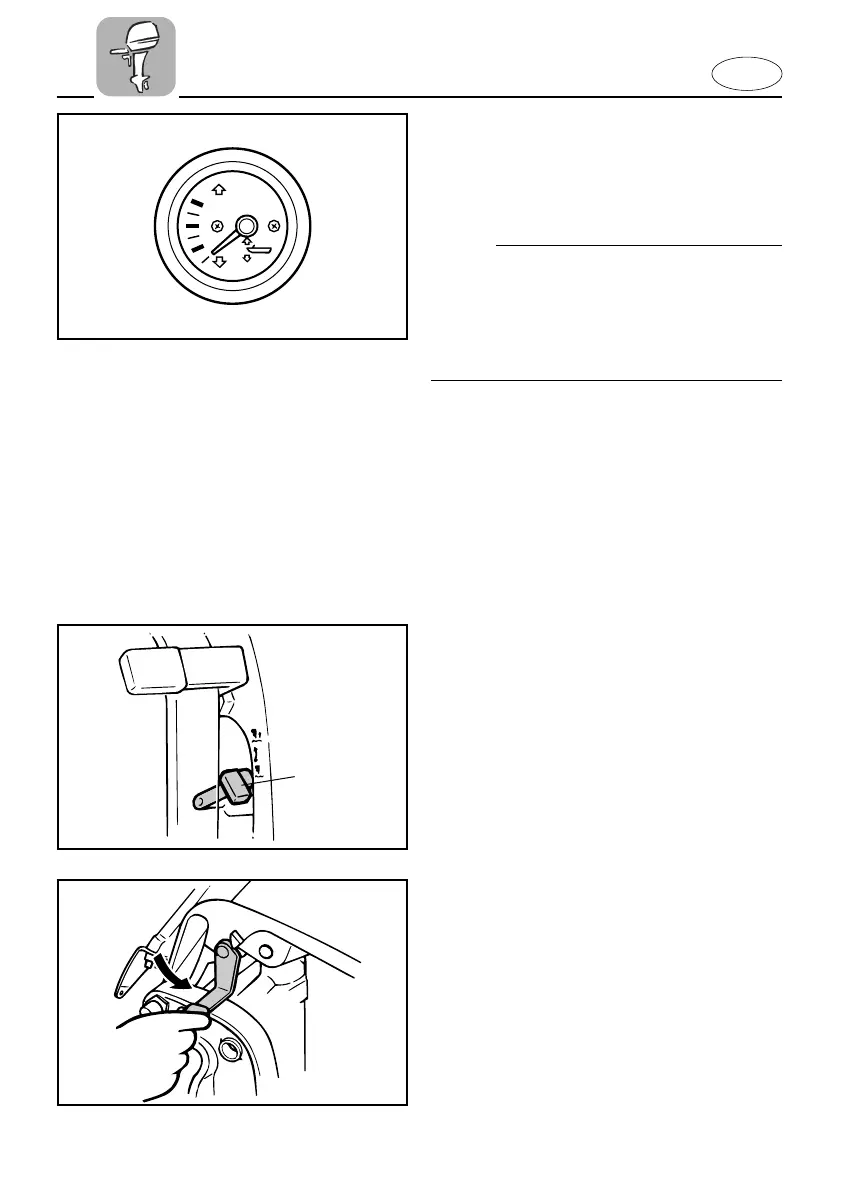

TRIM METER (for Power trim and tilt
model)
This meter shows the trim angle of your
outboard.
NOTE:
Memorize the trim angles that work best
for your boat under different conditions.
Adjust the trim angle to the desired set-
ting by operating the power trim and tilt
switch.
402041*
q
403011*
EMD60010
TILT SUPPORT LEVER
To keep the outboard motor in the tilted-
up position, lock the tilt support lever to
the clamp bracket.
EMD44110
TILT LOCK MECHANISM (for Manual
tilt model)
The tilt-lock mechanism is used to pre-
vent reverse thrust from the propeller lift-
ing the outboard motor when reversing.
To lock it, set the tilt-lock lever in the Lock
position. To release it, place the tilt-lock
lever in the Tilt position.
1 Tilt-lock lever
