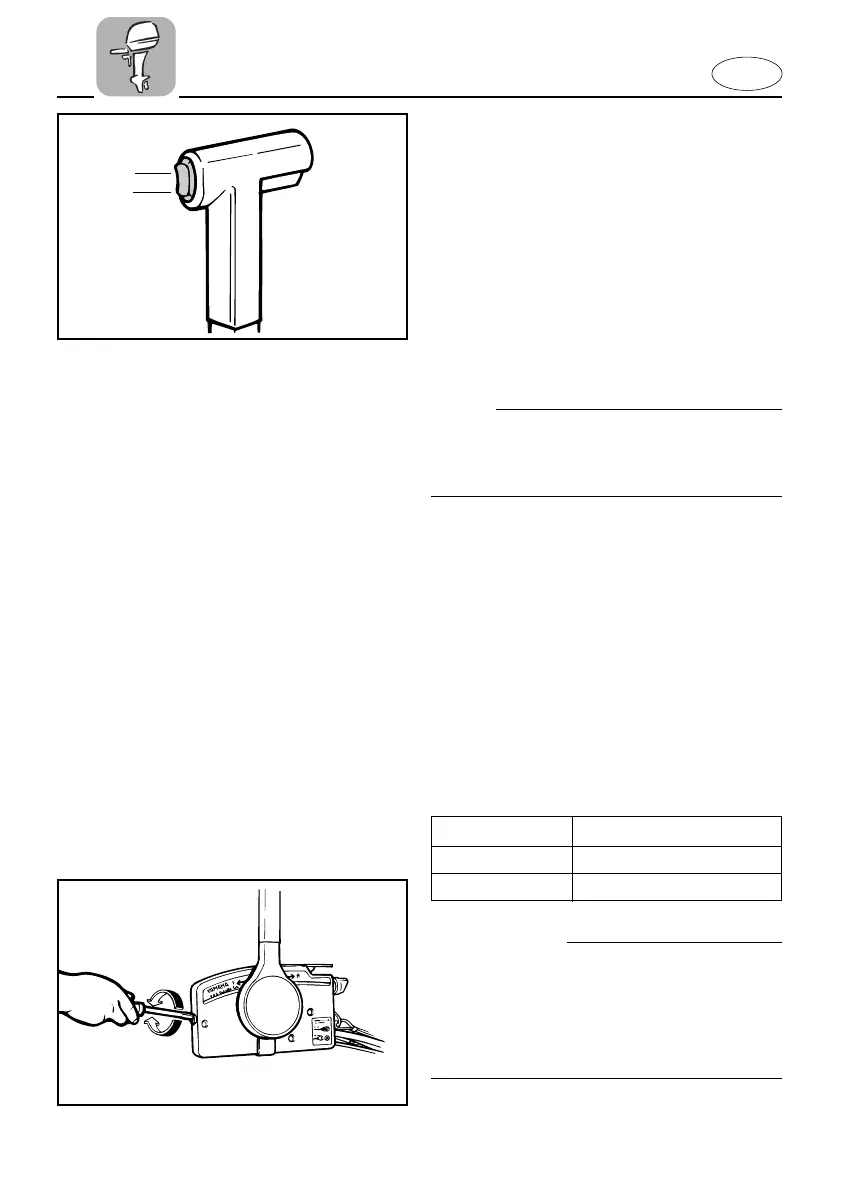

Power Trim/Tilt Switch
The power trim/tilt adjusts the motor
angle in relation to the transom. The
power trim/tilt switch is located on the
remote control lever grip. Pushing the
switch “UP” trims the motor up, then tilts
the motor up. Pressing the switch “DN”
tilts the motor down and trims the motor
down. When the switch button is
released, the motor will stop in its current
position.
NOTE:
Refer to the sections “ADJUSTING TRIM
ANGLE” and “TILTING UP/DOWN” in
Chapter 3 for instructions on usage.
UP
DN
701034
UP
DN
EMC87011
Throttle friction adjusting screw
A friction device in the remote control box
provides resistance to movement of the
remote control lever.
This is adjustable for operator preference.
An adjusting screw is located at the front
of the remote control box.
w
Do not overtighten the friction adjusting
screw.
If there is too much resistance, it may be
difficult to move the lever, which could
result in an accident.
Resistance Screw
Increase Turn clockwise
Decrease Turn counterclockwise
