Yamaha 85AEHD - Digital Network Premium Gauge Dimensions; Premium Color Gauge Dimensions

7-4

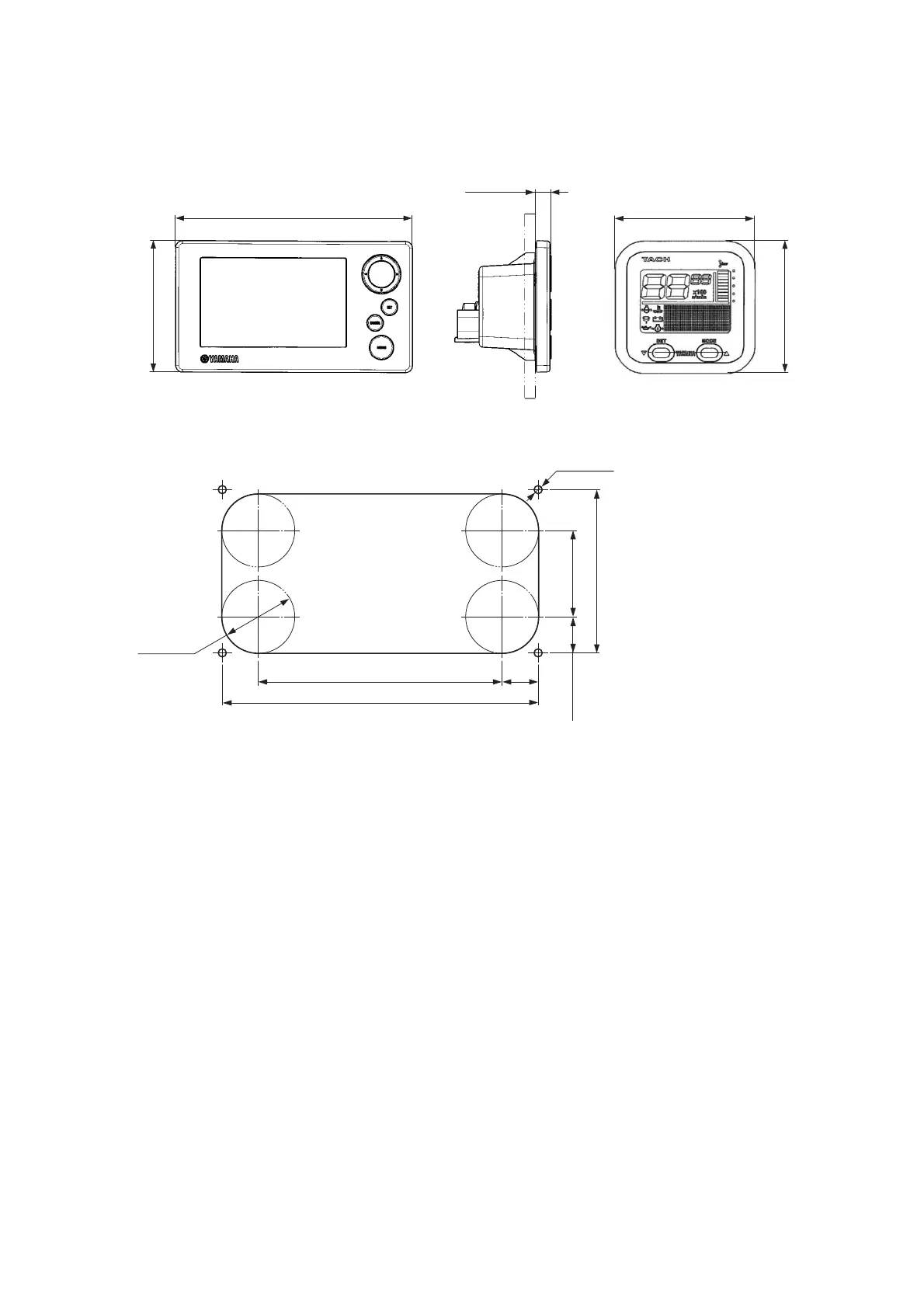

DIGITAL NETWORK PREMIUM GAUGE DIMENSIONS
PREMIUM COLOR GAUGE DIMENSIONS
98 (3.86)
Template
Reference: previous gauge
177.5 (6.99)
11.9 (0.47)
98 (3.86)
98 (3.86)
85.0 (3.35)
45.0 (1.77)
18.75 (0.74)
18.75
(0.74)
127.0 (5.00)
164.5 (6.48)
3
8.0 (1.50)
4.2 (0.17)
mm (in.)
