Yamaha A10 - Speaker Component Removal

10
SPEAKER SYSTEM/SUBWOOFER
A10/A12/A12M/A15/A15W
A10: [5B]
A12 /A15: [6]
A10: [5B]
A12 /A15: [6]
Speaker(Woofer)
Speaker(Tweeter)
[12A]
[12A]
[23]
[23]
[23]
Metal grille
[23]

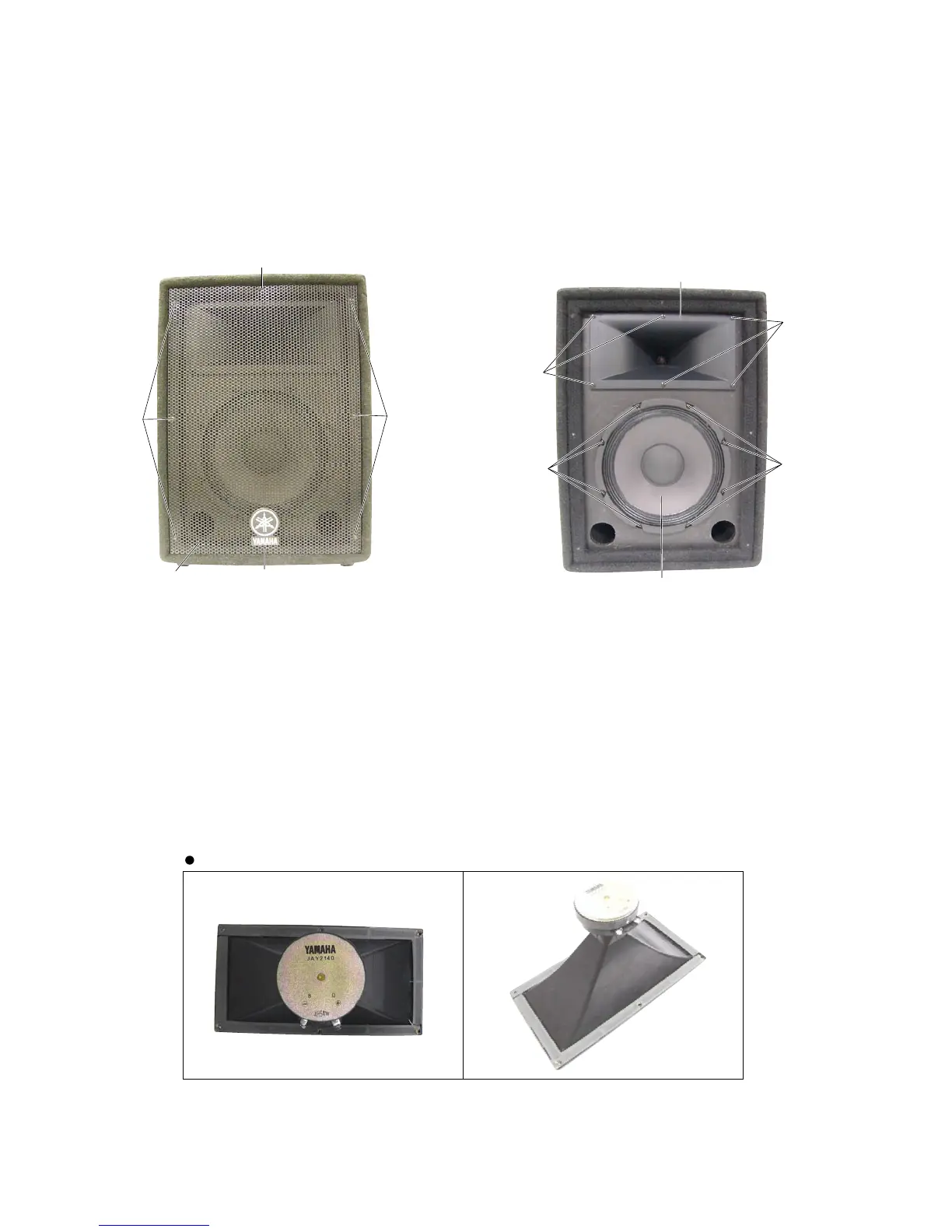

Photo.4
Photo.5
(A10)
4. Speaker(Woofer)
(Time required: About 3 minutes)
4-1 Remove the eight (8) screws marked [23]. The metal
grille can then be removed. (Photo.4)
[23]: +Cup Screw D4.0/L16 Black (WA764400)
A10
[5]: +Bind Head Tapping Screw D4.0/L16 Black (AAX59650)
[12]: +Bind Head Tapping Screw D4.0/L25 Black (AAX59670)
A12/A15
[6]: +Bind Head Tapping ScrewD5.0/L20 Black (VB857600)
[12]: +Bind Head Tapping Screw D4.0/L25 Black (AAX59670)
Speaker(Tweeter)
Photo.6 Photo.7
4-2 A10: Remove the eight (8) screws marked [5B]. The
speaker(woofer) can then be removed. (Photo.5)
A12/ A15: Remove the eight (8) screws marked [6].
The speaker(woofer) can then be removed. (Photo.5)
(A10)
5. Speaker(Tweeter)
(Time required: About 3 minutes)
5-1 Remove the metal grille. (See procedure 4-1)
5-2 Remove the the six (6) screws marked [12A].
The speaker(tweeter) can then be removed.
(Photo.5, 6, 7)
