Yamaha A10 - Overall Assembly A15 W Parts

SPEAKER SYSTEM/SUBWOOFER
6
A10/A12/A12M/A15/A15W
: New Parts
REF NO. PART NO. DESCRIPTION REMARKS QTY RANK
RANK: Japan only
OVERALL ASSEMBLY A15W
4 Speaker 8ohms 250W 15" ADC_FLAME, WOOFER
5 +Bind Head Tapping Screw D4.0/L16 Black for HANDLE 20
7 +Bind Head Tapping Screw D5.0/L25 Black for 15" ADC WOOFER 8 01
10 Cushion
12 +Bind Head Tapping Screw D4.0/L25 Black for TERMINAL 4
19 Metal Grille
20 YAMAHA Logo BADGE
21 Cushion for LOGO
22 Push Nut SPN-4 2 01
23 +Cup Screw D4.0/L16 Black for METAL GRILLE 8 01
24 Metal Handle 205
25 Tripod Support Mount
27 +Flat Head Machine Screw M5.0/L40 Black for TSM 4
32 Network
33 +Bind Head Tapping Screw D3.0/L20 Black for NETWORK CROSSOVER 4
34 Phone Jack 206
35 Neutrik NL4MP SPEAKON 2 06
37 Terminal Plate 4 HOLES, without LABEL
38 Nut for NEUTRIK 4 01
39 +Flat Head Machine Screw M3.0/L12 Black for NEUTRIK 4 01
41 Rubber Foot 403
42 +Bind Head Wood Screw D5.0/L30 for RUBBER FOOT 4
AAX58880
AAX59650
VI014200
WA752300
AAX59670
AAX59740
AAX59750
AAX59760
V6290000
WA764400
WA748900
WD887400
AAX59780
AAX59830
VI064700
WA753900
LAY00180
AAX59850
ES200030
V5993400
WA748800
AAX59870
*
*
*
*
*
*
*
*
*
*

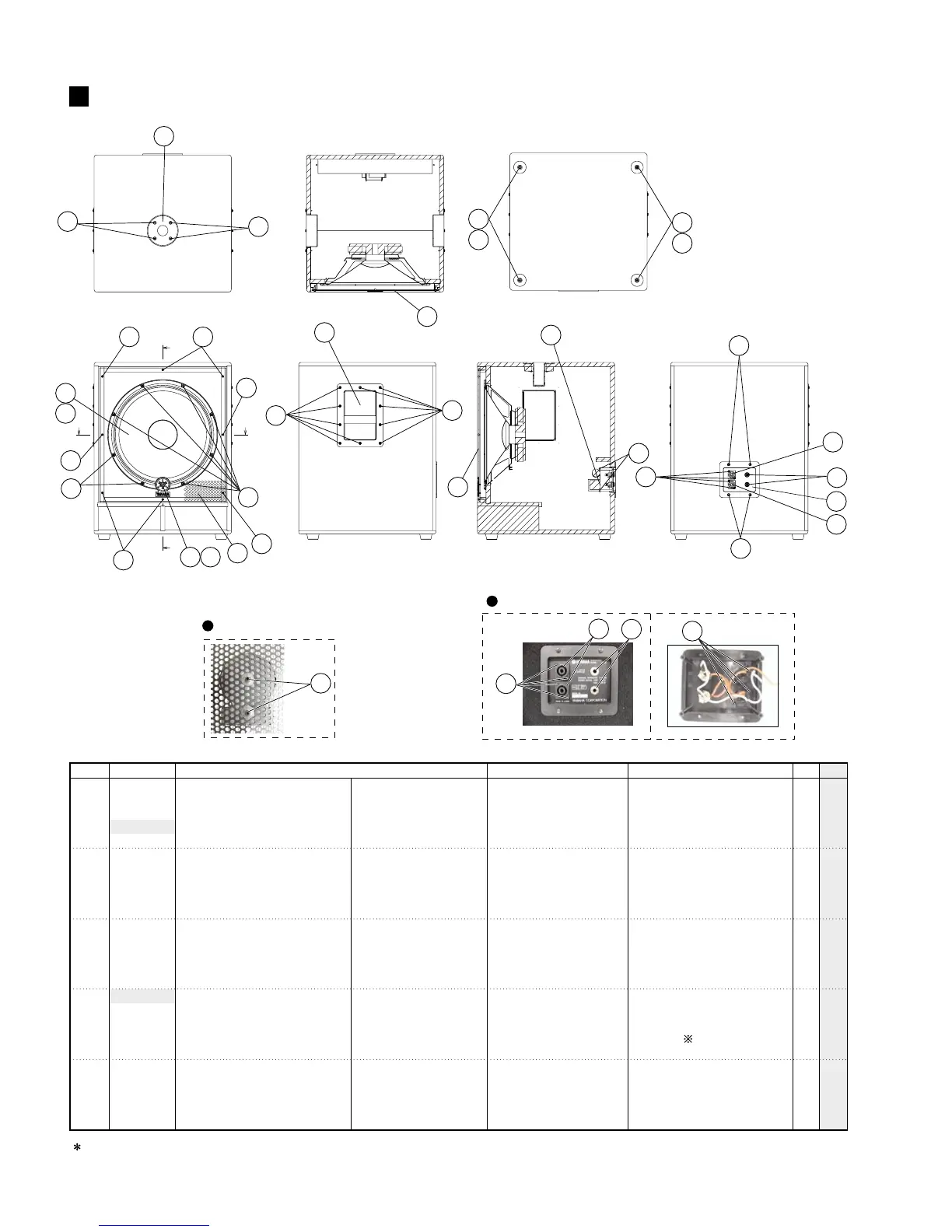

OVERALL ASSEMBLY: A15W
A
A
BB
A-A
B-B
5
24
5
19
19
25
27
41
42
27
41
42
32
33
19
23
23
23
4
7
7
10
20
35
35
39
12
37
34
12
23
23
23
21
22
Push Nut
Input Panel
39
35
34
38
