The unit is equipped with a variety of input jacks including HDMI input jacks to allow
you to connect different types of playback devices. For information on how to connect
an iPod or a USB storage device, see the following pages.
• Connecting an iPod (p.87)
• Connecting a USB storage device (p.90)
Connecting video devices (such as BD/DVD players)
Connect video devices such as BD/DVD players, set-top boxes (STBs) and game
consoles to the unit. Depending on the video/audio output jacks available on your video
device, choose one of the following connections. We recommend using an HDMI
connection if the video device has an HDMI output jack.
• Videos input to the unit via HDMI cannot be output to a TV connected to the unit with a cable other than
HDMI. For details, refer to “Video signal flow” (p.180).
• The following explanation is based on the assumption that you have not changed the “Input Assignment”
setting (p.150) in the “Setup” menu. As necessary, you can assign the COMPONENT VIDEO (A , B , C ),
COAXIAL (c, d, e) and OPTICAL (a, b, f) jacks to another input source.
• If you make more than one audio connection for one input source, an audio signal played back on the unit
will be determined according to the “Audio Select” setting (p.119) in the “Option” menu.

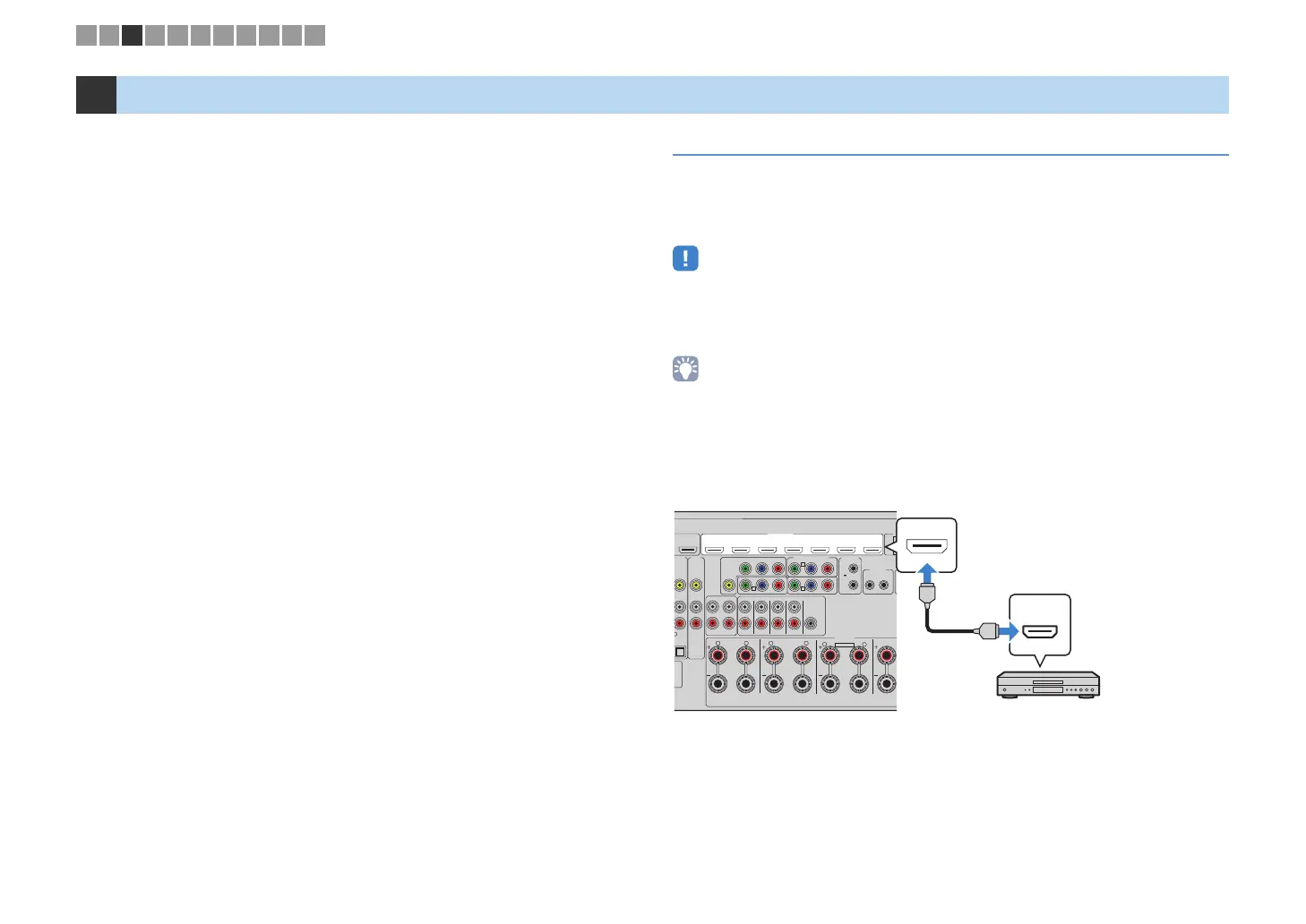

■ HDMI connection
Connect a video device to the unit with an HDMI cable.
If you select the input source by pressing AV 1–7 on the remote control, the video/audio
played back on the video device will be output from the unit.
3 Connecting playback devices
I
OUT
ARC
1
HDMI
(1 BD/DVD)
AV 1 AV 2 AV 3 AV 4
(HDCP2.2)
AV 5 AV 6 AV 7
IN OUT
REMOTE
AV 3 AV 4
OPTICAL
1
2
ZONE OUT/PRE OUT
ZONE 2/
F. PRESENCE
ZONE 3/
R. PRESENCE
SPEAKERS
CENTER SURROUND BACK SURROUND
ZONE 2/ZONE 3/R.PRESENCE
R
6
L R
R
L
L
SINGLE
PRE OUT
SUBWOOFER
CENTER FRONT SURROUND SUR. BACK
(SINGLE) (FRONT)
(REAR)
EXTRA SP2
TRIGGER
OUT
1
2
12V 0.1A
MAX. TOTAL
N
E
Y
P
B PR
PRPB
Y
P
RPB
YPRPB
AV 1
COMPONENT VIDEO
A
AV 3
C
AV 2
B
MONITOR OUT/
ZONE OUT
Y
C
P2.2)
HDMI
HDMI
HDMI
The unit (rear)
HDMI output
Video device
HDMI (AV 1–7) jacks
1 2 3 4 5 6 7 8 9 10 11
