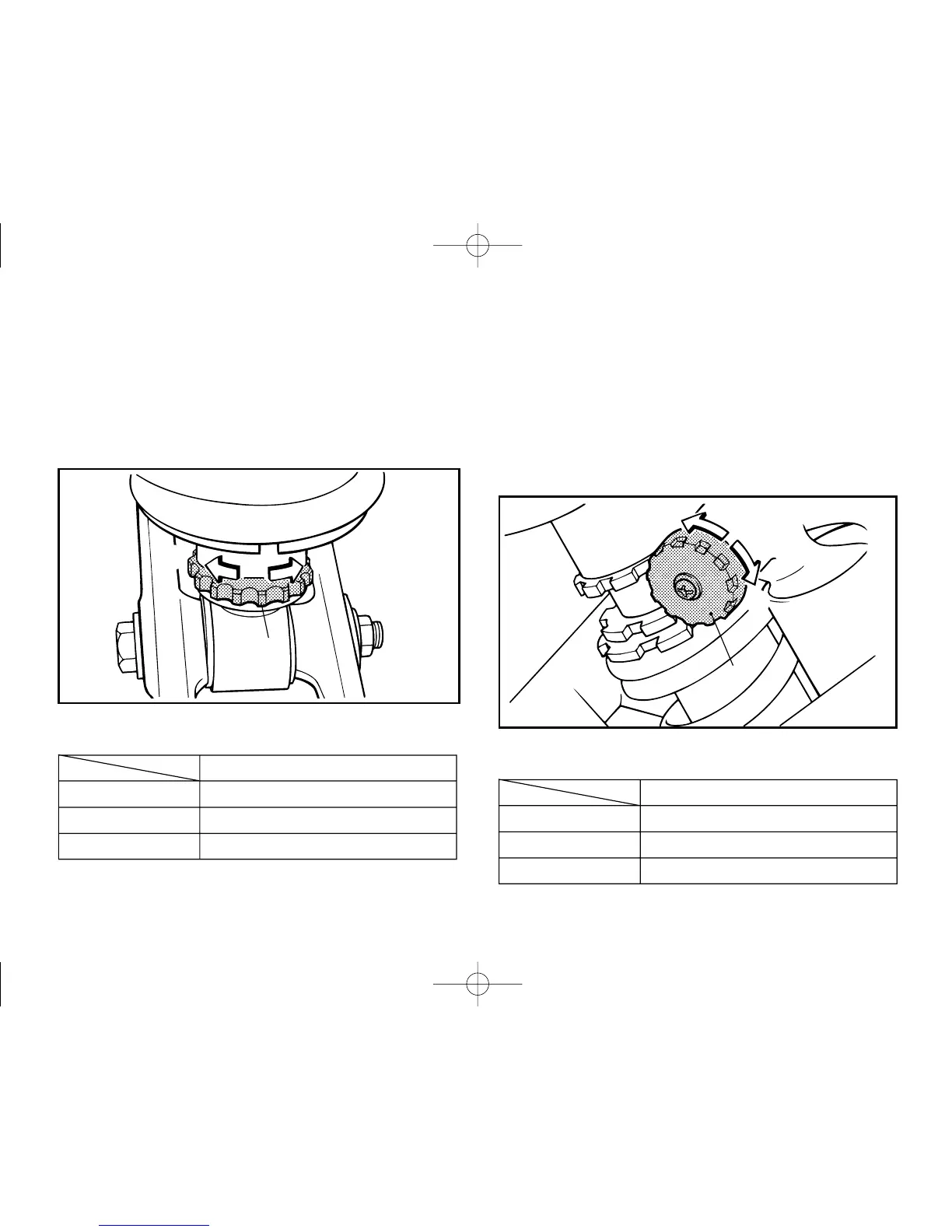

Adjust the rebound damping force as follows.
Turn the rebound damping force adjusting dial
in direction a to increase the rebound damp-
ing force and in direction b to decrease the
rebound damping force.
Adjust the compression damping force as fol-
lows.
Turn the compression damping force adjust-
ing knob in direction a to increase the com-
pression damping force and in direction b to
decrease the compression damping force.
q
b
a
1. Compression damping force adjusting knob
1. Rebound damping force adjusting dial
q
b
a
From the fully turned-in position
Minimum (soft): 20 clicks out
Standard: 12 clicks out
Maximum (hard): 3 clicks out
From the fully turned-out position
Minimum (soft): 1 click in
Standard : 11 clicks in
Maximum (hard): 15 clicks in
