INSTRUMENT AND CONTROL FUNCTIONS
3
EAU03034
Indicator and warning lights
EAU00057
Turn signal indicator light “ ”
This indicator light flashes when the
turn signal switch is pushed to the left
or right.

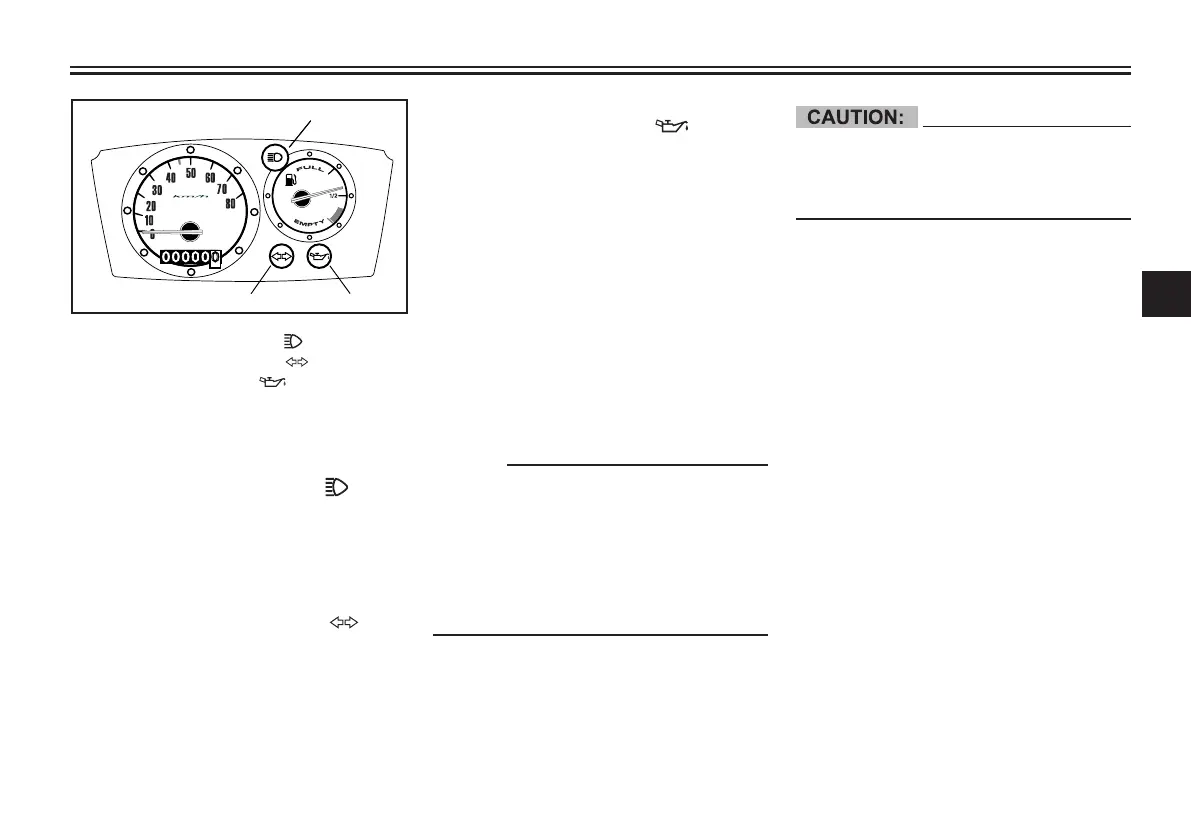

1. High beam indicator light “ ”
2. Turn signal indicator light “ ”
3. Oil level warning light “ ”
EAU00063
High beam indicator light “ ”
This indicator light comes on when the
high beam of the headlight is switched
on.
3-2
11
2
3
ZAUM0176
EC000000
Do not operate the scooter until you
know that the engine oil level is
sufficient.
EAUM0077
Oil level warning light “ ”
This warning light comes on when the
key is in the “
*
” position or when the
oil level in the 2-stroke engine oil tank
is low during operation. If the warning
light comes on during operation, stop
immediately and fill the oil tank with 2-
stroke engine oil of either JASO grade
"FC" or ISO grades "EG-C" or "EG-D".
The warning light should go off after the
2-stroke engine oil tank has been
refilled.
NOTE :
If the warning light does not come on
when the key is in the “
*
” position or
does not go off after the 2-stroke engine
oil tank has been refilled, have a
Yamaha dealer check the electrical cir-
cuit.
