IDENTIFICATION OF COMPONENTS

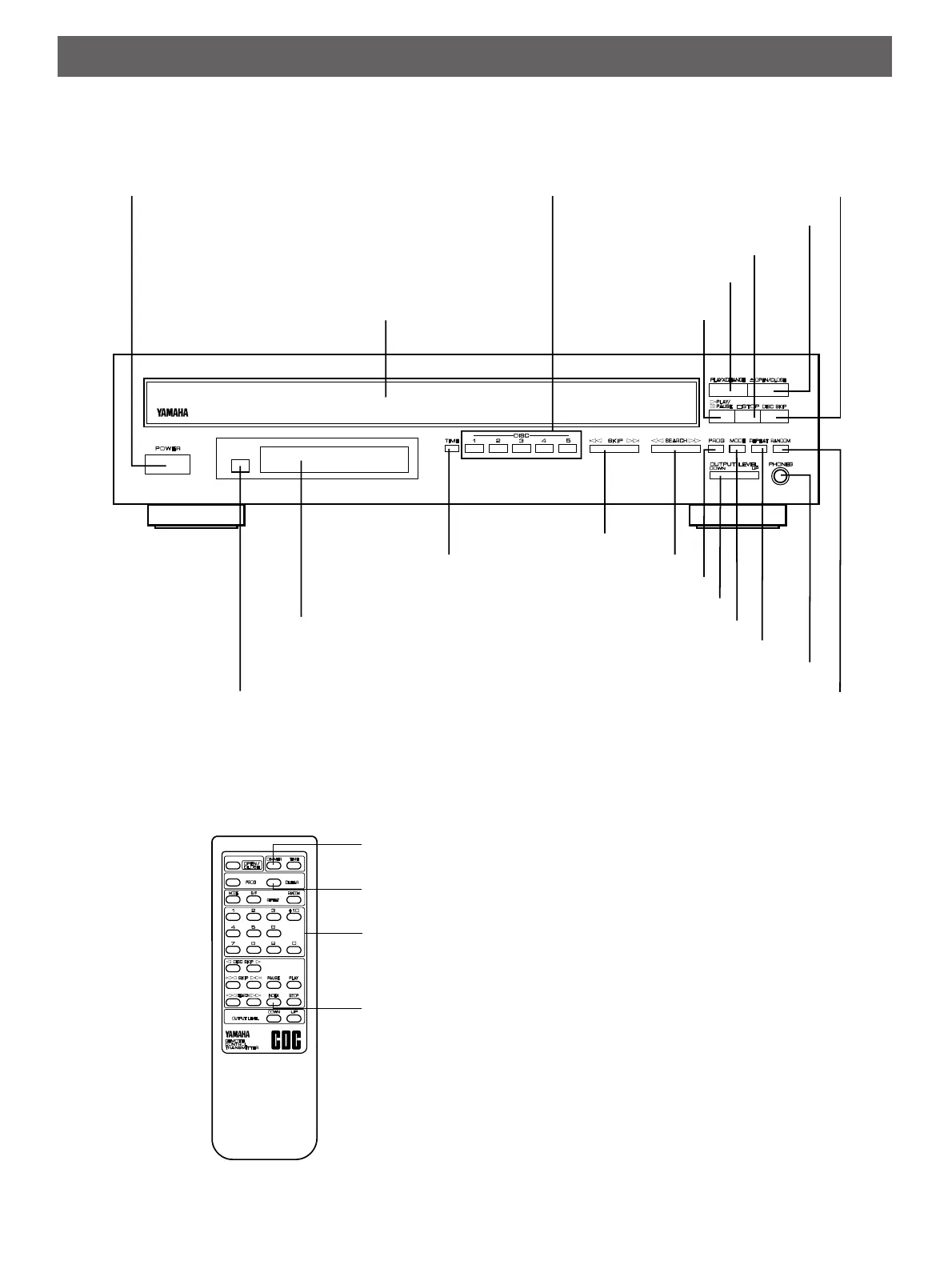

FRONT PANEL
REMOTE CONTROL TRANSMITTER
The control functions on the main unit and on the remote-
control transmitter are virtually identical, with the exceptions
described below.
* The PLAY/PAUSE button on the main unit has both
the functions of the PLAY button and the PAUSE
button on the remote control transmitter
* Remote control transmitter has two DISC SKIP
buttons. Pressing each button will search discs in
the direction shown by the arrow.
5
OPEN/CLOSE
button
button
DISC SKIP
STOP
button
button
button
PLAYXCHANGE
PLAY/PAUSE
RANDOM button
PHONES
jack
REPEAT
button
-select button
LEVEL
control
PROG
button
SEARCH
button
SKIP
button
select button
TIME
display mode-
Display panel
Remote control sensor
POWER
switch
Disc tray
DISC
-select button
OUTPUT
Disc play
MODE
Numeric buttons
INDEX
button
button
DIMMERbutton
CLEAR
