CDC-E500
CDC-E500
14

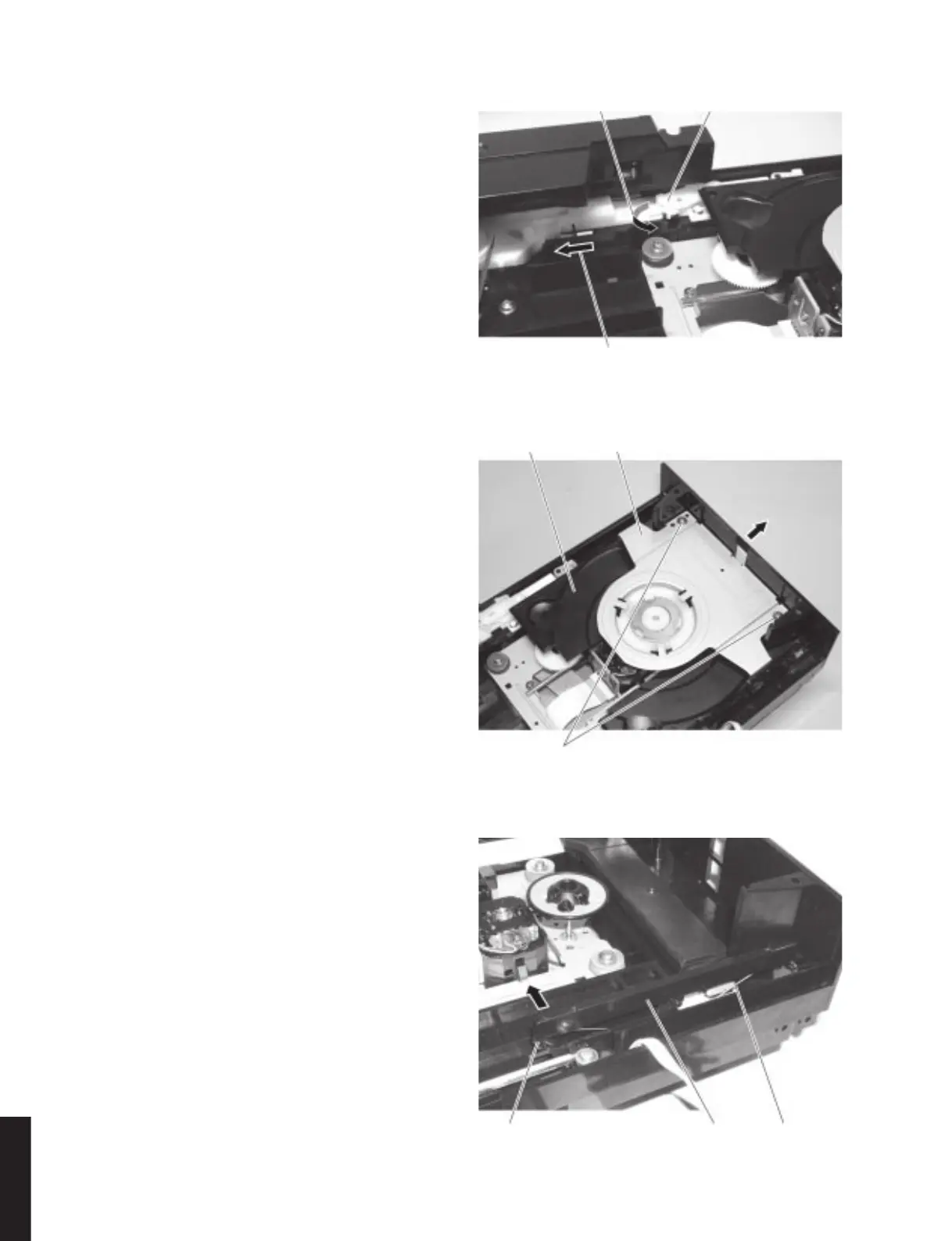

d. While moving the arm stopper B in the arrow direction
(Photo 14), pull the lever toward you (Photo 13) and lift
the arm. (Photo 15)
e. Remove 2 screws fixing the arm and while pulling the
chassis by the part marked with an arrow, remove the
arm. (Photo 15)
f. Remove the carriage located under it as well. (Photo
15)
g. Remove the lifter and spring located on the right side.
Since the front is spring shaped, push this section
inward to release it from the claw of the chassis. (Photo
16)
Photo 14
Photo 15
Photo 16
Arm stopper B
Move the arm stopper B
in this direction.
Slider 1 and 2 move in this direction.
Carriage Arm
Pull the chassis.
2 arm mounting screws.
SpringLifterWhile pushing this part inward,
lift the lifter to remove it.
To Next Page
