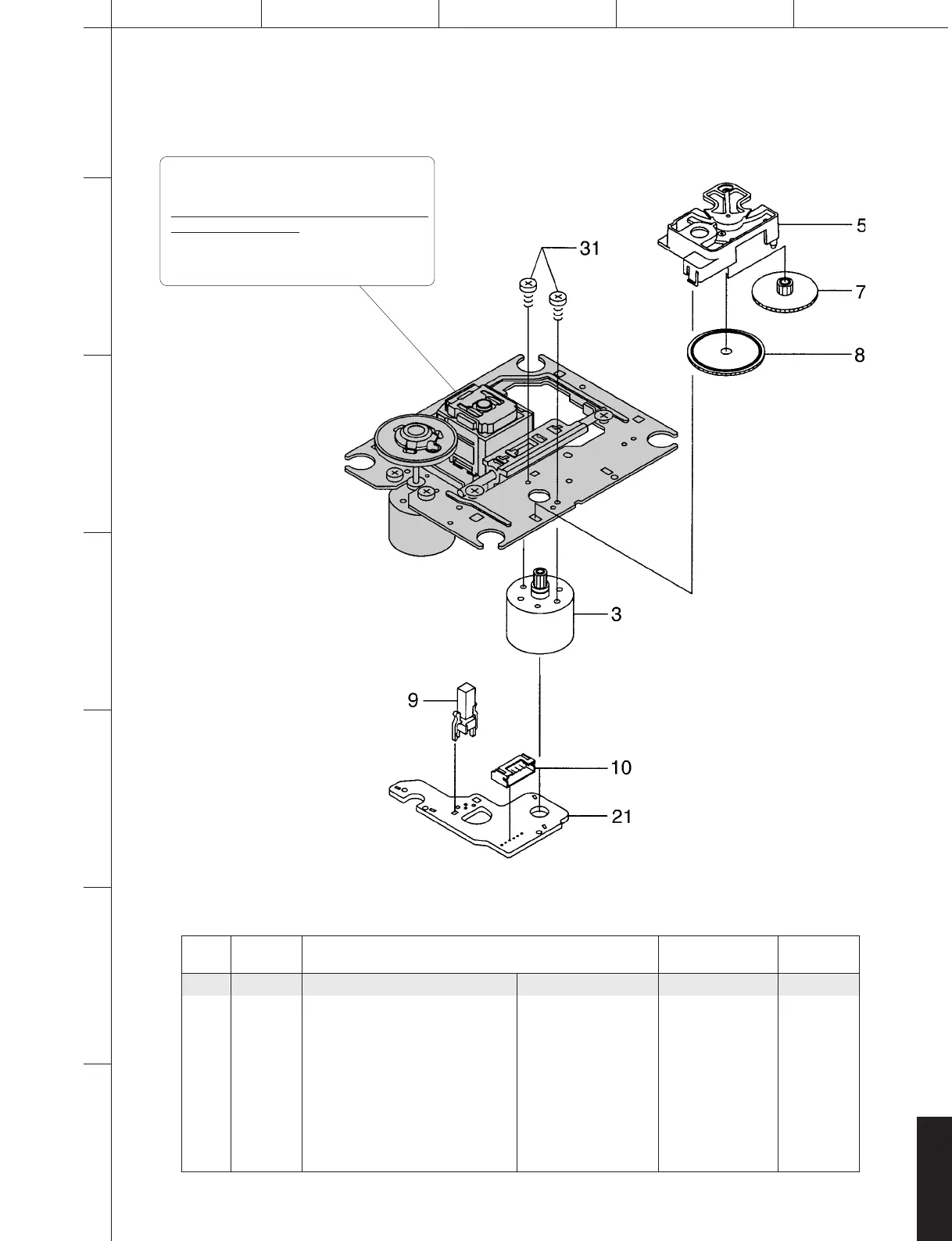

■ EXPLODED VIEW (PU Mecha. Unit)
Note :
Neither the pick-up head nor the spindle
motor is available independently because
they are factory-adjusted for the optimum
level after assembly. If the pick-up head
or the spindle motor must be replaced,
be sure to replace them together as a
unit.
Ref.
No. PART NO. Description Remarks Markets
V3175200 PUMECHA.UNIT DA11T3
3 XX702580 SLEDMOTORASS'Y 6.0V 1EA0M10A09700
5 XX702590 COVER,GEAR 1EA2121A20000
7 XX702610 GEAR,MIDDLE 1EA2511A21000
8 XX702600 GEAR,DRIVE 1EA2511A21100
9 XX702660 SWITCH,LEAF PWBMOTOR 1EA4S13A01600
10 XX702620 CONNECTOR,S 6P 1EA4J13A54700
21 XX702570 PWB,MOTOR 1EA4B10B06100
31 XX702640 SCREW,PANPCS 2x3 SE1PN203R0SE
✻ New Parts
