104 - MIDI Data format
D5000
3. Reception Data and Conditions
4. Reception Data
1) Channel Voice Messages
1 Note Off
Received on the currently set MIDI channel (if set to OMNI, all channels received). When a delay program
is active or a FREEZE program is set to record, the incoming data can be used as a trigger signal. The velocity
value is ignored. Data cannot be received when the BASE KEY parameter is set to OFF.
Status 1001nnnn (9nH) n = 0 (channel number1) ~ 15 (channel number 16)
Note Number 0kkkkkkk k = 0 (C-2) ~ 127(G8)
Velocity 0vvvvvvv v = 0 ~ 127
2 Note On
This message is only effective when the FREEZE program is set to playback
Status 1001nnnn (9nH) n = 0 (channel number1) ~ 15 (channel number 16)
Note Number 0kkkkkkk k = 0 (C-2) ~ 127(G8)
Velocity 0vvvvvvv v = 0 ~ 127
3 Control Change
Received on the currently set MIDI channel. When a message is received, the value of the assigned effect
parameter is changed according to the control value.
Status 1011nnnn (BnH) n = 0 (channel number1) ~ 15 (channel number 16)
Control Number 0ccccccc c = 1 ~ 95
Control Value 0vvvvvvv v = 0 ~ 127
4 Program Change
Received on the currently set MIDI channel. When a message is received, the corresponding program is
recalled from the program change table of the current bank.
Status 1100nnnn (CnH) n = 0 (channel number1) ~ 15 (channel number 16)
Program Number 0ppppppp p = 0 ~ 127
2) System Exclusive Messages
1 Program Bulk Data Request
Received on the currently set MIDI channel. When a message is received, the data for the requested program
number is transmitted.
Status 11110000 (F0H)
ID Number 01000011 (43H)
Sub Status 0010nnnn (2nH) n = 0 (channel number1) ~ 15 (channel number 16)
Format Number 01111110 (7EH)
01001100 (4CH) ASCII “L”
01001101 (4DH) ASCII “M”
00100000 (20H) ASCII “ ”
00100000 (20H) ASCII “ ”
00111000 (38H) ASCII “8”
01000001 (41H) ASCII “A”

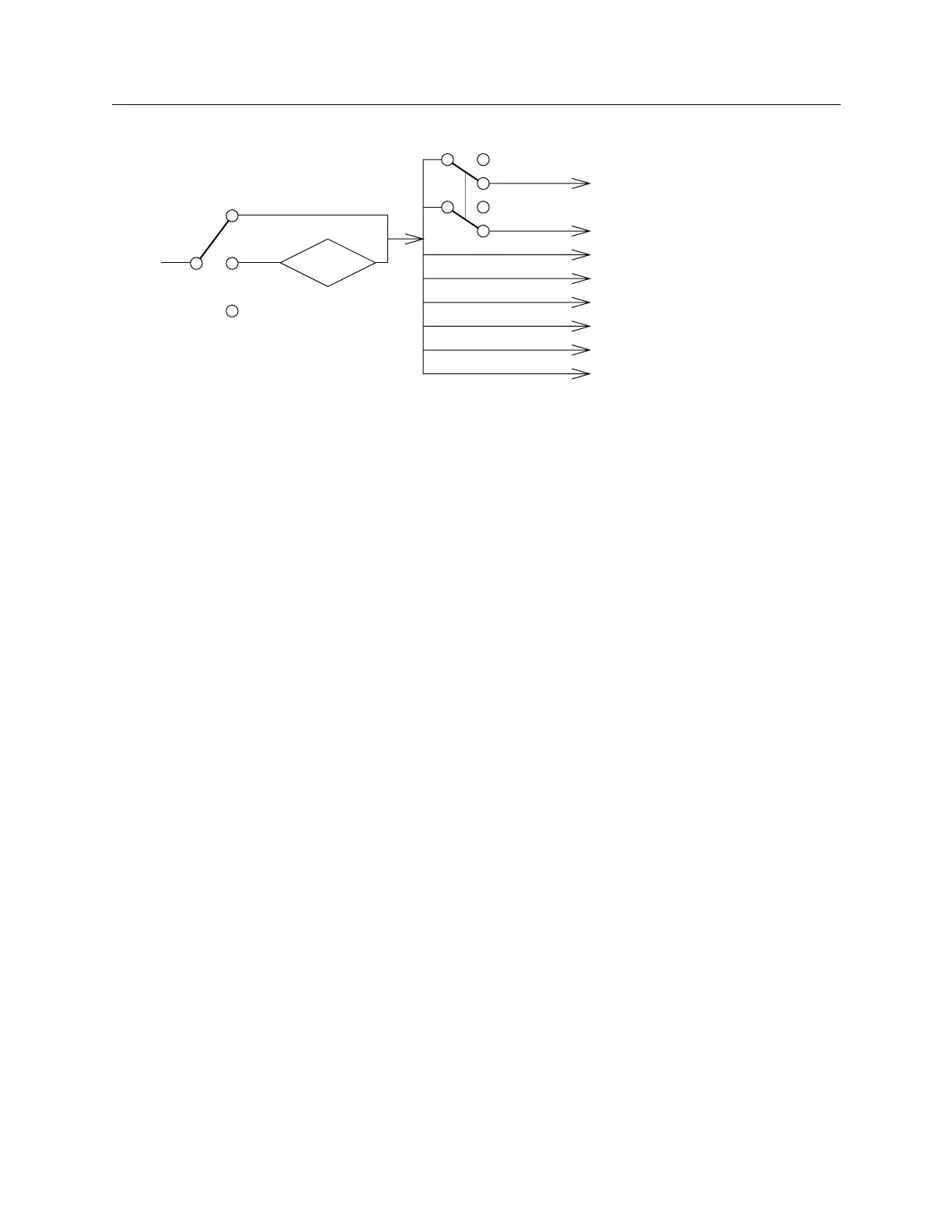

MIDI IN
MIDI
OFF
OMNI
1~ 16
CH = ?
CH
OFF
ON (C1 ~ C6)
BASE KEY
NOTE ON (9nH)
NOTE OFF (8nH)
CONTROL CHANGE (BnH)
PROGRAM CHANGE (CnH)
BULK DUMP REQUEST (F0H,43H,2nH)
BULK DUMP (F0H,43H,0nH)
BANK CHANGE (F0H,43H,0nH)
SYSTEM REAL TIME (F8H)
