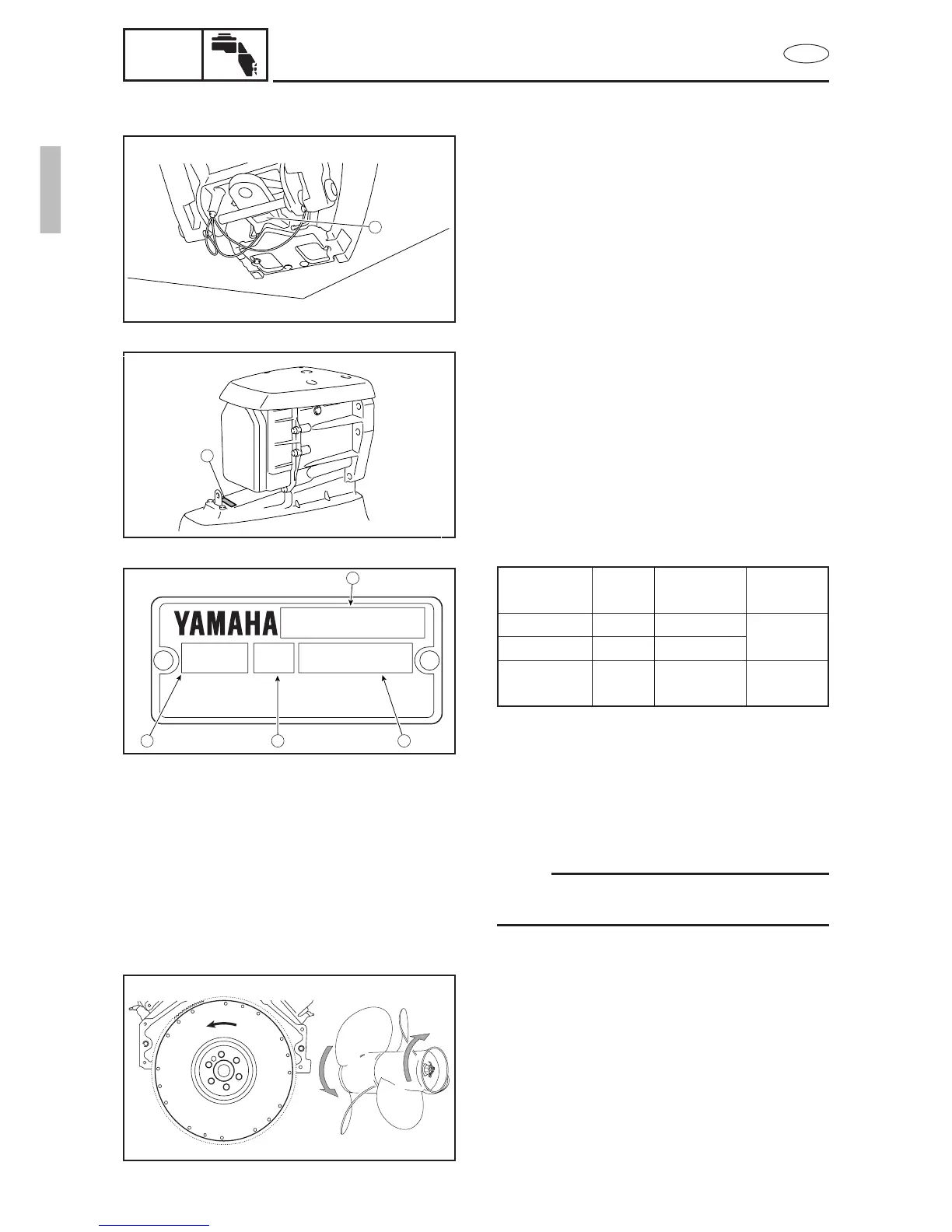

OUTDRIVE IDENTIFICATION
Intermediate Assembly
The model and serial number plate 1 is lo-
cated on the bottom surface of the interme-
diate housing.
OUTDRIVE IDENTIFICATION
1 Intermediate Assembly
2 Drive Unit
*Code Explanation:
DP–With Power Steering
DL–Without Power Steering, for Twin Installation
D–1.68:1 Gear Ratio
C–1.78:1 Gear Ratio
Engine and Propeller Rotation
Engine rotation is determined by looking at
the flywheel end of the engine. The Yamaha
engines covered in this manual rotate coun-
terclockwise to the left as viewed from the
flywheel.
As for the propeller rotation, the front pro-
peller rotates counterclockwise, and the rear
propeller rotates clockwise.
NOTE:
INT-HDP 6U0 DP *******
INT-HDL 6U0 DL *******
MODEL PREFIX
VARIATION* SERIAL NO.
ABC D
INT-HDP 6U00 DP 1
INT-HDL 6U00 DL *******
DE-DHT
6U41 C 2
6U51 D *******
Drive Unit
The model and serial number plate 1 is lo-
cated on the upper case of the drive unit.
The different models can be identified by
checking the model and serial number plate
and using the following plate.
1
1
YAMAHA MOTOR CO.,LTD.
MADE IN JAPAN
PAYS D'O R IGI N E JAPO N
A
B C D
1-1
