MX-100B

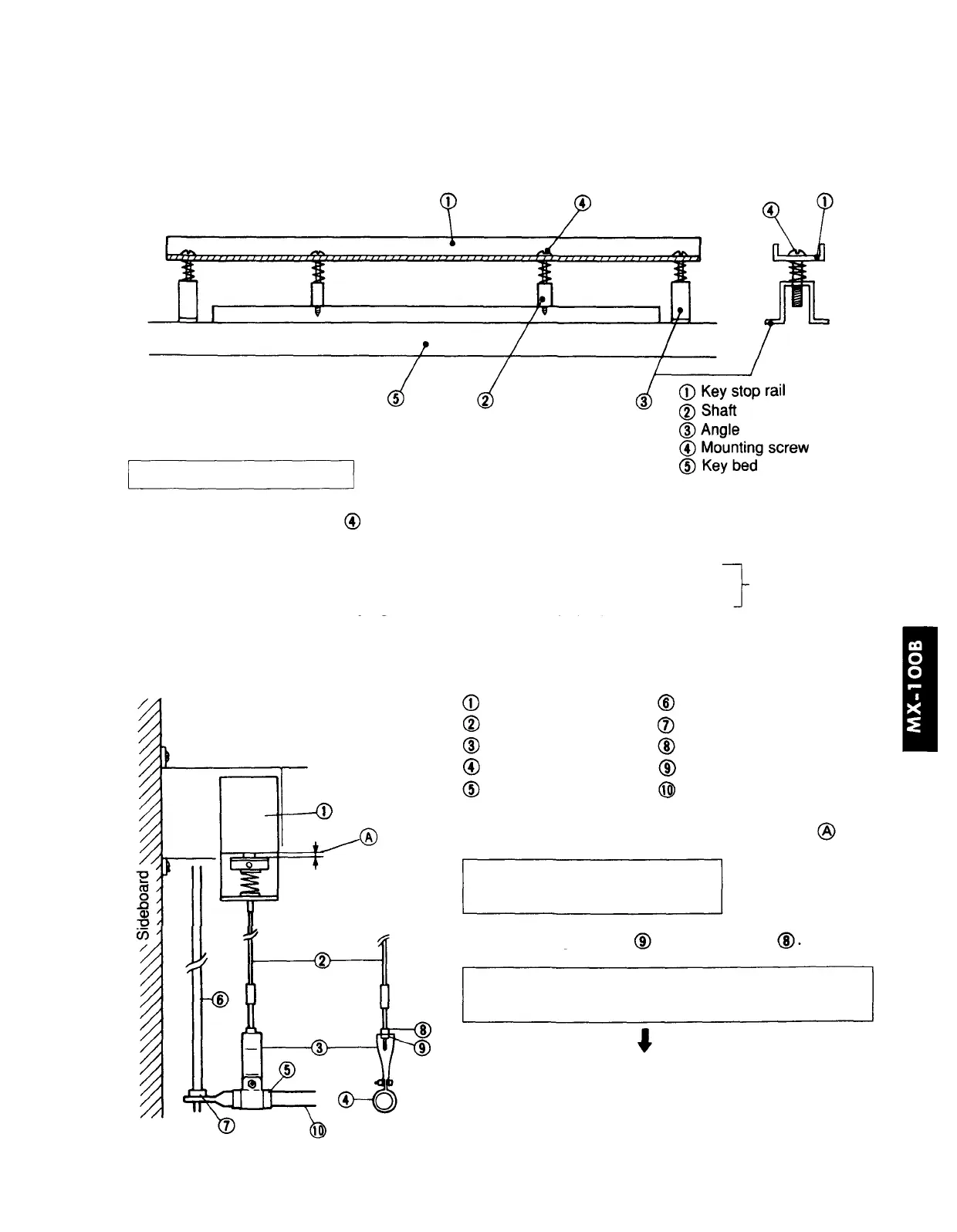

2. Adjusting the key stop rail
Height adjustment
Adjust the mounting screws
so that the gap between the top of the black keys and the key
stop rail is 0 (visually).
* If the screws are excessively tightened ... the key touch will become heavy.
notes will not
sound correctly
* If the screws are insufficiently tightened .. the keys will pop up during playback
3. Adjusting the pedal drive unit
Pedal solenoid
Wire
Pedal lever hook
Pedal lever clamp
Pedal level rubber
Pedal rod
Pedal rod dowel
Hex nut M4
Hex nut M4
Pedal lever
Adjust the length of the wire so that the gap at
is
5 mm.... for the soft pedal
3 mm.... for the damper pedal
After adjusting the nut
, tighten the nut
* Set the wire so that it is vertical in both the front/
back and left/right directions.
If the wire is slanted, the solenoid axis will be off
center, causing mechanical noise.
14
