MX80: DKC5R
The DKC5R is a thin control box which includes a volume-control slide switch. It is usually placed on the top
board. The dimensions are: 435(W) × 47(H) × 192(D) [mm]. The controller’s rear panel includes MIDI IN and
MIDI OUT jacks.
MarkII Series: DKC100R
The DKC100R controller includes a rotary encoder. On upright models, the controller is built into the front of the
top board. On grand pianos, it can be installed as a control box suspended from the keybed. The dimensions are:
435(W) × 68(H) × 217(D) [mm]. The controller’s rear panel includes MIDI IN and MIDI OUT jacks.

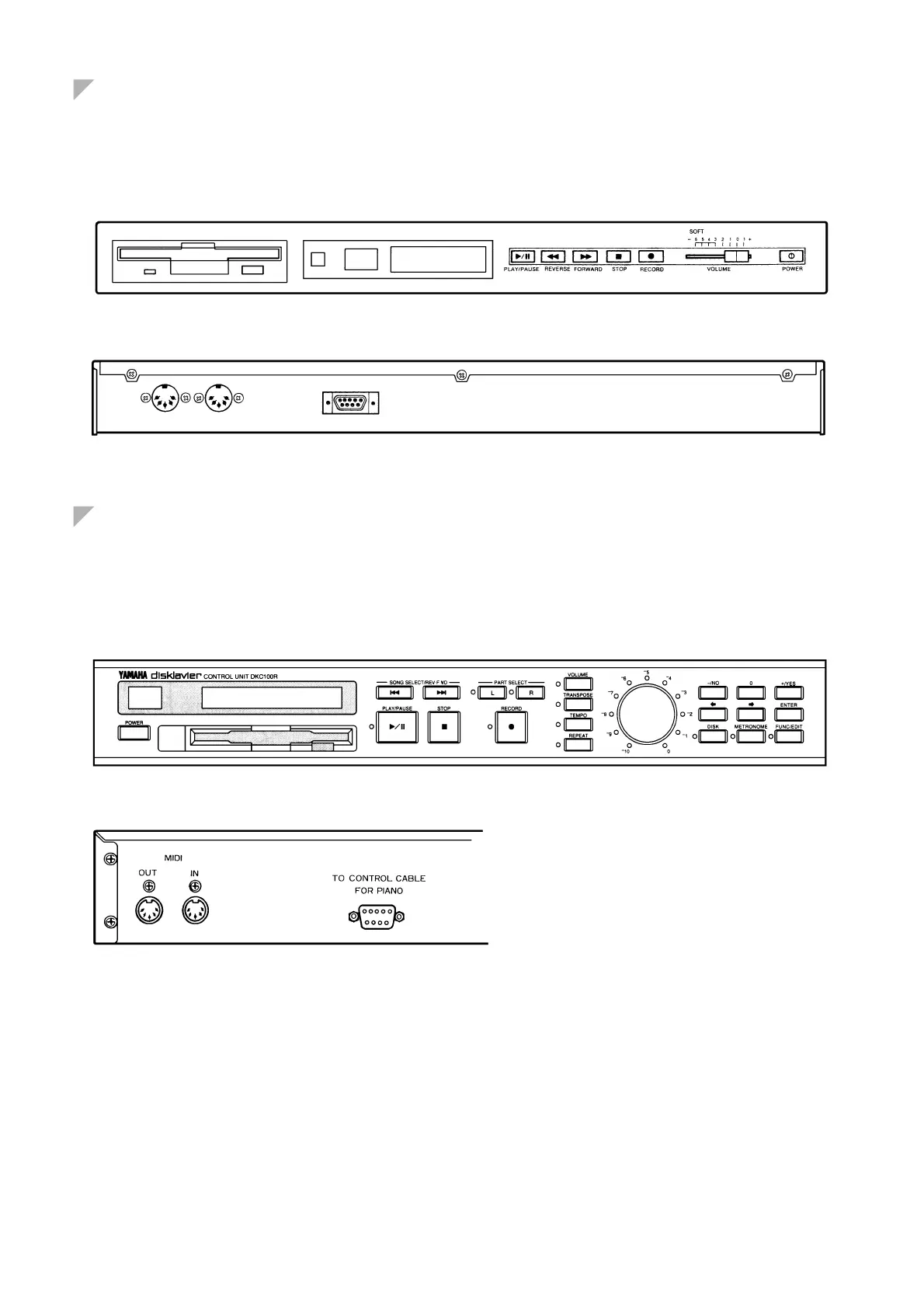

Control Box Front Panel
Control Box Rear Panel
Control Box Front Panel
Control Box Rear Panel
