II-39

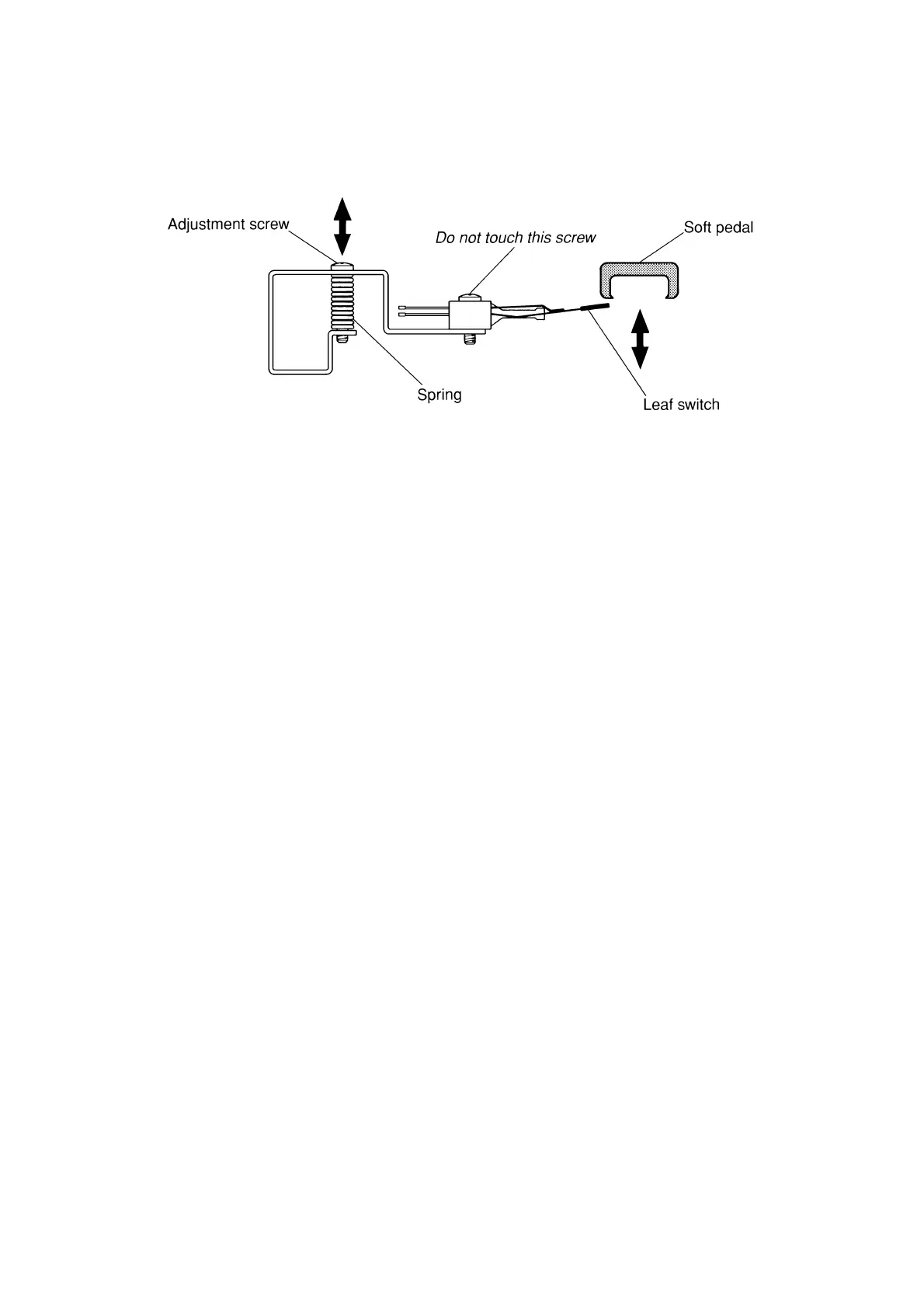

Adjusting the soft pedal and testing the pedal sensor
(Leaf switch with ON/OFF detection)
Use the adjustment screw to adjust the sensor. If the sensor is adjusted correctly, a beep should be produced
when the hammer rail has moved 2–3 mm (about 1/10 inch).
