DU1A
44
KEY SENSOR: V858590
PK-CTL: V520210
to DRIVE A-CN35
to DRIVE B-CN117
to KEY SENSOR-CN1
to MN-CN2
to DRIVE A-CN37
to DRIVE B-CN101
to CTRL IN U to CONTROLLER-CN001
N.C
to PEDAL SENSOR
-CNP
to MN-CN11

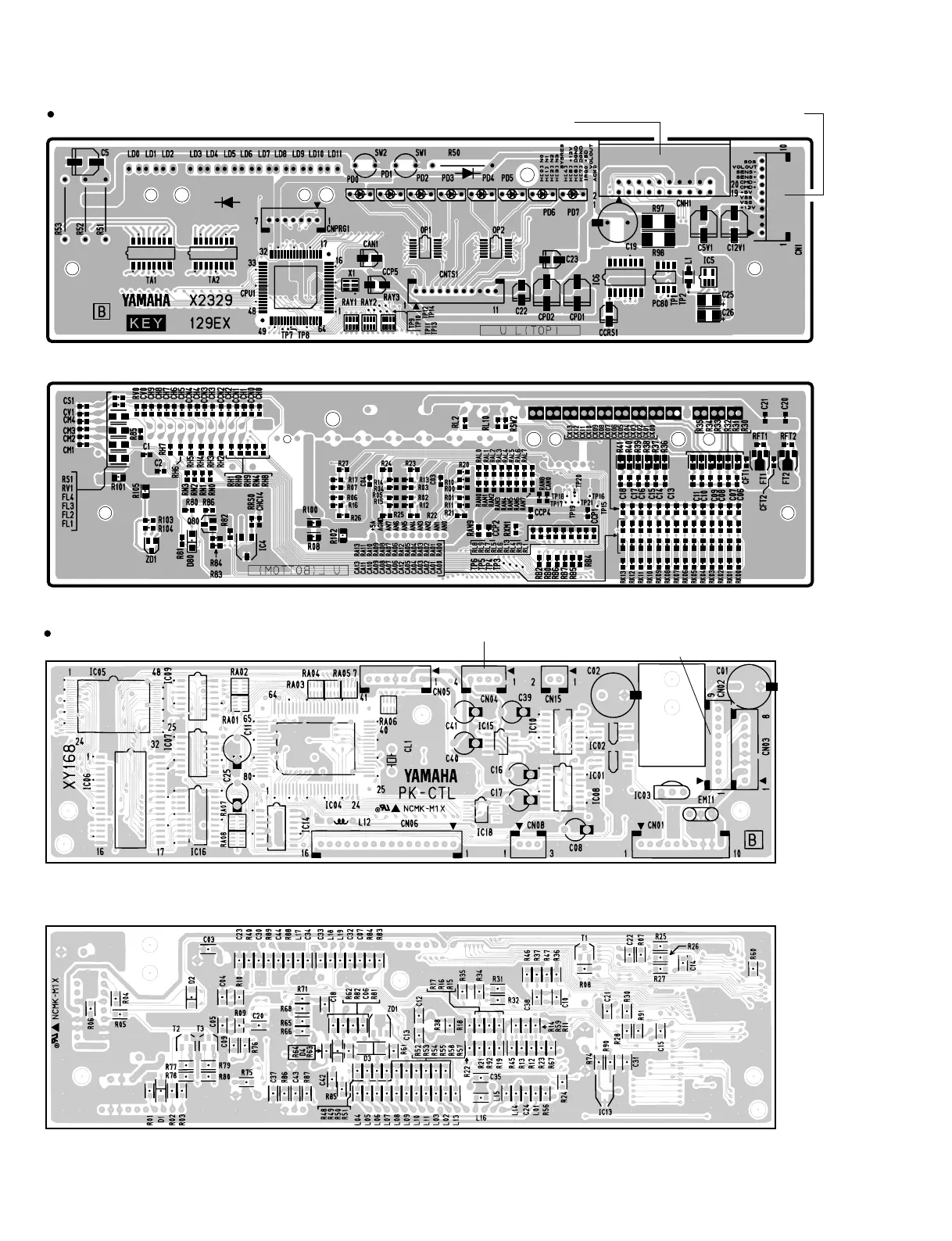

PK-CTL Circuit Board
Pattern side
Component side
to HAMMER SENSOR-CN1
to PK-CTL-CN02
to MN-CN2
Pattern side
Component side
KEY SENSOR Circuit Board
