DU1A
21

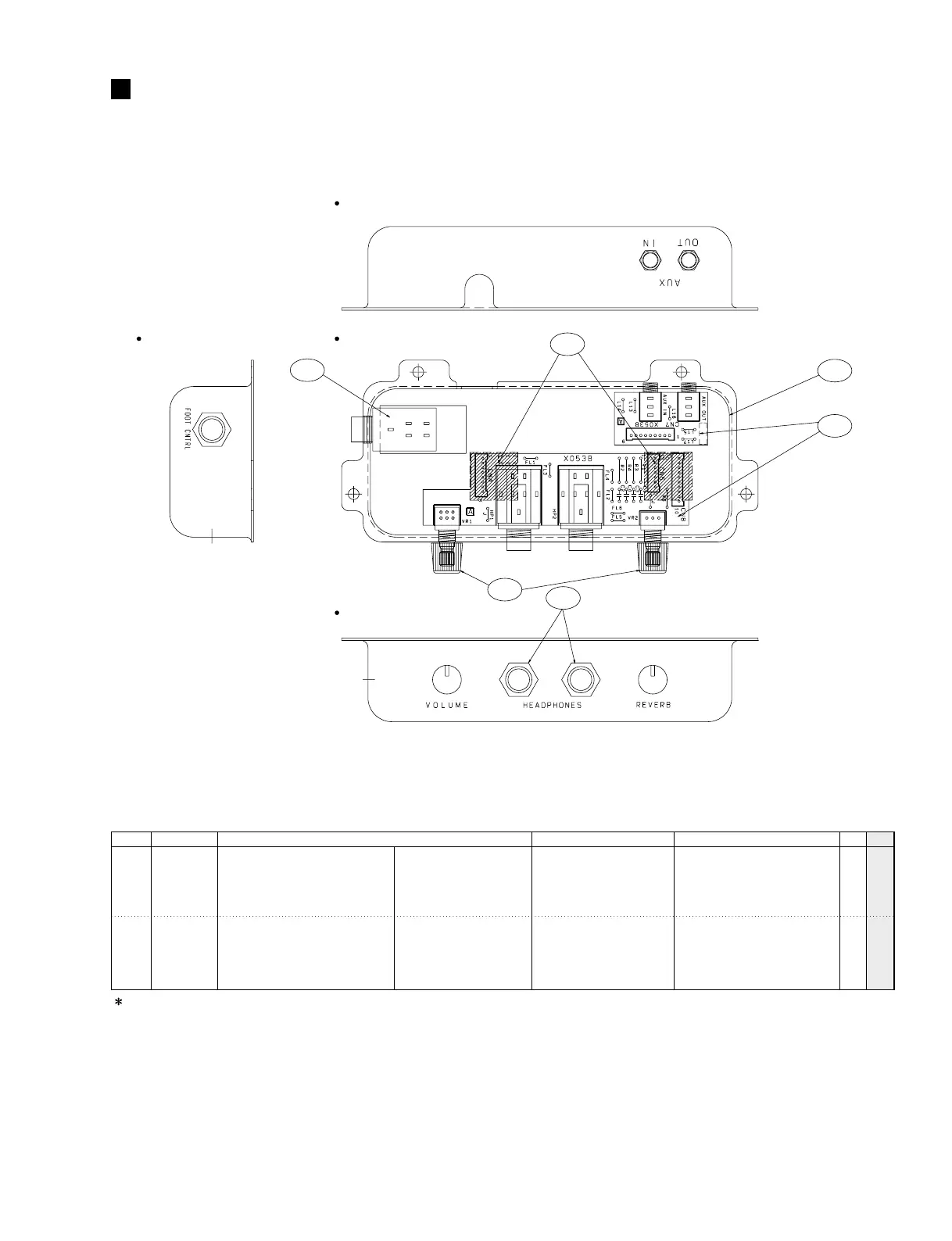

SWITCH BOX UNIT
60
30
21G
50
10
20
Rear view
Top viewLeft side view
Front view
REF NO.
PART NO. DESCRIPTION REMARKS
QTY
: New Parts RANK: Japan only
*
*
RANK
SWITCH BOX UNIT DU1A
Switch Box Unit (V899830)
10 Switch Box
20 Circuit Board HP
30 Knob Black VOLUME,REVERB 2 03
50 Foot SJ-5023 202
60 Circuit Board CTRL IN U 07
21G Hexagonal Nut 12.0X14X2 MFZN2BL 2 01
--
V8888700
V9000400
CB028970
CB826590
VT836500
VB508600
