CONTROLS
4-3
J0C

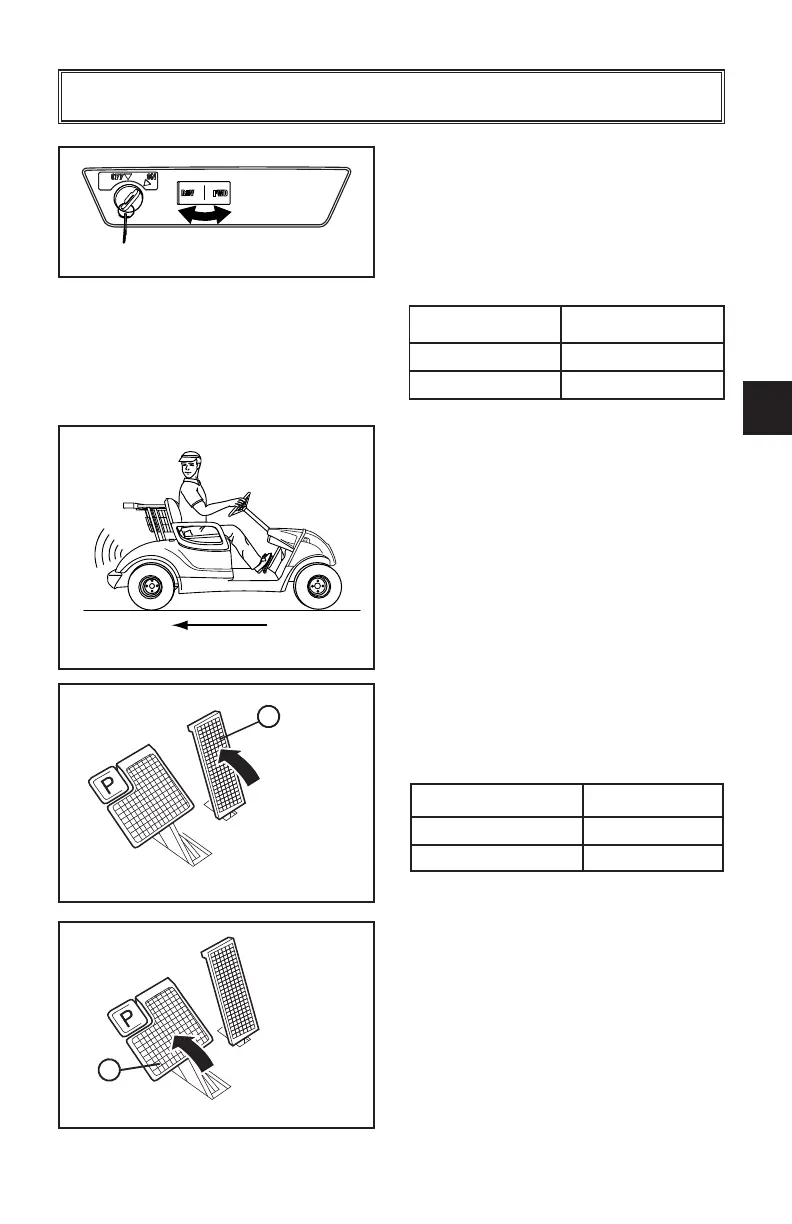

DRIVE SELECT SWITCH
The drive select switch is used to
shift the golf car into forward or
reverse. After coming to a complete
stop, move the lever to the desired
position.
Switch Position Car Movement
FWD FORWARD
REV REVERSE
TIP
The reverse alarm will sound when
the drive select switch is turned to
“REV.”
ACCELERATOR PEDAL
The accelerator pedal controls the
golf car’s speed.
Action Car Speed
Depress pedal Increase
Release pedal Decrease
å Accelerator pedal
BRAKE PEDAL
Press down on the brake pedal to
stop the golf car.
∫ Brake pedal
Y-2803
BEEP
Y-2 0
A
A
Y-2802
Y-2 1 a
