Mounting
This charger is not designed for
on-board use. Improper mounting
or installation could result in a risk
of fire or damage to the golf car.
Mount the charger on a shelf or on
the wall with adequate ventilation.

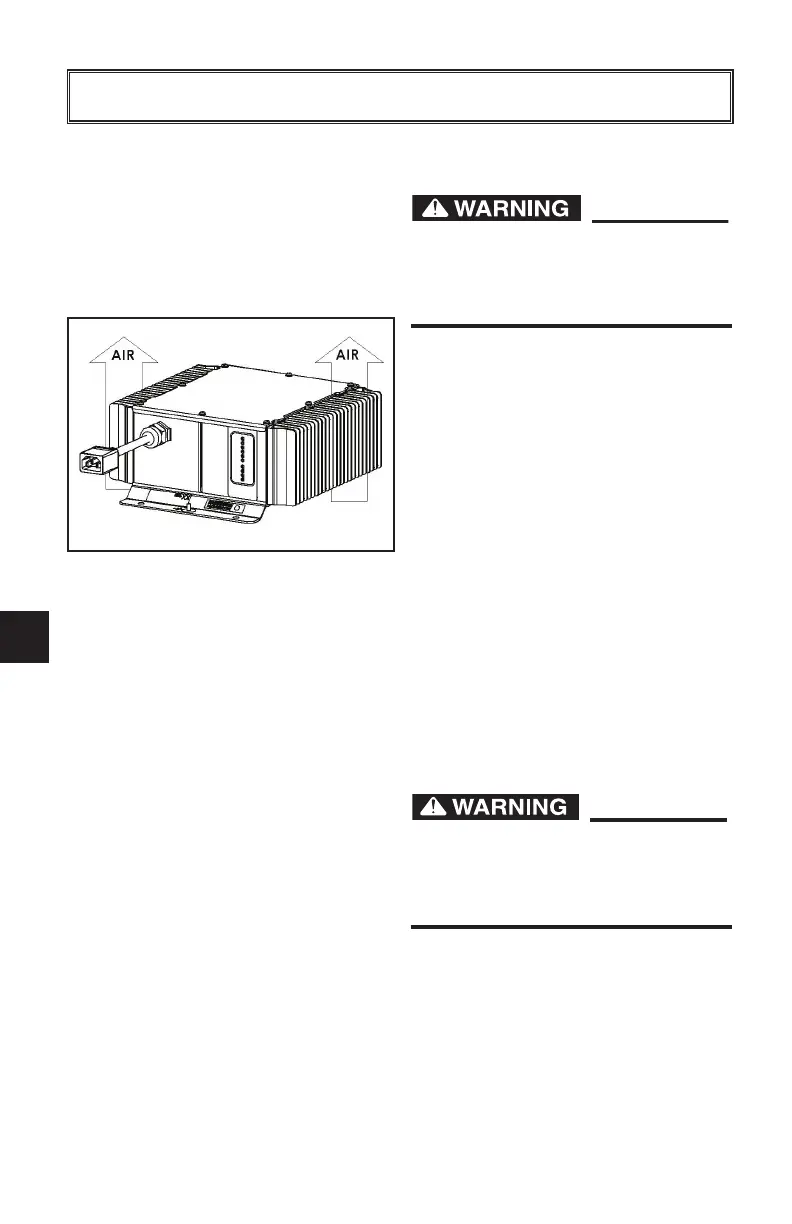

Ideally it will be mounted horizontally
with airflow from below. If it will be
mounted vertically, it is recommended
that the AC-input cord be at the lower
end of the charger.
Keep the charger free of oil, dirt, mud
or dust to keep the cooling fins
operating as efficiently as possible.
Mount the charger by the mounting
plate using appropriate fasteners.
TIP
The charger’s AC plug must be locat-
ed at least 46 cm (18") above the
ground and the display visible to the
user.
Chargers can ignite flammable
materials and vapors. Do not use
near fuels, grain dust, solvents or
other flammables.
