7-21
J0C
MAINTENANCE
Parking Brake Release
Adjustment
Before performing parking brake
release adjustment, adjust brake
pedal free play.
1. Apply pressure to the parking
brake pedal until the brake nail
catches the first latch position on
the sector.
2. Loosen the locknut and turn the
bolt counterclockwise until it con-
tacts the sector.
3. Turn the bolt clockwise 3/8 (120
degrees), then tighten locknut.

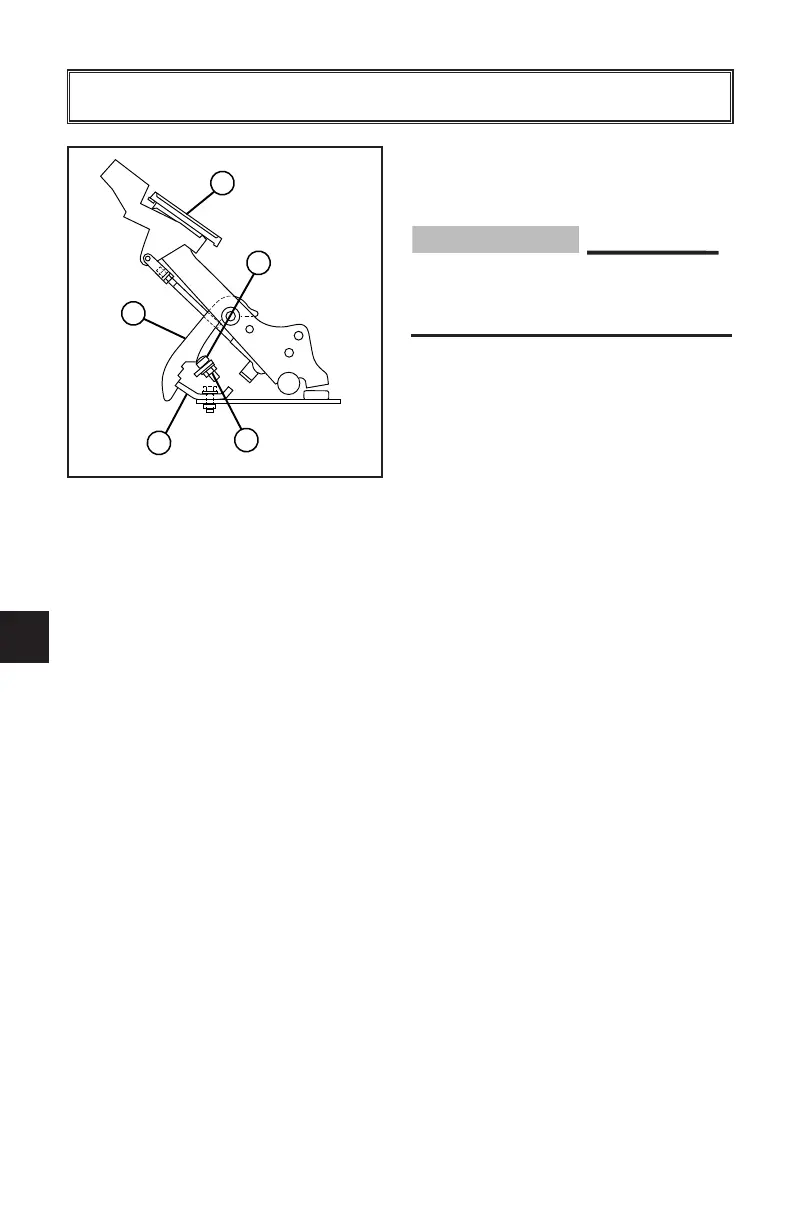

1 Parking brake pedal
2 Bolt
3 Locknut
4 Brake nail
5 Sector
NOTICE
Y-2823
1
2
3
4
5
