10. Lift the generator 20 cm (7.87 in) off the ground
using a winch or other suitable lifting device.

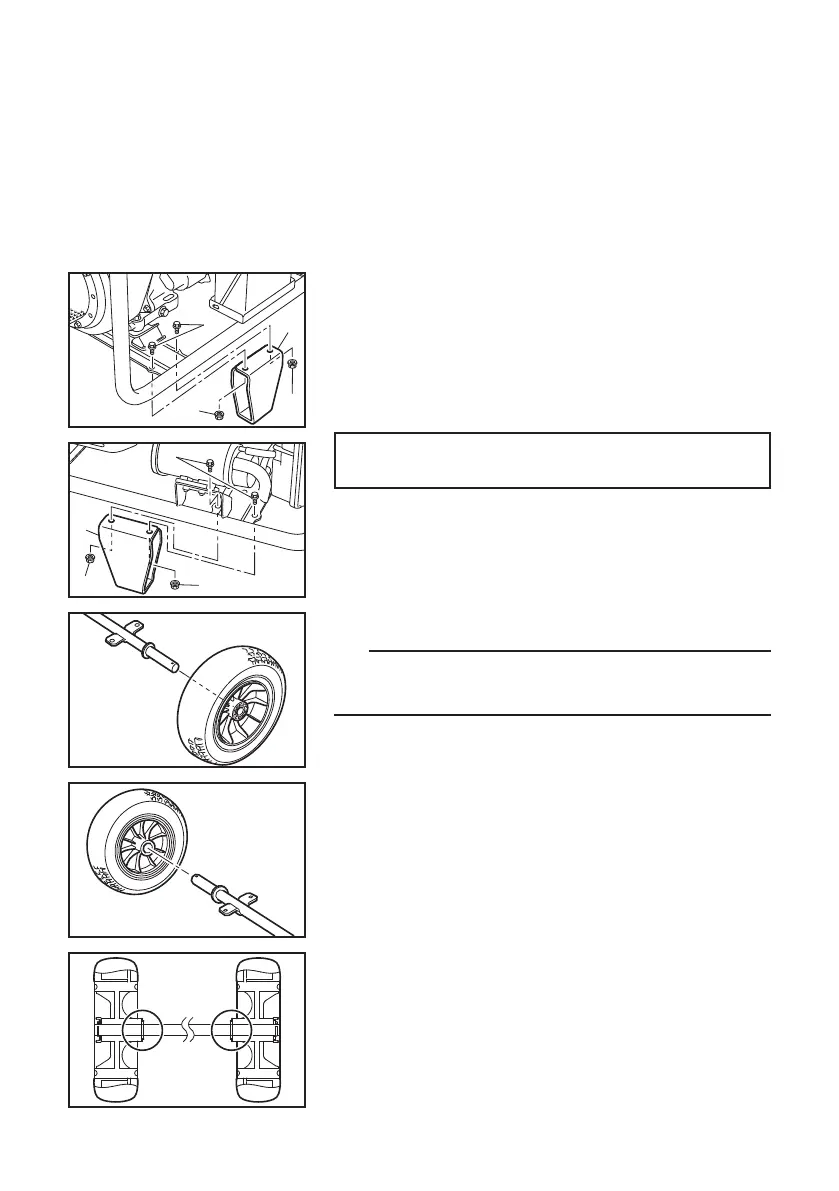

11. Fasten the main stand to the left side of the gener-
ator frame as viewed when looking at the control
panel with the bolts and nuts.
d Bolt (8 × 16 mm Flange bolt)
f Main stand
g Nut (8 mm Flange nut)
Tightening torque:
16 N·m (1.6 kgf·m, 12 lb·ft)
12. Install the wheels into wheel axle frame.
TIP
Make sure the installation direction of the wheels are
correct.
d
f
g
g
g
g
f
d
