– 22 –

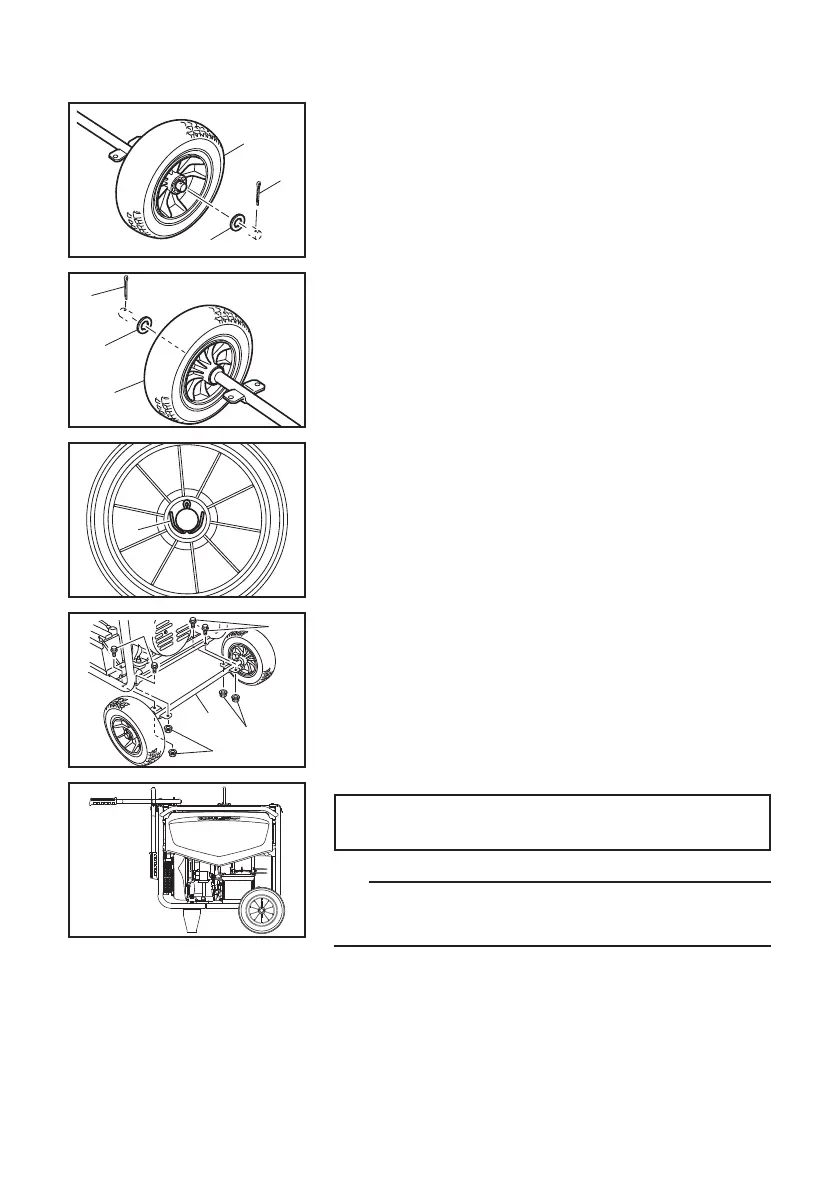

13. Install the washers into wheel axle.
14. Insert cotter pins into wheel axle frame, and then
bend as shown in the illustration.
h Wheel
j Washer
k Cotter pin
j
h
k
k
;
z
l
z
l
h
j
k
15. Fasten the wheel axle frame to the generator
frame with the bolts and nuts. Make sure that the
wheel axle frame is on the right side of the control
panel.
l Bolt (8 × 16 mm Flange bolt)
; Wheel axle frame
z Nut (8 mm Flange nut)
Tightening torque:
16 N·m (1.6 kgf·m, 12 lb·ft)
TIP
Refer to the illustration and confirm the position of the
wheel kit.
