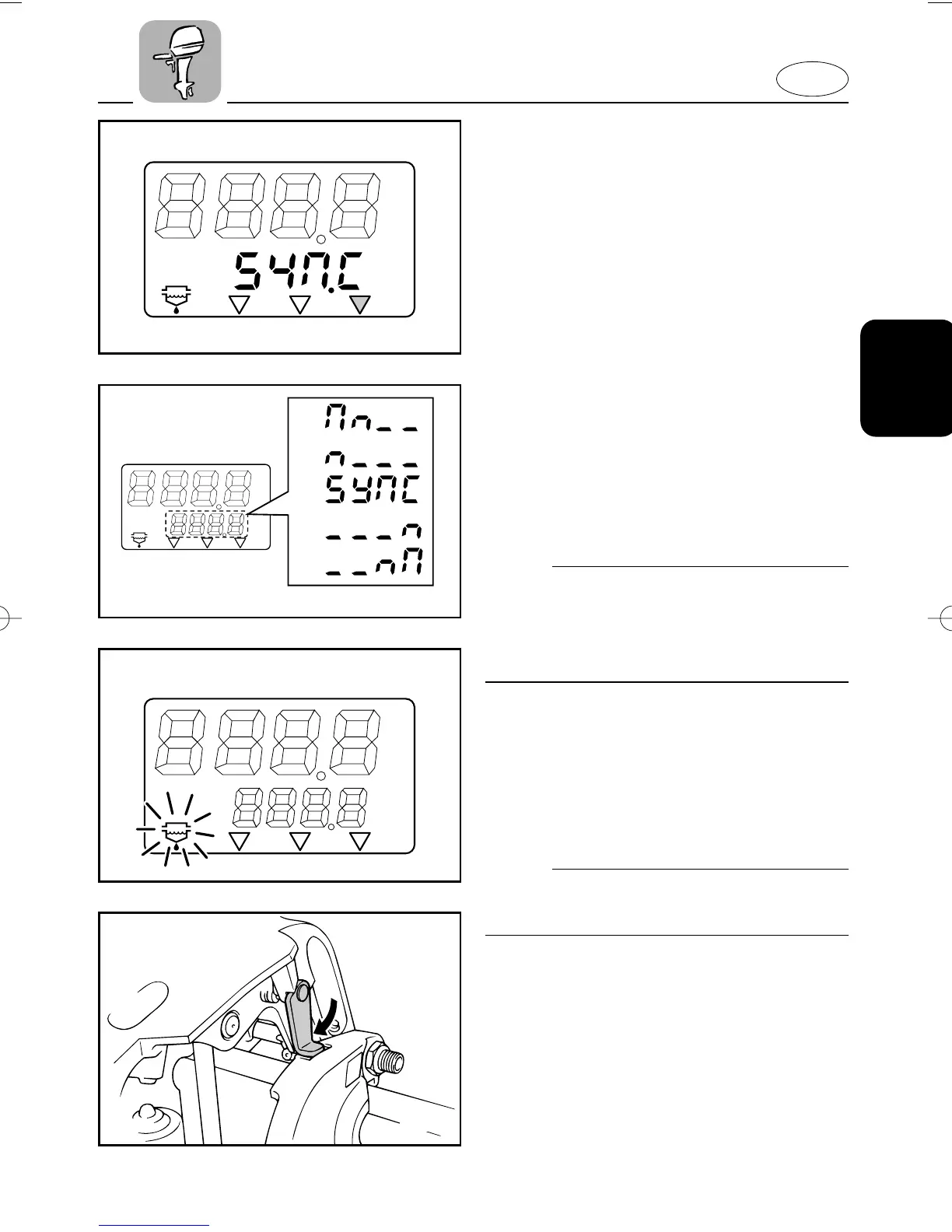

Twin Engine Speed Synchronizer
This meter displays the difference in
engine speed (r/min) between the Port
and Starboard engines for reference pur-
poses when synchronizing the two
engines’ speeds.
Repeatedly push and release the “mode”
button until the indicator on the face of
the meter points to “SYNC”.
1 Port side engine speed is higher
2 Port side engine speed is slightly higher
3 Engine speed is synchronized evenly
between Port and Starboard side engines
4 Starboard side engine speed is slightly
higher
5 Starboard side engine speed is higher
NOTE:
If the two engines’ speeds are not syn-
chronized while cruising, they can be syn-
chronized by adjusting trim angle or
throttle.
EMU01207
Water Separator Warning Indicator
If the water which has been separated
from fuel in the water trap exceeds a spe-
cific volume, the indicator will blink show-
ing the need for water to be drained.
NOTE:
This indicator only operates when a water
separator sensor is equipped.
EMU00157
TILT SUPPORT LEVER
To keep the outboard motor in the tilted-
up position, lock the tilt support lever to
the clamp bracket.
