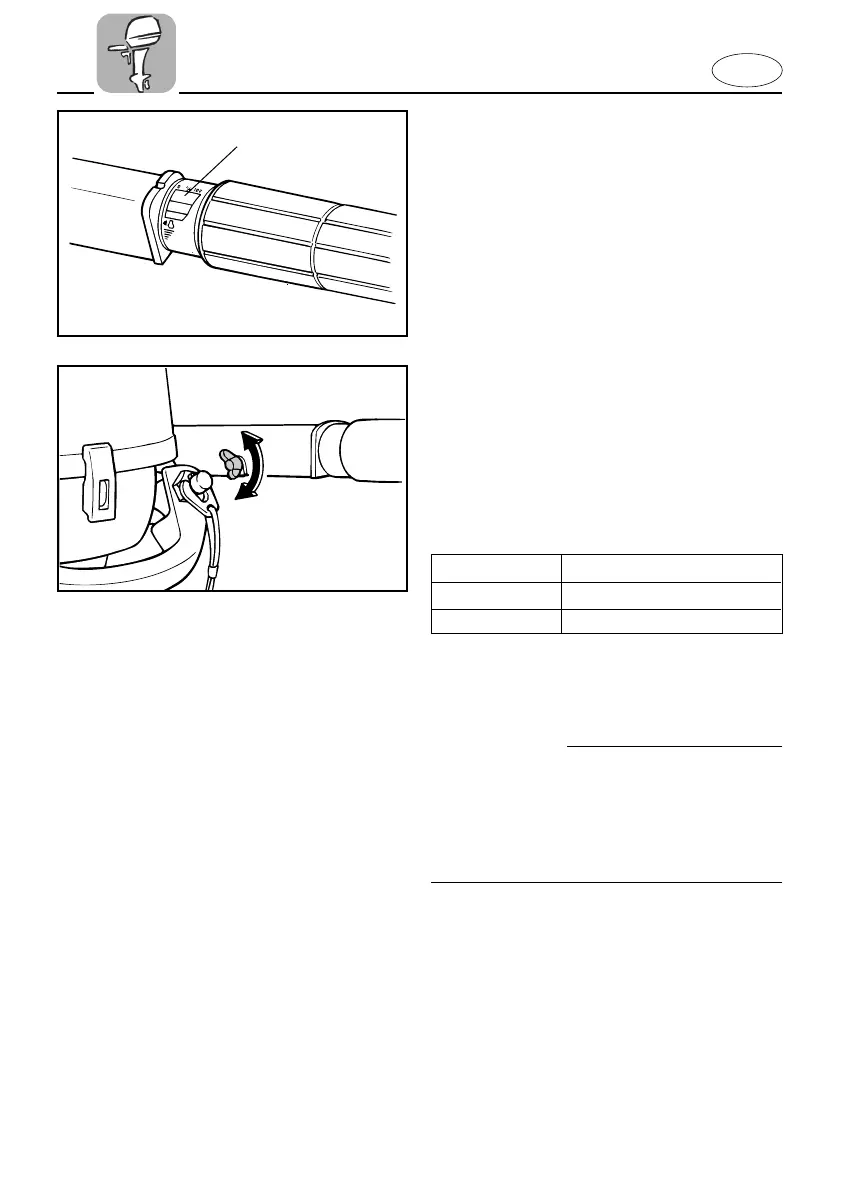

Throttle Indicator
The fuel consumption curve on the throt-
tle indicator shows the relative amount of
fuel consumed for each throttle position.
Choose the setting that offers the best
performance and fuel economy for the
desired operation.
1 Throttle indicator
Resistance Knob/Screw
Increase Turn clockwise
Decrease Turn counterclockwise
EMU01293
Throttle friction adjusting screw/ knob
A friction device in the tiller handle pro-
vide resistance to movement of the throt-
tle grip.
This is adjustable for operator preference.
An adjusting screw/knob is located within
the tiller handle.
When constant speed is desired, tighten
the adjusting screw/bolt to maintain the
desired throttle setting.
w
Do not over tighten the friction adjusting
screw/ knob.
If there is too much resistance, it may be
difficult to move the throttle grip, which
could result in an accident.
