EMU00108

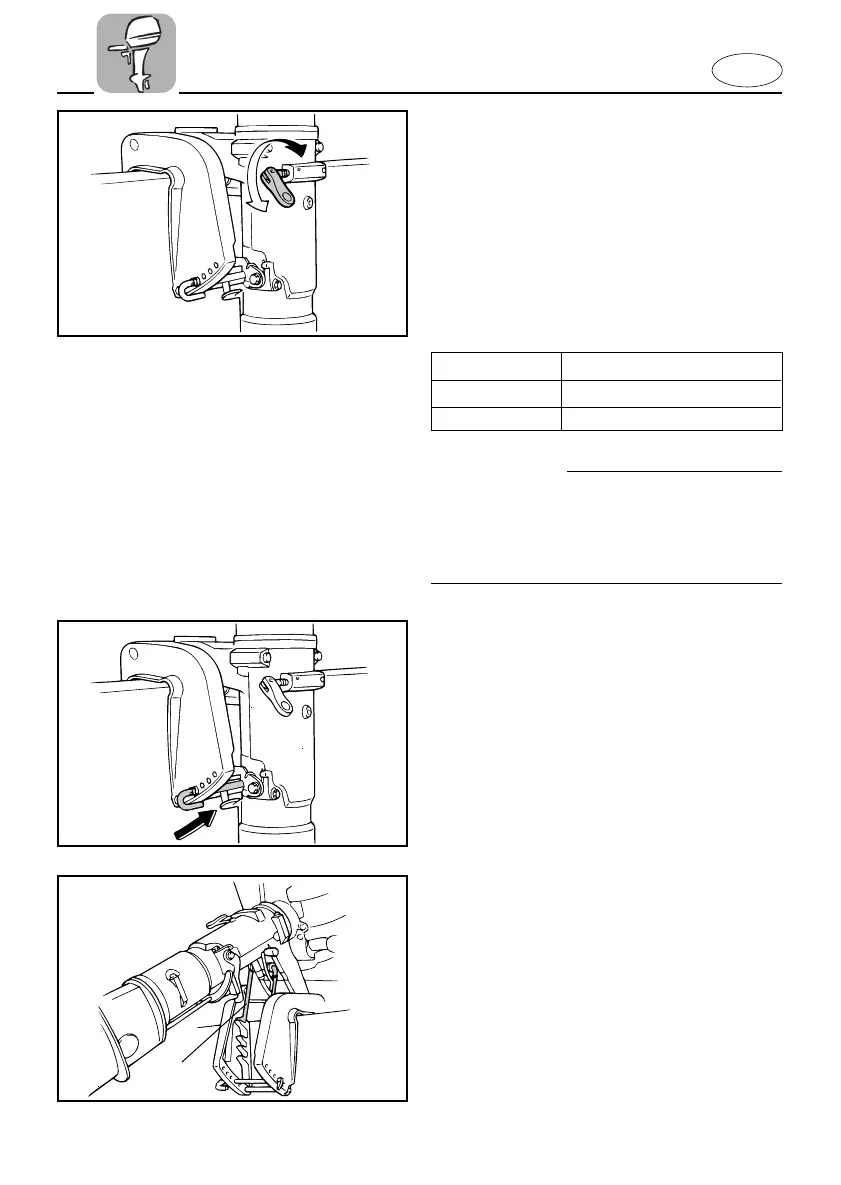

STEERING FRICTION ADJUSTING
SCREW(for Tiller control model)
A friction device provides resistance to
steering movement. This is adjustable for
operator preference. An adjusting
screw/bolt is located on the swivel brack-
et.
EMU01296*
Adjustment
w
Do not over tighten the friction
screw/bolt. If there is too much resis-
tance, it may be difficult to steer, which
could result in an accident.
EMU01297
TRIM ANGLE ADJUSTING ROD
The position of the trim angle adjusting
rod determines the minimum trim angle
of the outboard motor in relation to the
transom.
Resistance Screw/Bolt
Increased Turn clockwise
Decreased Turn counterclockwise
EMU00156
TILT SUPPORT BAR
The tilt support bar 1 keeps the outboard
motor in the tilted up position.
