3-22

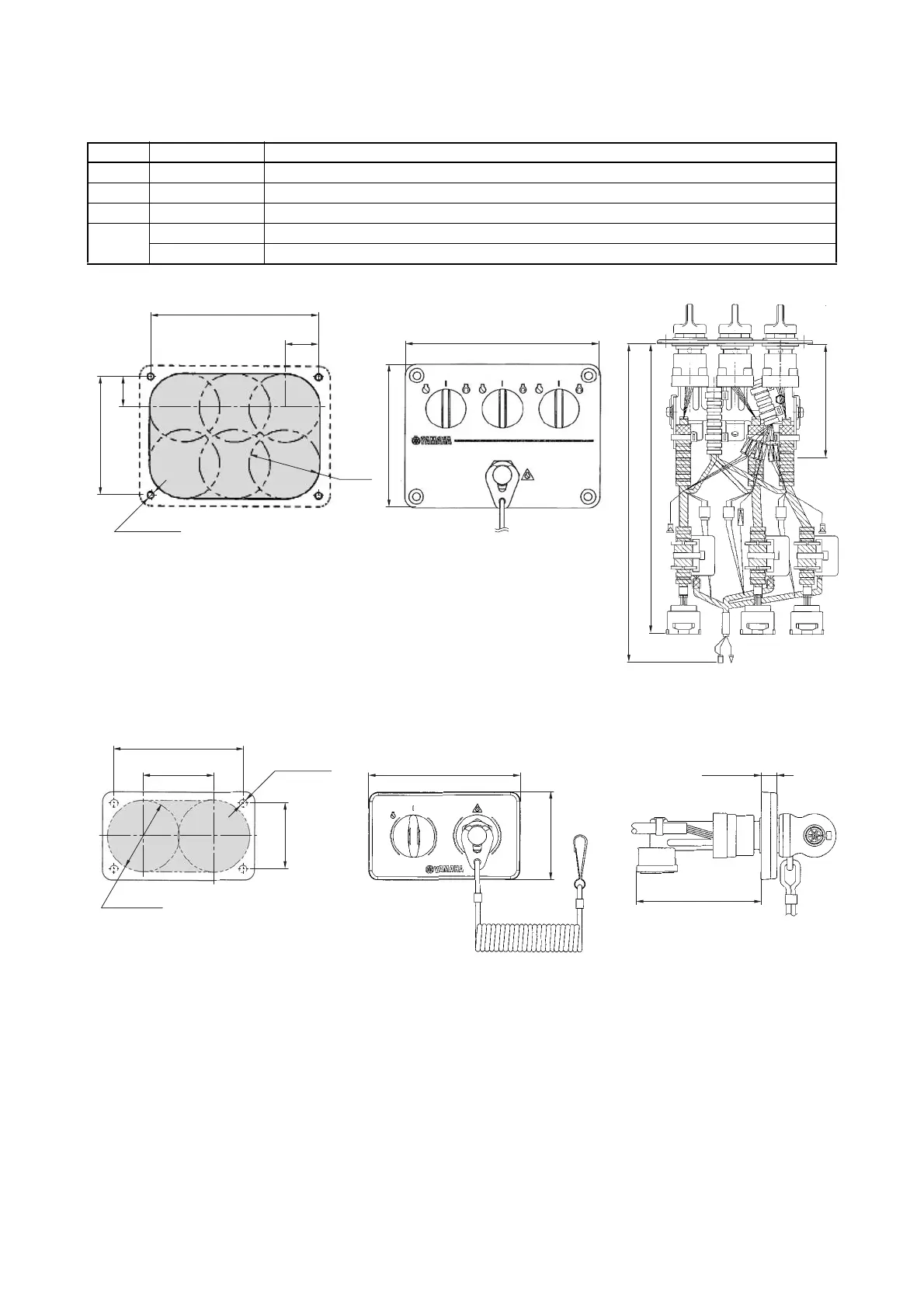

REMOTE SWITCH TYPES AND APPLICATIONS
TRIPLE IG SWITCH
To be continued.
Ref. No. Part No. Description
1 6X5-82570-02 For Digital Network System (6Y8), Main station helm
2 6X6-82570-50 For Digital Network System (6Y9), Main station helm
3 6X6-82570-20 For Digital Network System (6Y8), 2nd station helm
4
6X6-82570-70 For Digital Network System (6Y9), main station helm, w/o buzzer, Requires [No.2]
6X6-82570-F0 For Digital Network System (6Y9), 2nd station helm, w/ buzzer
Cut out shaded areaCut out shaded areaCut out shaded area
128 (5.04)
25.9 (1.02)
24.25 (0.95)
93 (3.66)
54
(2.13)
5.5 (0.22)
110 (4.33)
145 (5.71)
510 (20.08)
370 (14.57)
*130 (5.12)
* Minimum mounting depth (for reference)
Cut out shaded area
1
2
mm (in.)
mm (in.)
66 (2.60)
Cut out shaded area
1
14 (4.49)
53 (2.09) 12 (0.47)
97.4 (3.83)
49.4 (1.94)
54 (2.13)
5.6 (0.22)
100 (4.00)
