3-23
REMOTE SWITCH TYPES AND APPLICATIONS

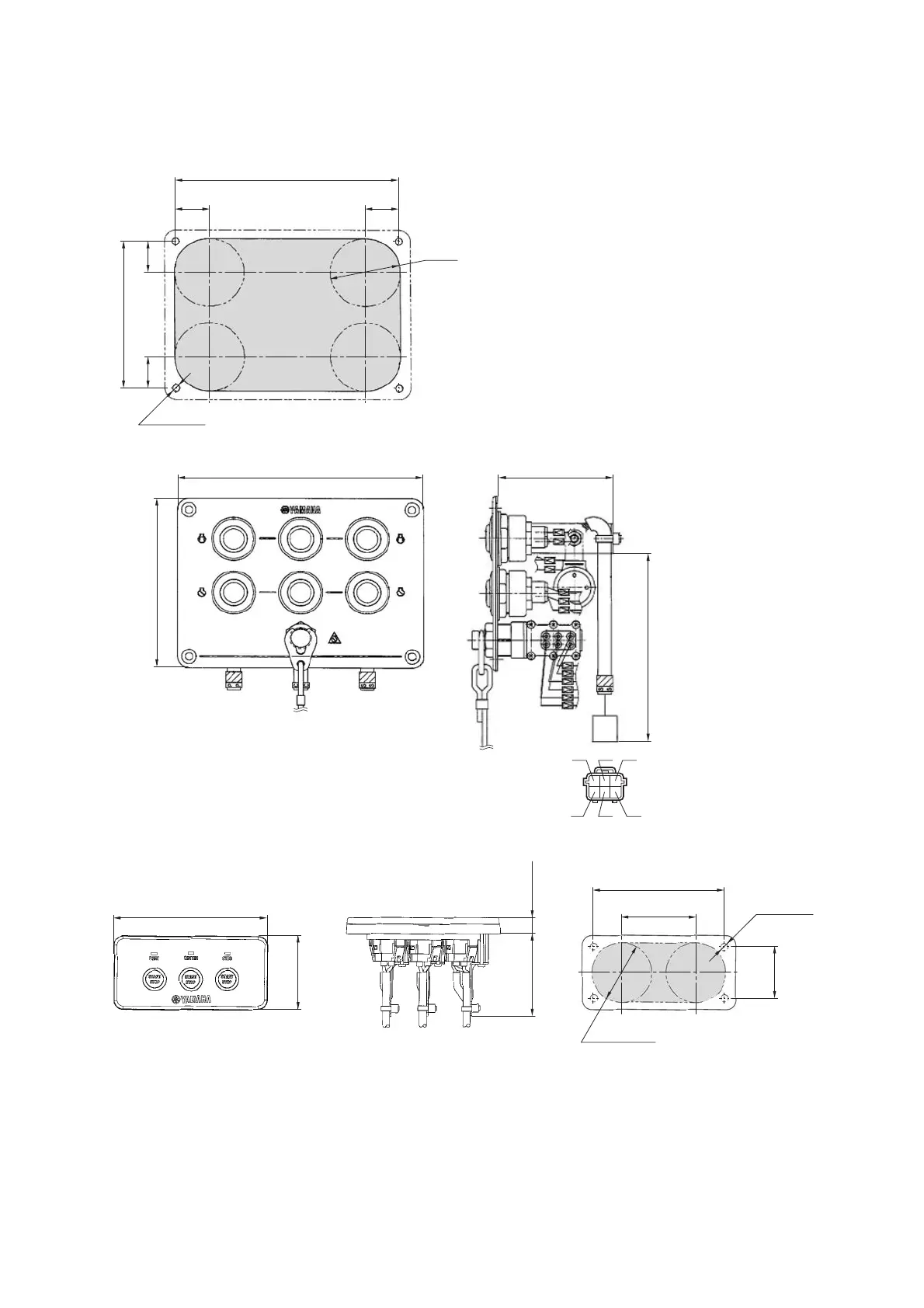

TRIPLE IG SWITCH
Cut out shaded area
130 (5.12)
184 (7.24)
Cut out shaded areaCut out shaded areaCut out shaded area
167 (6.57)
25 (0.98)
25 (0.98)
113 (4.45)
24 (0.94) 24 (0.94)
52.4
(2.06)
5.5 (0.22)
mm (in.)
140 (5.51)
86 (3.39)
Or
YBr
P
W
B
3
4
mm (in.)
55 (2.17)
Cut out shaded area
1
14 (4.49)
55.2 (2.17)
97.4 (3.83)
5.6 (0.22)
61.5 (2.42) 12 (0.47)
38.4
(1.51)
44.45 (1.75)
