Yamaha F40GET - Page 113

3-25
REMOTE SWITCH TYPES AND APPLICATIONS

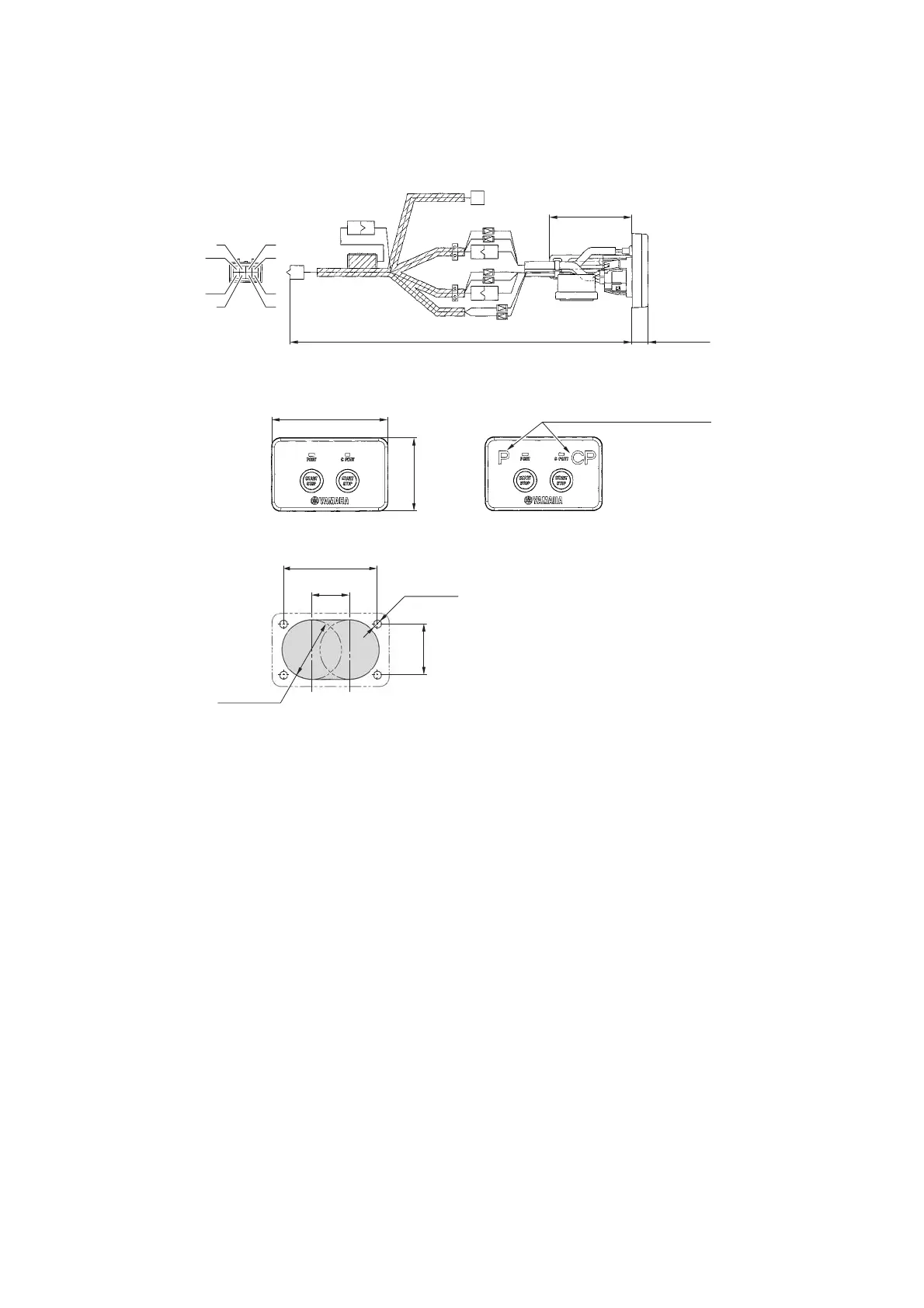

QUAD IG SWITCH
2
mm (in.)
EX: P/CP SW panel
450 (17.7) 12 (0.47)
5.6 (0.22)
87 (3.43)
61.5 (2.42)
28.3 (1.11)
70.4 (2.77)
55 (2.17)
38.4
(1.51)
44.5 (1.75)
The recognition letter such as
P, CP, S, CS is stamped on the
surface protection film.
Cut out shaded area
P
Br
L/W
Y
L/W
Y
P
Br
