5-39
Fuel tank
OUT
IN
(*1)
(*2)
6Y5-83553-N0 :
2.5 m (8 ft)
688-82520-00
6Y5-85752-02
Speed hose (* 1)
688-8258A-50 (5 m)
-60 (6 m) -70 (7 m)
6K1-8258A-40 (8 m) 61B-8258A-00 (9.5 m)
6Y5-83553-F1 :
8 m (26 ft)
GPS
Remote
Oil Tank
TACH
FUEL
Engine
Oil Tank
NMEA
0183
SPEED
2-stroke oil injection
(* 1) Select either speedometer or GPS (NMEA0183) If GPS is connected, speed hose is not required. (* 2) Water separator (Market obtainable)
6R3-85721-30 : 3 m (10 ft)
-50 : 5 m (16 ft) -80 : 8 m (26 ft)
6Y5-83653-00 : 5 m (16 ft)
-10 : 6 m (19 ft) -20 : 7 m (23 ft) -30 : 8 m (26 ft) -40 : 9 m (29 ft) -50 : 10.5 m (34 ft)
6Y5-85721-F0
6Y5-87122-S0
6Y5-8350T-90
Speed hose (* 1)
GPS
NMEA
0183
6Y5-85721-F0
SPEED/FUEL
(+)
(+)

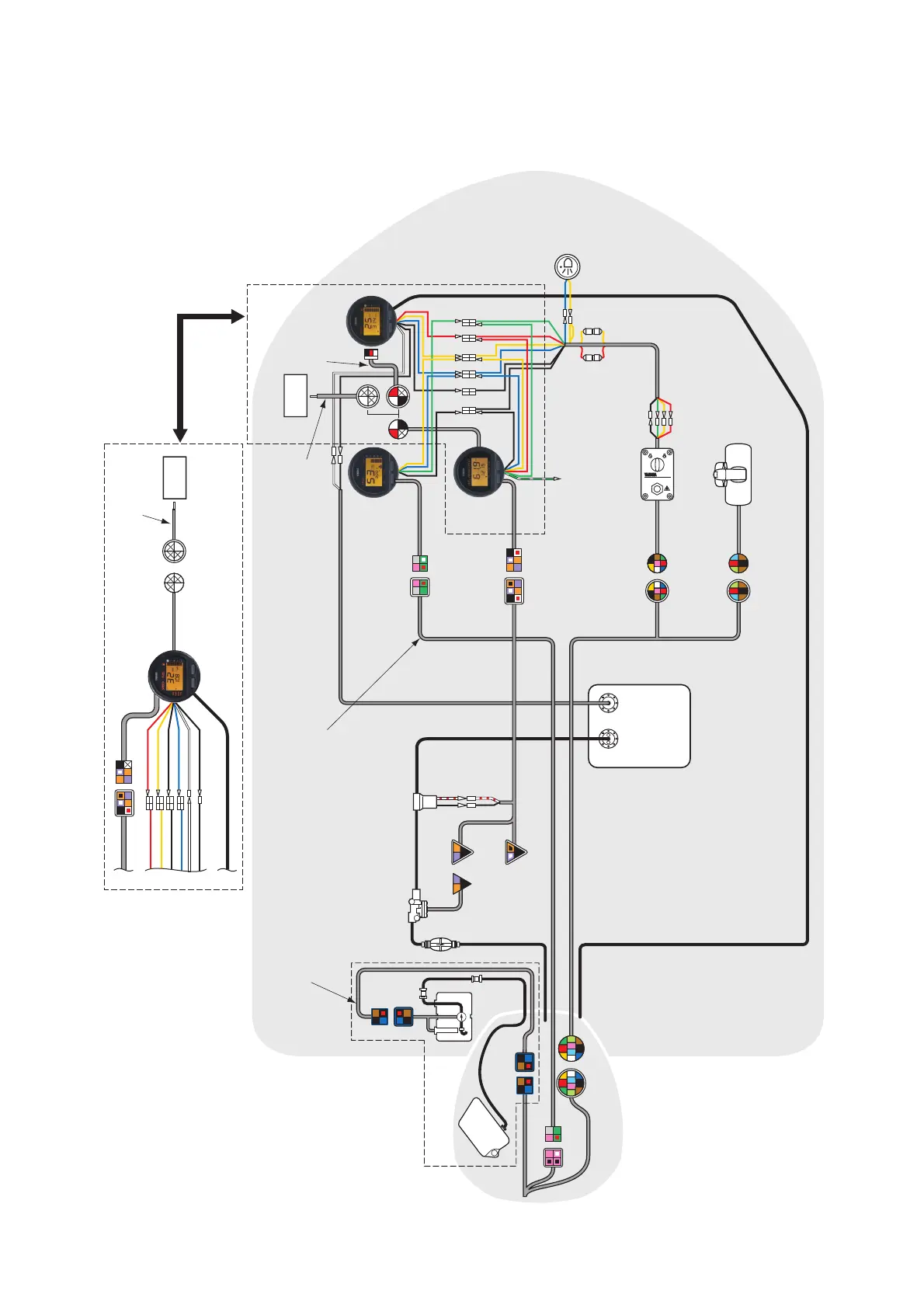

WIRING DIAGRAMS
DIGITAL METER (6Y5)
SINGLE ENGINE W/ BINNACLE RC
Above 115 w/ oil injection (except 250G),
Above F115 (Mechanical RC)
