Multi-sensor (OP)
Speed sensor
FUEL TANK 2
FUEL TANK 1
FUEL TACH(C)TACH(S) TACH(P) SPEED
Coolant press. sensor (OP)
ECM
Trim sensor
Coolant press. sensor (OP)
ECM
Trim sensor
C
S
Coolant press. sensor (OP)
ECM
Trim sensor
Fuse (10A)
(+)
(GND)
NMEA
0183
GPS
Multi-hubMulti-hubMulti-hub
Multi-hub
Resistor
Cap
Cap
CapCap
Resistor
Cap
Cap

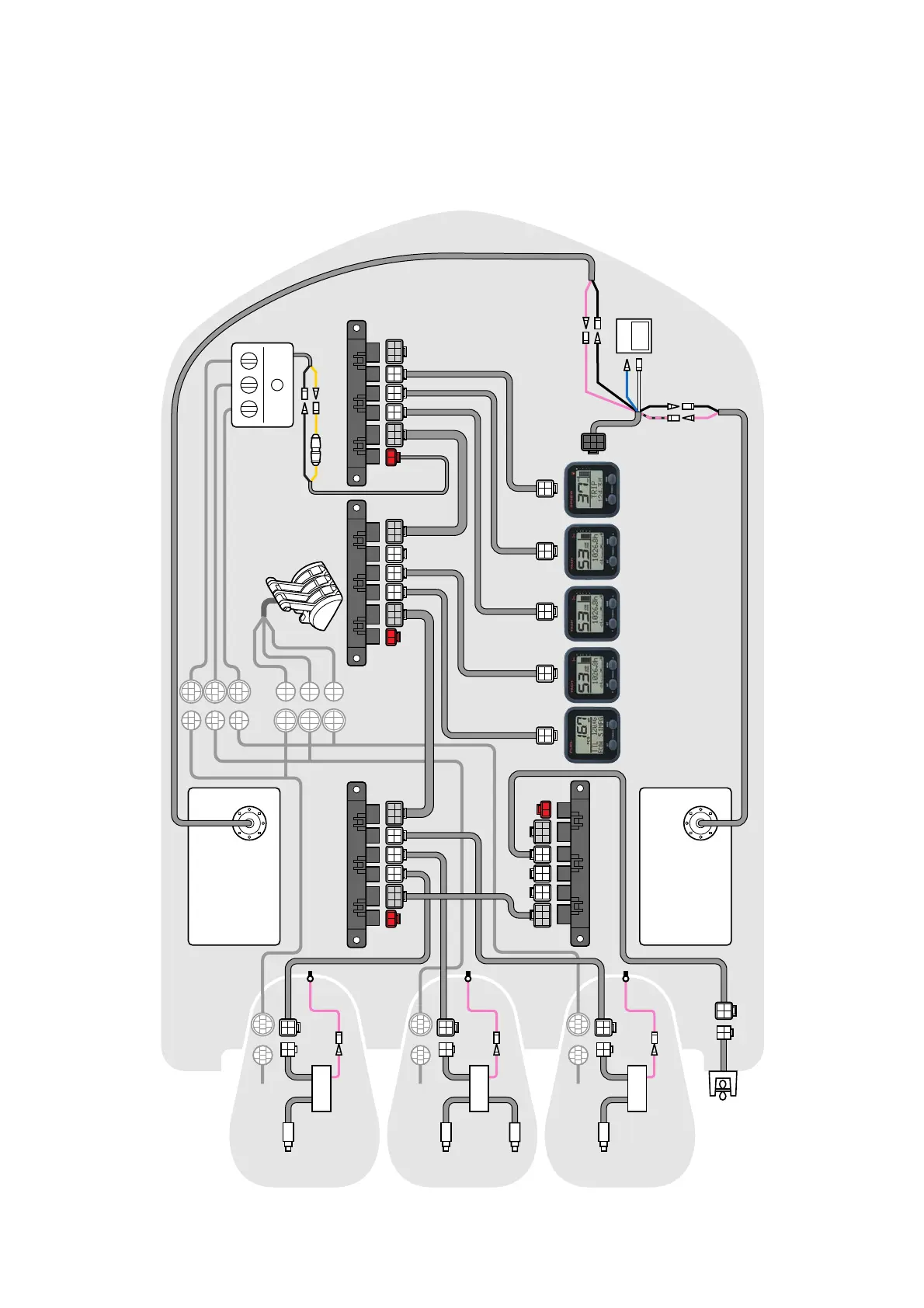

NETWORK WIRING DIAGRAMS
FUEL INJECTED F30-F250 [Mechanical RC] & HPDI ENGINES
TRIPLE ENGINE APPLICATION
