OUTBOARD MOTOR DIMENSIONS

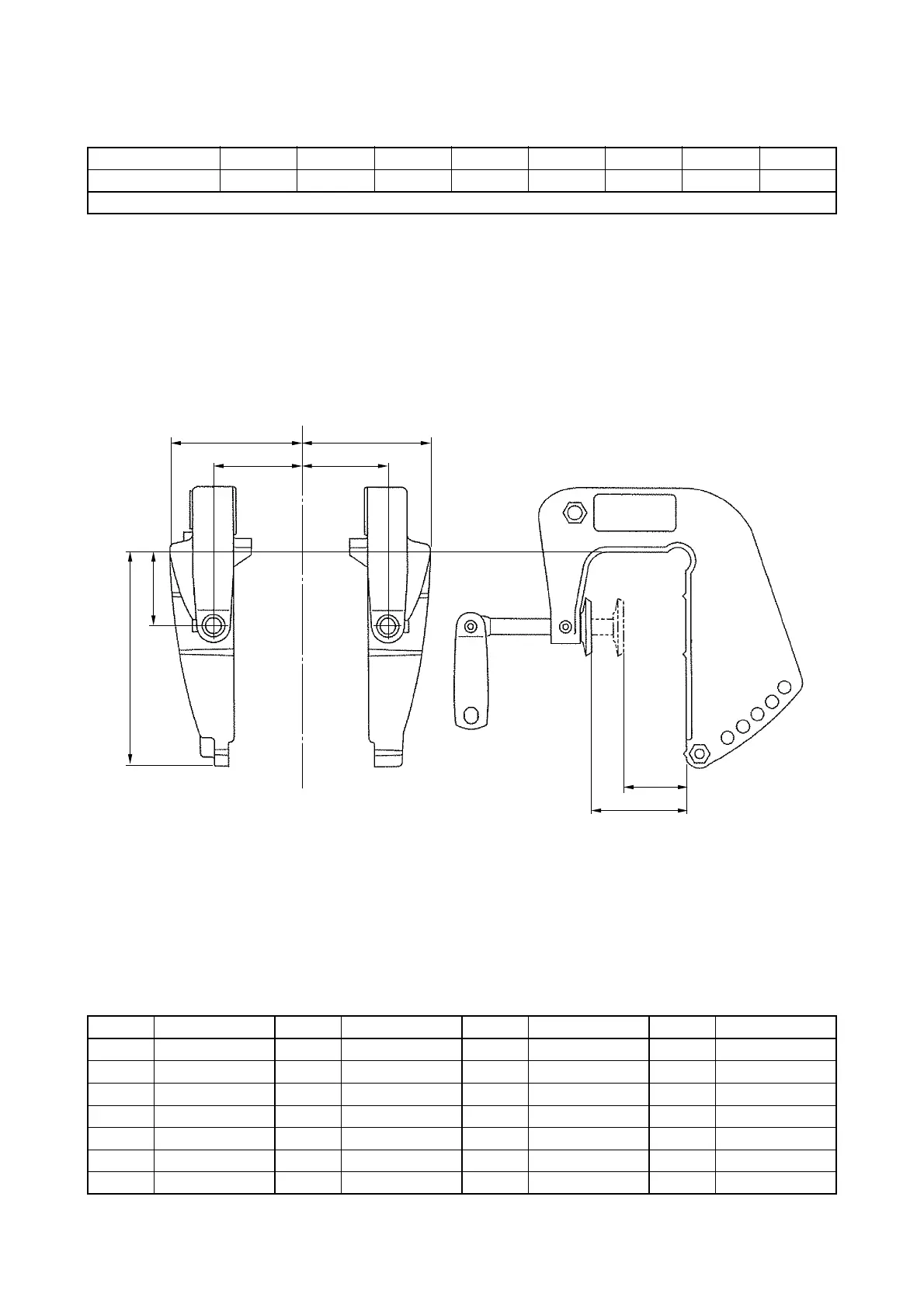

CLAMP BRACKET DIMENSIONS
Global model 4AC 5C 5CS F4B F5A F6C
US/CA model F4A F6A
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 22 (0.9) D1 —
B2 — B9 — C2 58 (2.3) D2 —
B3 — B10 — C3 — D3 —
B4 — B11 55 (2.2) D4 —
B5 83 (3.3) B12 48 (1.9)
B6 136 (5.4)
B7 —
B12
B6
B5
C/L
B5
B11
B11
C1
C2
