OUTBOARD MOTOR DIMENSIONS

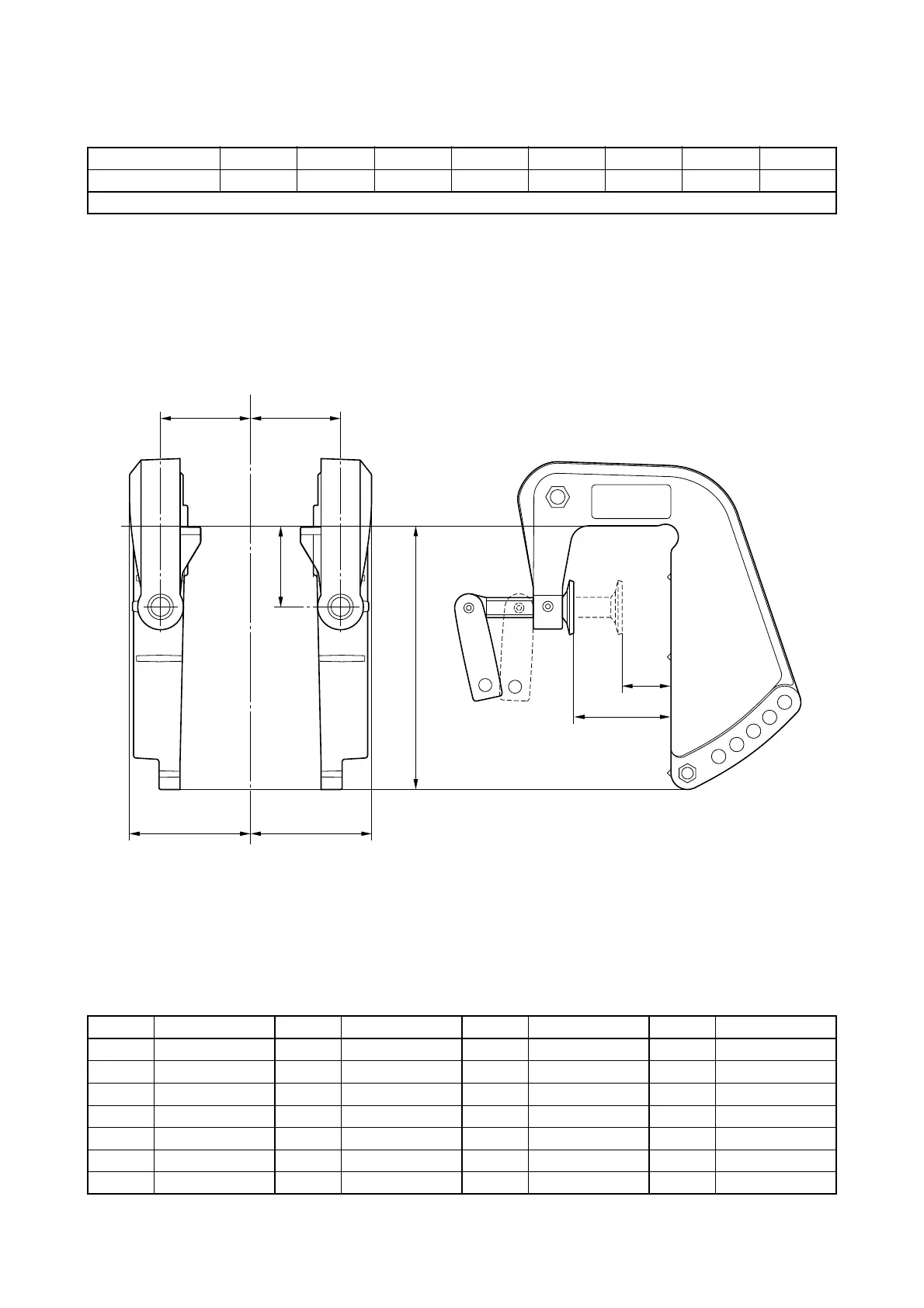

CLAMP BRACKET DIMENSIONS
Global model 6C 8C
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 22 (0.9) D1 —
B2 — B9 — C2 55 (2.2) D2 —
B3 — B10 — C3 — D3 —
B4 — B11 56 (2.2) D4 —
B5 75 (3.0) B12 50 (2.0)
B6 164.3 (6.5)
B7 —
C/L
B11
B11
B5 B5
B12
B6
C1
C2
