Yamaha F40GET - Page 46

1-38
OUTBOARD MOTOR DIMENSIONS

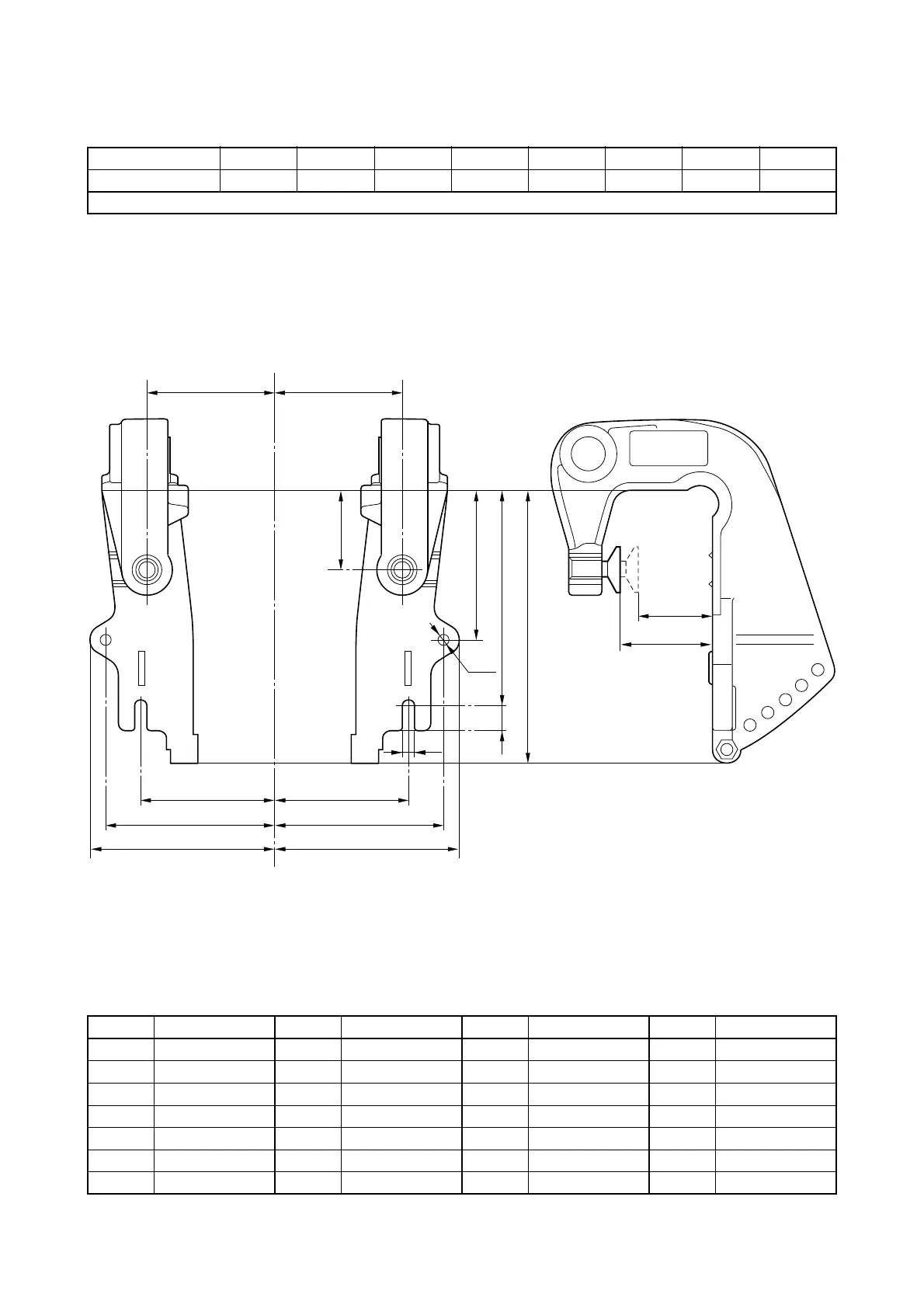

CLAMP BRACKET DIMENSIONS
Global model E/25B 25X E/30H EK25B EK25C
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 89 (3.5) B8 — C1 35 (1.4) D1 8.5 (0.33)
B2 140 (5.5) B9 — C2 65 (2.6) D2 15 (0.59)
B3 112.5 (4.4) B10 — C3 — D3 —
B4 96.5 (3.8) B11 85 (3.3) D4 —
B5 122.5 (4.8) B12 51 (2.0)
B6 176 (6.9)
B7 —
B11
C/L
B3
B1
B5
C2
B2
B12
B4
D2
B6
C1
D1
B1
1
B3
B1
B5
D1
