1-39
OUTBOARD MOTOR DIMENSIONS

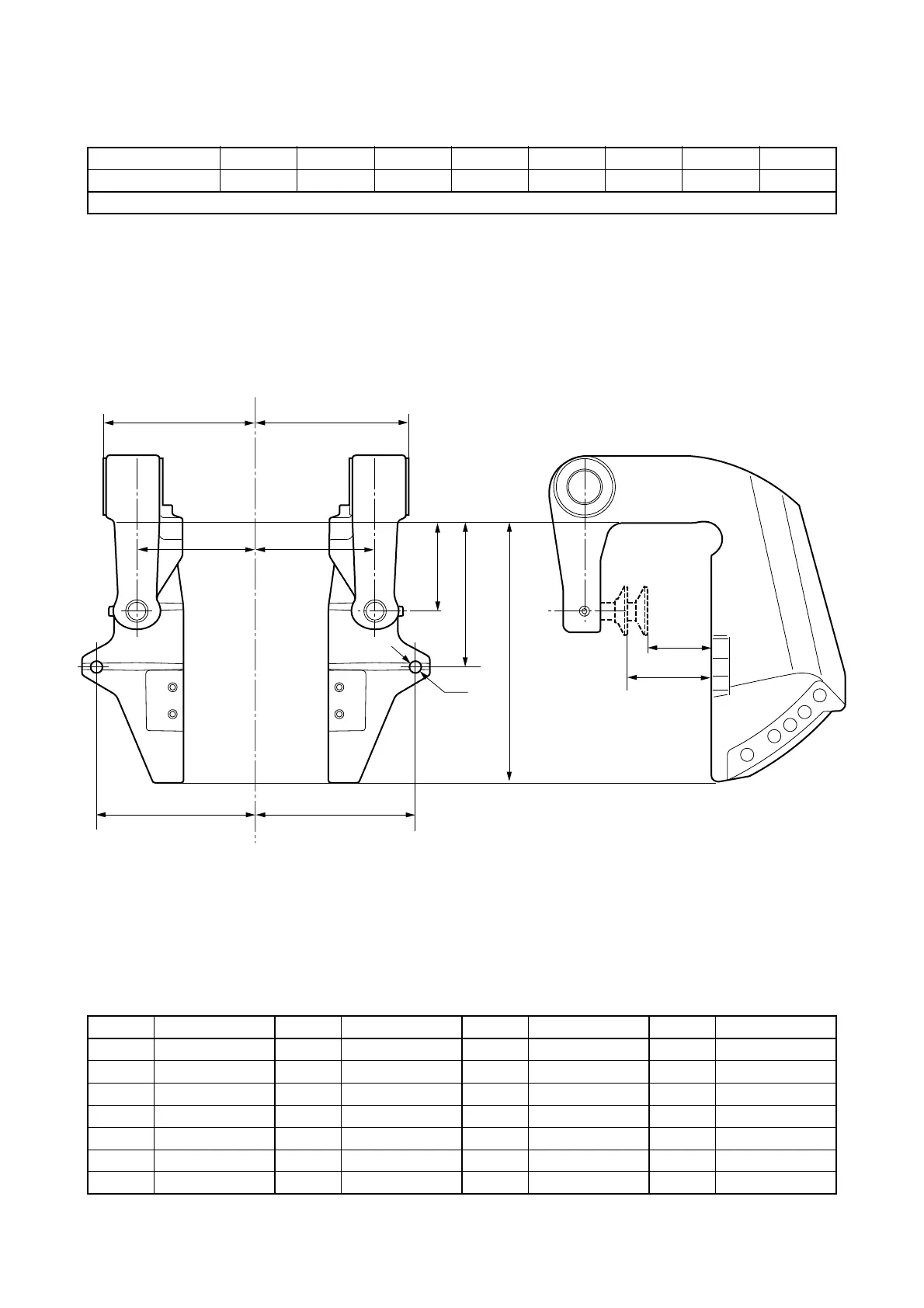

CLAMP BRACKET DIMENSIONS
Global model 20D 25N
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 — B8 — C1 25 (1.0) D1 8.3 (0.32)
B2 97.5 (3.8) B9 — C2 65 (2.6) D2 —
B3 114.5 (4.5) B10 — C3 — D3 —
B4 — B11 87.5 (3.4) D4 —
B5 122.5 (4.8) B12 84 (3.3)
B6 175 (6.9)
B7 —
B5
C/L
B5
B11
B11
B2
B3
B3
B12
C1
C2
D1
B6
