OUTBOARD MOTOR DIMENSIONS

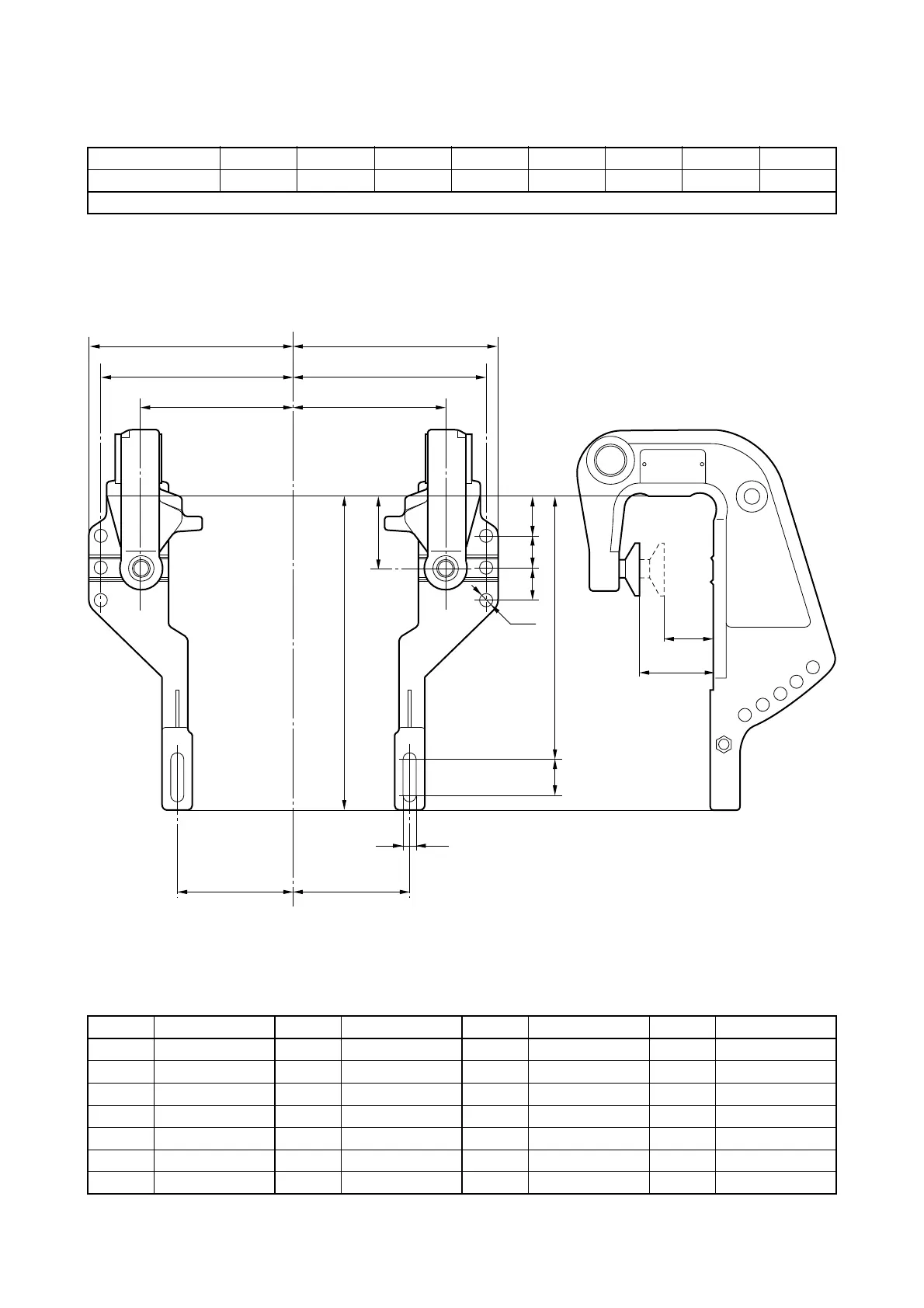

CLAMP BRACKET DIMENSIONS
Global model 30D 40V 50H
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 62.5 (2.5) B8 — C1 30 (1.2) D1 10.5 (0.41)
B2 208 (8.2) B9 25 (0.98) C2 66 (2.6) D2 26 (1.0)
B3 121.5 (4.8) B10 — C3 — D3 —
B4 32 (1.3) B11 90.5 (3.6) D4 —
B5 131.5 (5.2) B12 57 (2.2)
B6 245 (9.6)
B7 —
B3
B1
1
B5
C/L
B6
B12
D2
B2
B4
B9
B9
D1
D1
B1
B3
B1
1
B5
B1
C1
C2
