1-46
OUTBOARD MOTOR DIMENSIONS

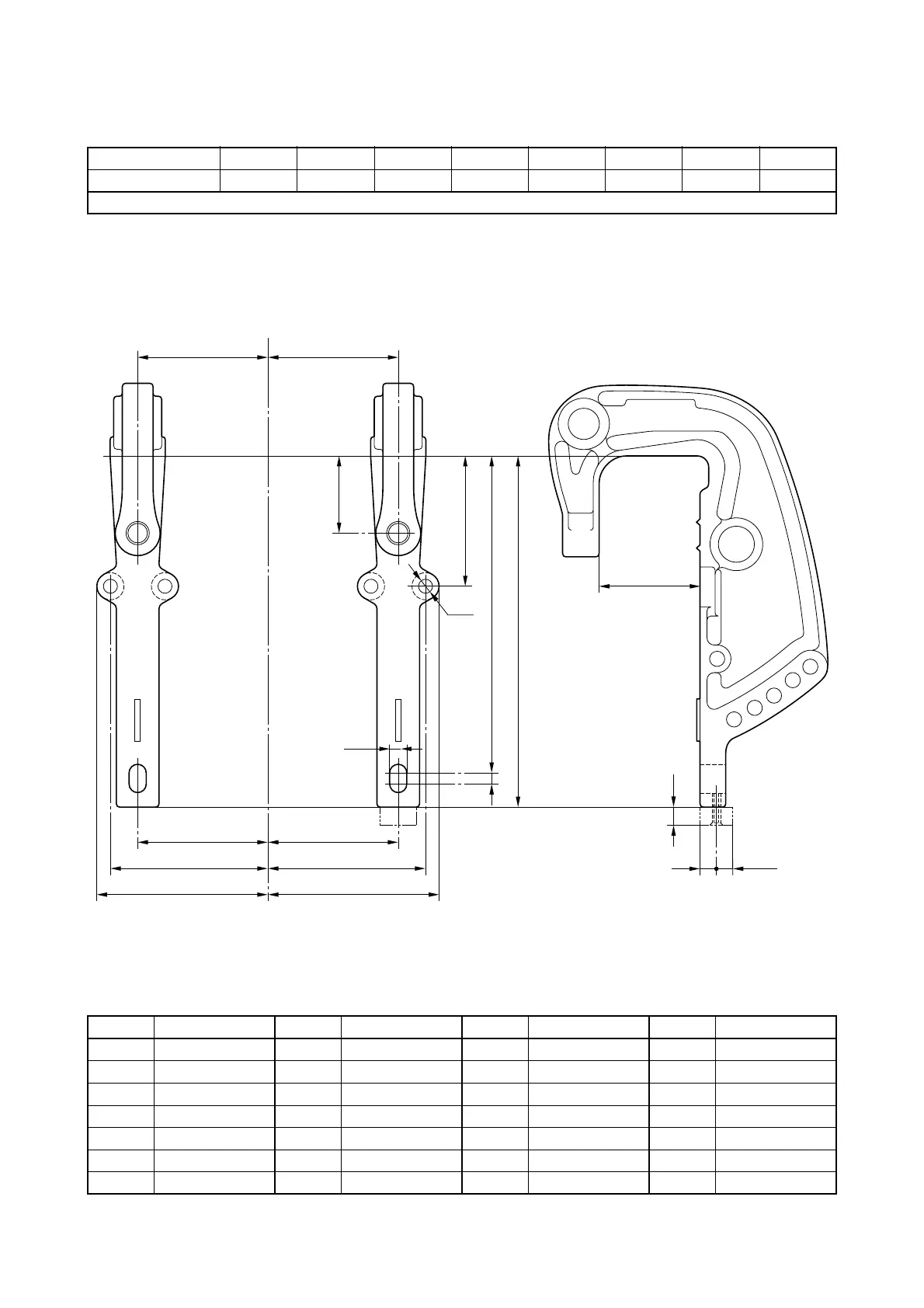

CLAMP BRACKET DIMENSIONS
Global model E48C E55C
US/CA model
Manual tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 96 (3.8) B8 95 (3.7) C1 — AN1 14 (0.55)
B2 230 (9.1) B9 — C2 — AN2 12 (0.47)
B3 119 (4.7) B10 — C3 73 (2.9)
B4 — B11 96 (3.8) D1 12 (0.47)
B5 129 (5.1) B12 57 (2.2) D2 8 (0.31)
B6 254 (10.0) D3 10.5 (0.41)
B7 — D4 —
B11
C/L
B3
B1
B5
B11
B2 B6
B8
B12
D3
B3
B1
B5
D2
D1
C3
AN1
AN2
