1-52
OUTBOARD MOTOR DIMENSIONS

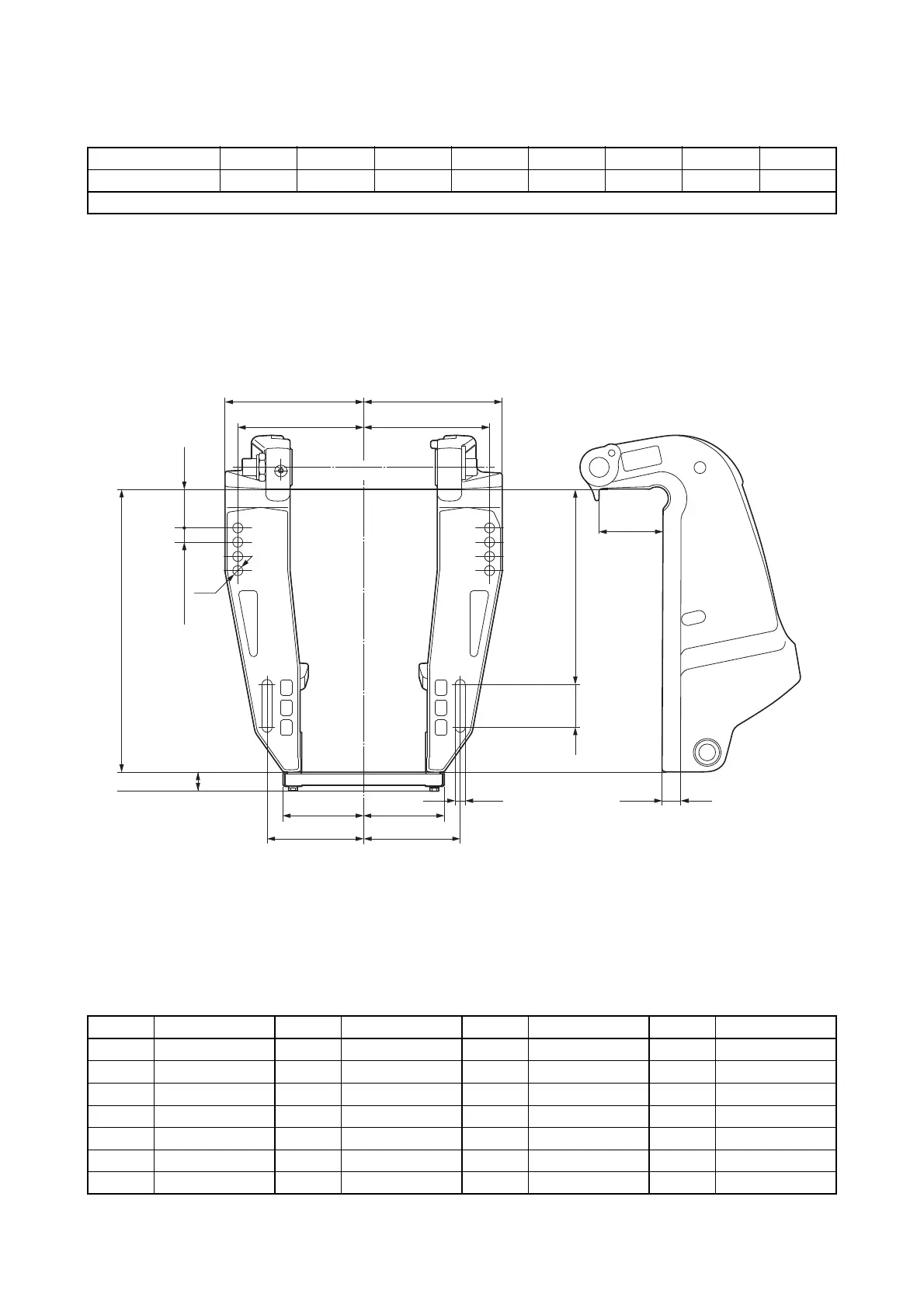

CLAMP BRACKET DIMENSIONS
Global model F175A F/FL200F F/FL200G
US/CA/ANZ model F175A F/LF200B F/LF200CA
PTT
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 — C1 — AN1 25 (1.0)
B2 254 (10.0) B9 18.5 (0.73) C2 — AN2 102 (4.0)
B3 163.5 (6.4) B10 — C3 82 (3.2)
B4 50.8 (2.0) B11 — D1 13 (0.51)
B5 180 (7.1) B12 — D2 55.5 (2.2)
B6 367 (14.4) B13 24 (0.94) D3 —
B7 — D4 —
C/L
B5 B5
B3 B3
D1
B1 B1
AN2AN2
D1
D2
B2
C3
B13
B4
AN1
B6
B9
