1-51
OUTBOARD MOTOR DIMENSIONS

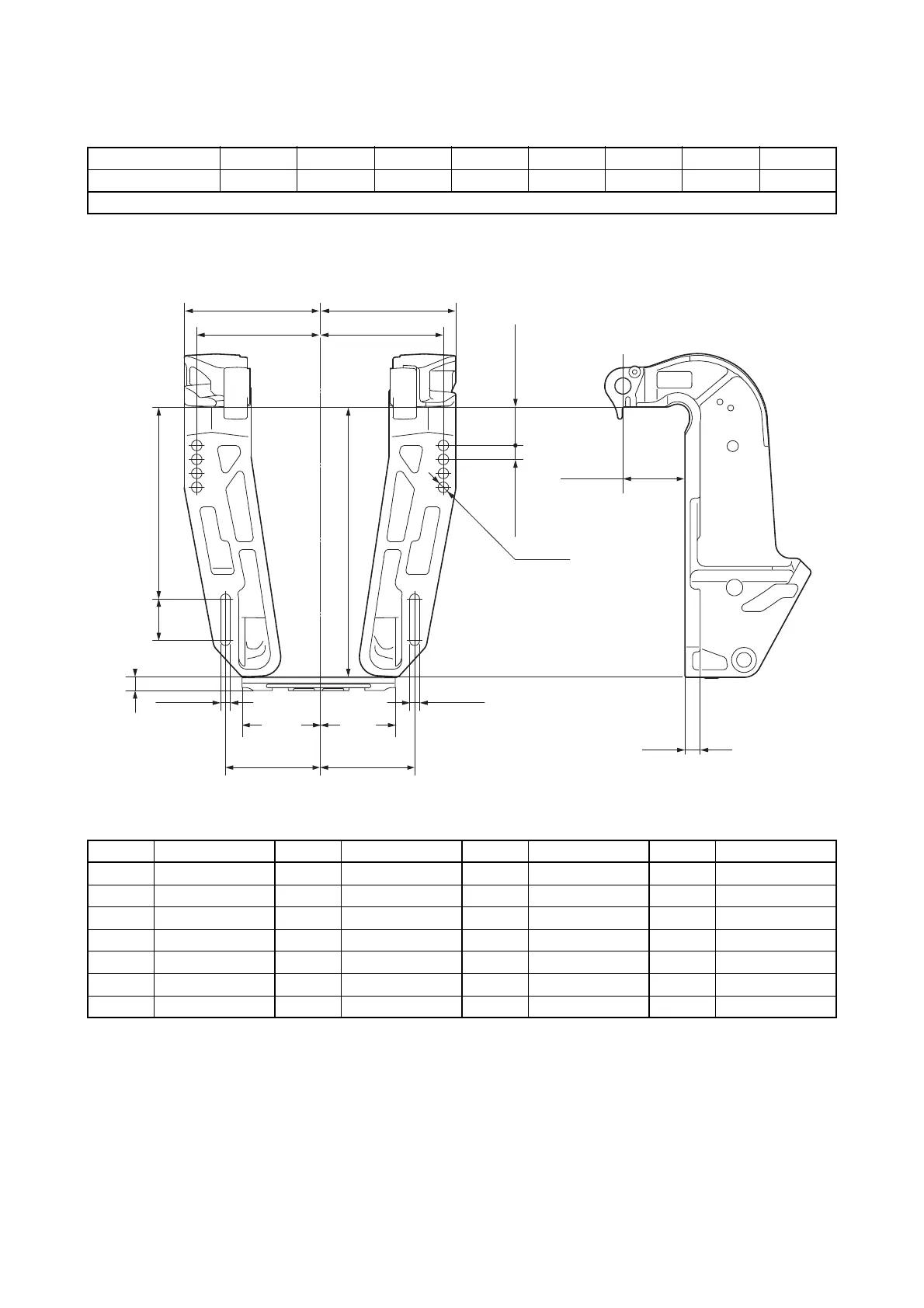

CLAMP BRACKET DIMENSIONS
Global model F/FL115B
US/CA/ANZ model F/LF115B
PTT
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 — C1 — AN1 17 (0.7)
B2 254 (10.0) B9 18.5 (0.73) C2 — AN2 101.5 (4.0)
B3 163.5 (6.4) B10 — C3 82 (3.2)
B4 50.8 (2.0) B11 — D1 13 (0.51)
B5 180 (7.1) B12 — D2 55.5 (2.2)
B6 357.2 (14.1) B13 20 (0.79) D3 —
B7 — D4 —
D2
AN1
B2
B5B5
B3 B3
C3
D1
B1
AN2AN2
B1
D1
D1
B9 B4
B6
C/L
B13
