Yamaha F40GET - Page 58

1-50
OUTBOARD MOTOR DIMENSIONS

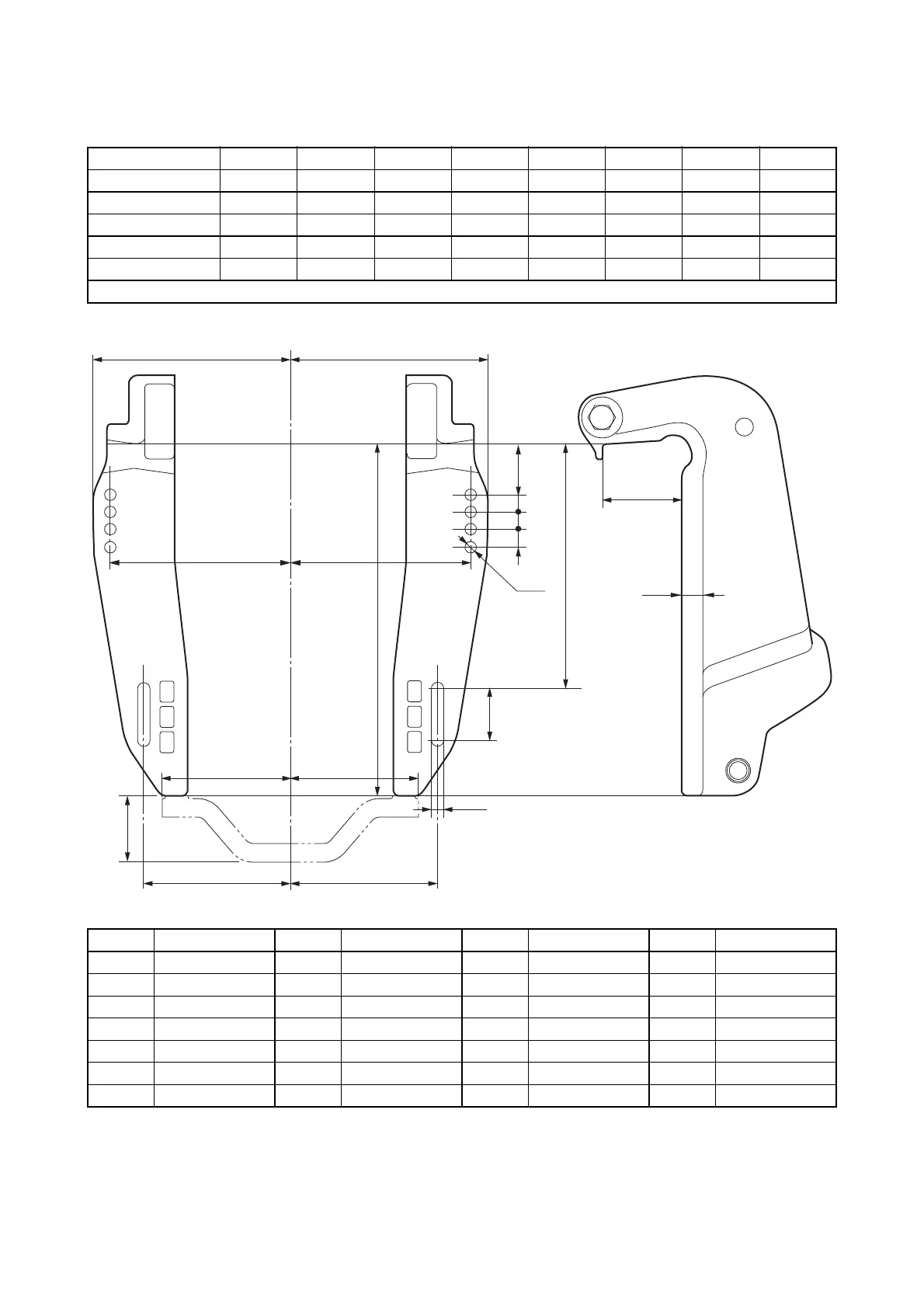

CLAMP BRACKET DIMENSIONS
Global model E115A 115B 115C 130B 140B L/150A 150G Z150Q
US/CA model VZ150
Global model L/200A F75C F95A F100B
F/FL115A
US/CA model F/LF115A
Global model F/FL150A F/FL150B F225C
US/CA/ANZ model F/LF150A
PTT & Hydro tilt
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 — C1 — AN1 52 (2.0)
B2 254 (10.0) B9 18.5 (0.73) C2 — AN2 102 (4.0)
B3 163.5 (6.4) B10 — C3 82 (3.2)
B4 50.8 (2.0) B11 — D1 13 (0.51)
B5 180 (7.1) B12 — D2 55.5 (2.2)
B6 367 (14.4) B13 24 (0.94) D3 —
B7 — D4 —
B13
B5
C/L
B3B3
B6
B1
B2
D1
C3
D1
D2
B4
B9
B9B9
B5
B1
AN1
AN2 AN2
