1-54
OUTBOARD MOTOR DIMENSIONS

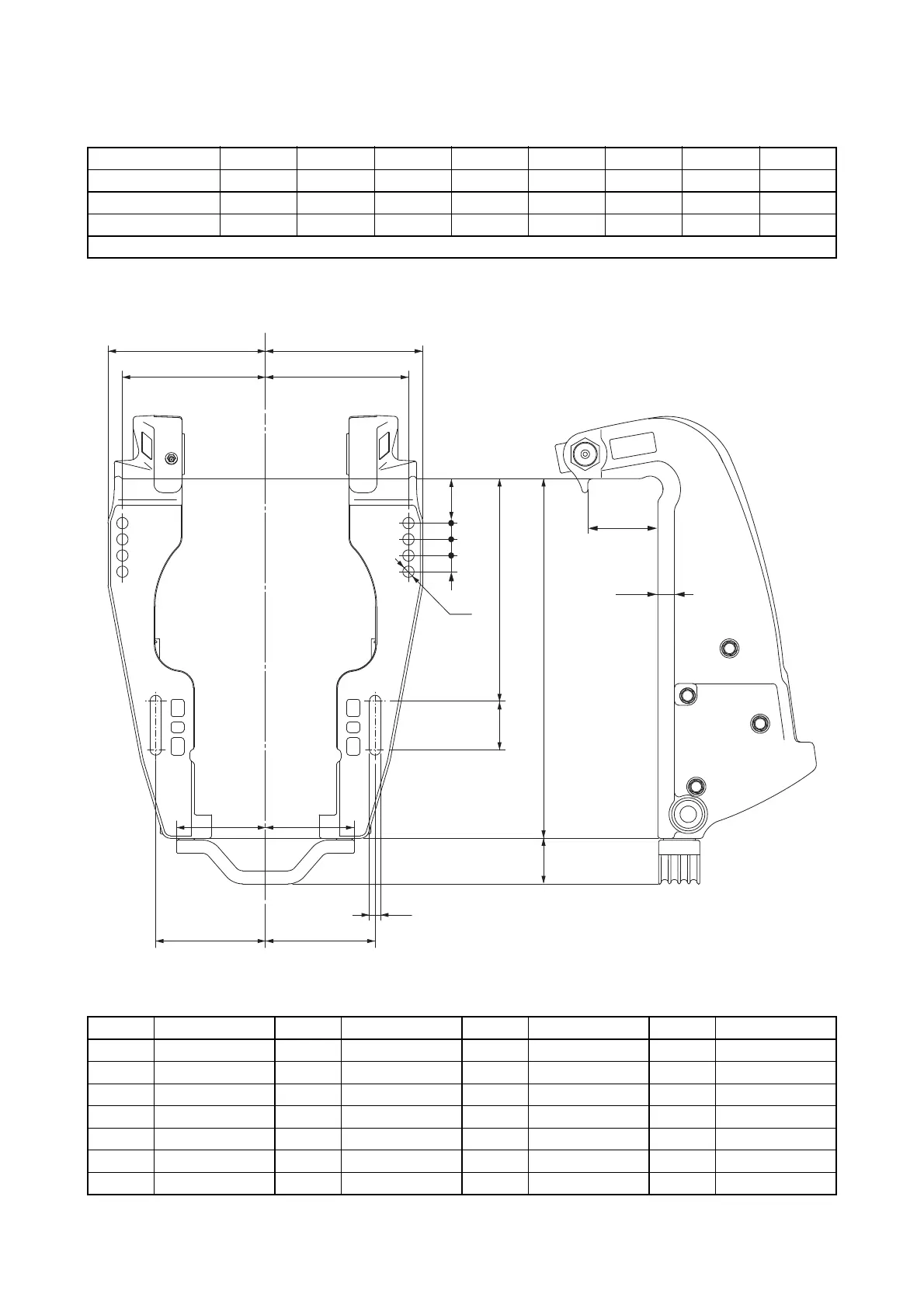

CLAMP BRACKET DIMENSIONS
Global model L/250G F/FL200B F/FL200C F/FL225B F/FL250A F/FL250G F/FL225F F/FL250D
US/CA/ANZ model F/LF200A F/LF225A F/LF250A F/LF225CA F/LF250CA
Global model F/FL300B
US/CA/ANZ model F/LF300CA
PTT
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 — C1 — AN1 52 (2.0)
B2 254 (10.0) B9 18.5 (0.7) C2 — AN2 102 (4.0)
B3 163.5 (6.4) B10 — C3 79 (3.1)
B4 50.8 (2.0) B11 — D1 13 (0.5)
B5 180 (7.1) B12 — D2 55.5 (2.2)
B6 411 (16.2) B13 20 (0.79) D3 —
B7 — D4 —
C/L
B5 B5
B3 B3
B1
AN2 AN2
B1
D1
C3
B13
B4
D1
B9B9B9
B2D2
B6AN1
