1-55
OUTBOARD MOTOR DIMENSIONS

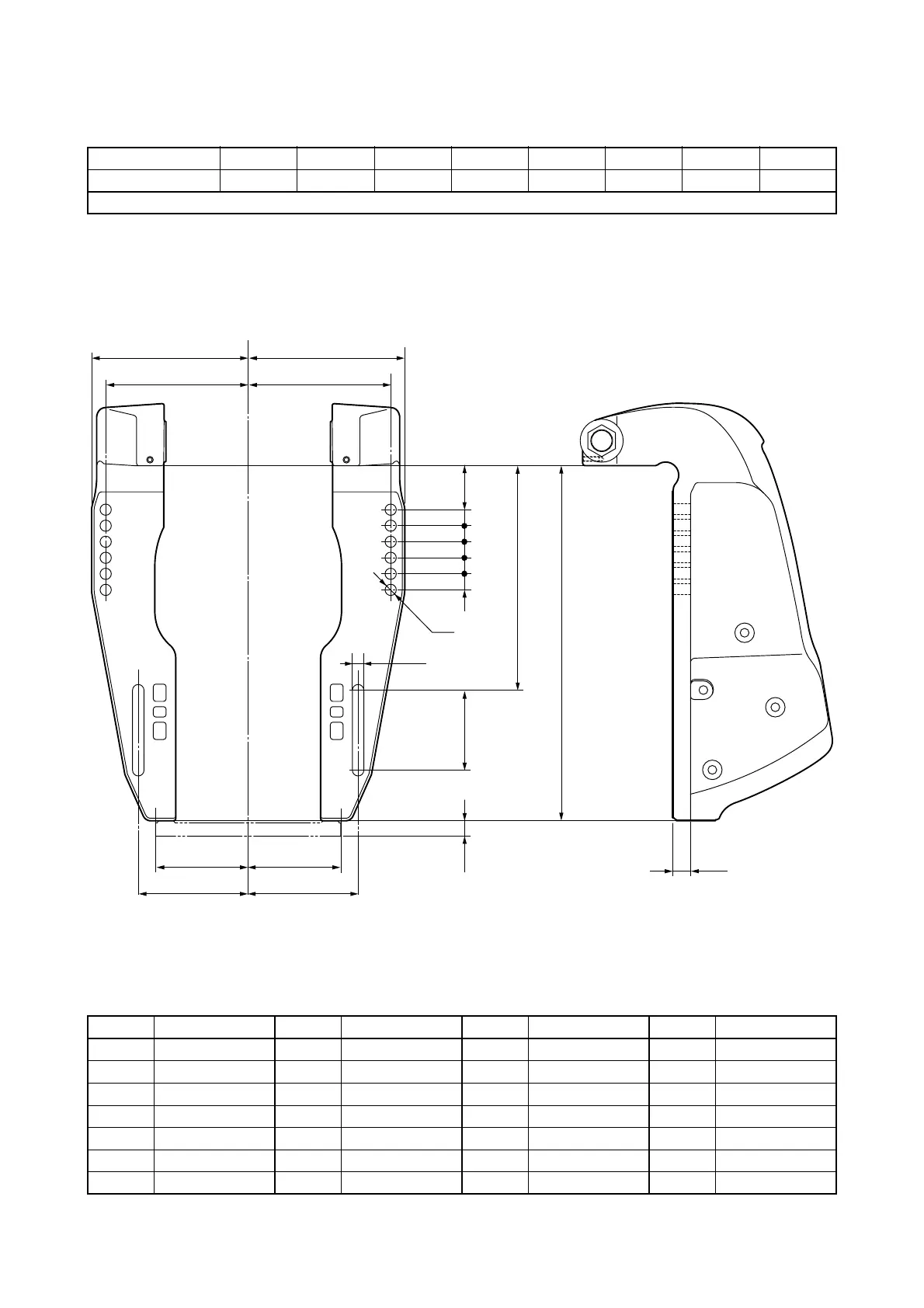

CLAMP BRACKET DIMENSIONS
Global model F/FL350A
US/CA/ANZ model F/LF350CB
PTT
Symbol mm (in.) Symbol mm (in.) Symbol mm (in.) Symbol mm (in.)
B1 125.4 (4.9) B8 — C1 — AN1 19 (0.75)
B2 254 (10.0) B9 18.5 (0.73) C2 — AN2 102 (4.0)
B3 163.5 (6.4) B10 — C3 —
B4 50.8 (2.0) B11 — D1 13 (0.51)
B5 180 (7.1) B12 — D2 92.6 (3.6)
B6 406 (16.0) B13 21 (0.83) D3 —
B7 — D4 —
B5
B3
B5
B3
B13
B2
B4
D1
B1
B1
C/L
B9
AN2
AN2
D2
AN1
B6
D1
B9 B9 B9 B9
