Yamaha F6C - Fuel Hose; Fuel System; Hose Routing

6-1
FUEL
Fuel system
Hose routing

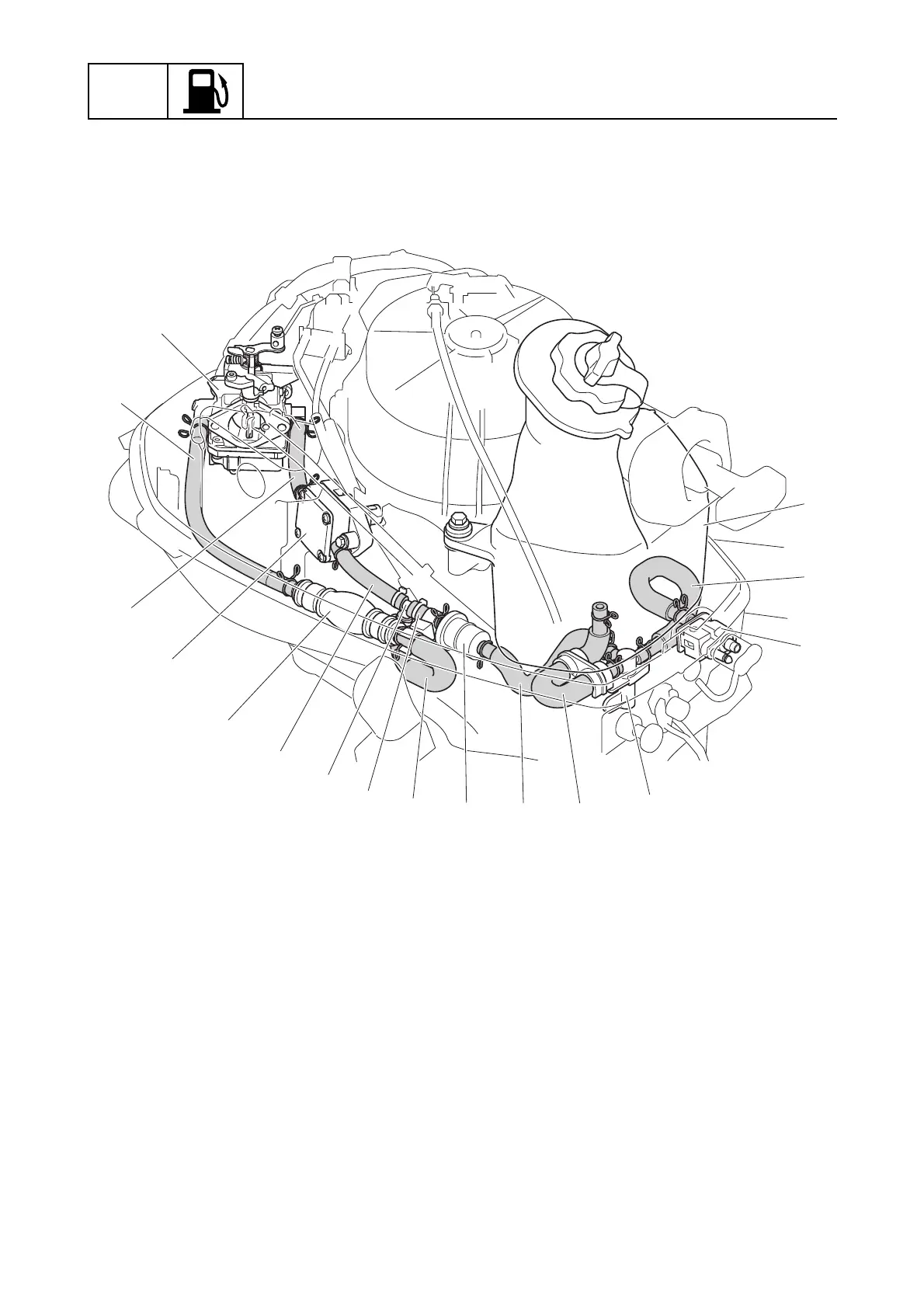

Fuel hose
a Fuel hose (fuel tank to fuel cock)
b Fuel hose (fuel cock to fuel strainer)
c Fuel hose (fuel strainer to joint)
d Fuel hose (joint to fuel pump)
e Fuel hose (fuel pump to carburetor)
f Fuel hose (joint to primer pump)
g Fuel hose (primer pump to carburetor)
h Fuel hose (fuel joint to fuel cock)
a Fuel tank
b Fuel cock
c Fuel strainer
d Joint
e Fuel pump
f Carburetor
g Primer pump
h Fuel joint
ab
c
d
e
f
g
h
e
f
g
a
h
b
c
d
