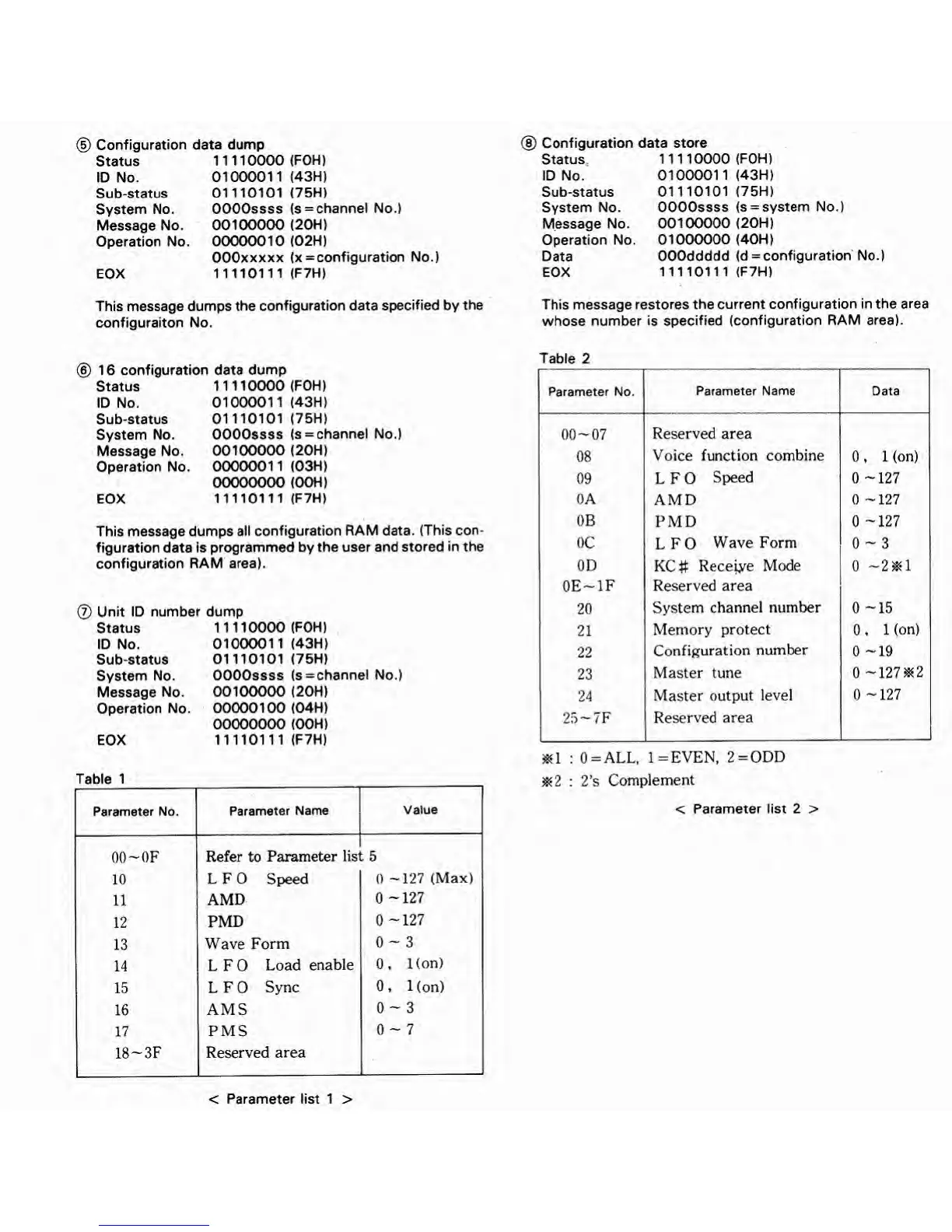

Yamaha FB-01 - Page 14

® Configuration
Status
ID No.
Sub-status
System No.
Message No.
Operation No.
EOX
data dump
11110000 (FOH)
01000011 (43H)
01110101 (75H)
OOOOssss (s = channel No.)
00100000 (20H)
00000010 (02H)
OOOxxxxx (x = configuration No.)
11110111 (F7H)
® Configuration
Status,
ID No.
Sub-status
System No.
Message No.
Operation No.
Data
EOX
data store
11110000 (FOH)
01000011 (43H)
01110101 (75H)
OOOOssss (s = system No.)
00100000 (20H)
01000000 (40H)
OOOddddd (d = configuration No.)
11110111 (F7H)
This message dumps the configuration data specified by the
configuraiton No.
This message restores the current configuration in the area
whose number is specified (configuration RAM area).
16 configuration data dump
Status 11110000 (FOH)
ID No. 01000011 (43H)
Sub-status 01110101 (75H)
System No.
Message No.
Operation No.
EOX
OOOOssss (s = channel No.)
00100000 (20H)
00000011 (03H)
00000000 (OOH)
11110111 (F7H)
This message dumps all configuration RAM data. (This con¬
figuration data is programmed by the user and stored in the
configuration RAM area).
© Unit ID number dump
Status 11110000 (FOH)
ID No. 01000011 (43H)
Sub-status 01110101 (75H)
System No.
Message No.
Operation No.
EOX
OOOOssss (s = channel No.)
00100000 (20H)
00000100 (04H)
00000000 (OOH)
11110111 (F7H)
Table 1
Parameter No.
Parameter Name
Value
OO-OF
Refer to Parameter list
: 5
10
L F 0 Speed 0 -127 (Max)
11
AMD
0 -127
12
PMD
0 -127
13
Wave Form
0-3
14
L F 0 Load enable
0, Hon)
15
L F 0 Sync
0, 1 (on)
16
AMS
0-3
17 PMS
0-7
18-3F
Reserved area
Table 2
Parameter No.
Parameter Name Data
00-07
Reserved area
08
Voice function combine
0, 1 (on)
09
L F 0 Speed 0 -127
OA
AMD
0 -127
OB
PMD 0 -127
OC LFO Wave Form 0-3
OD KC# Receiye Mode 0 ~2*1
0E-1F Reserved area
20
System channel number
0-15
21
Memory protect
0, 1 (on)
22
Configuration number
0 -19
23
Master tune 0 -127*2
24
Master output level
0 -127
25-7F Reserved area
*1 : 0 = ALL, 1 = EVEN, 2=0DD
&-2 : 2’s Complement
< Parameter list 2 >
< Parameter list 1 >
